REMOVAL AND INSTALLATION


Post-installation Operation
  • Front Fog Light Aiming Adjustment (Refer to ).

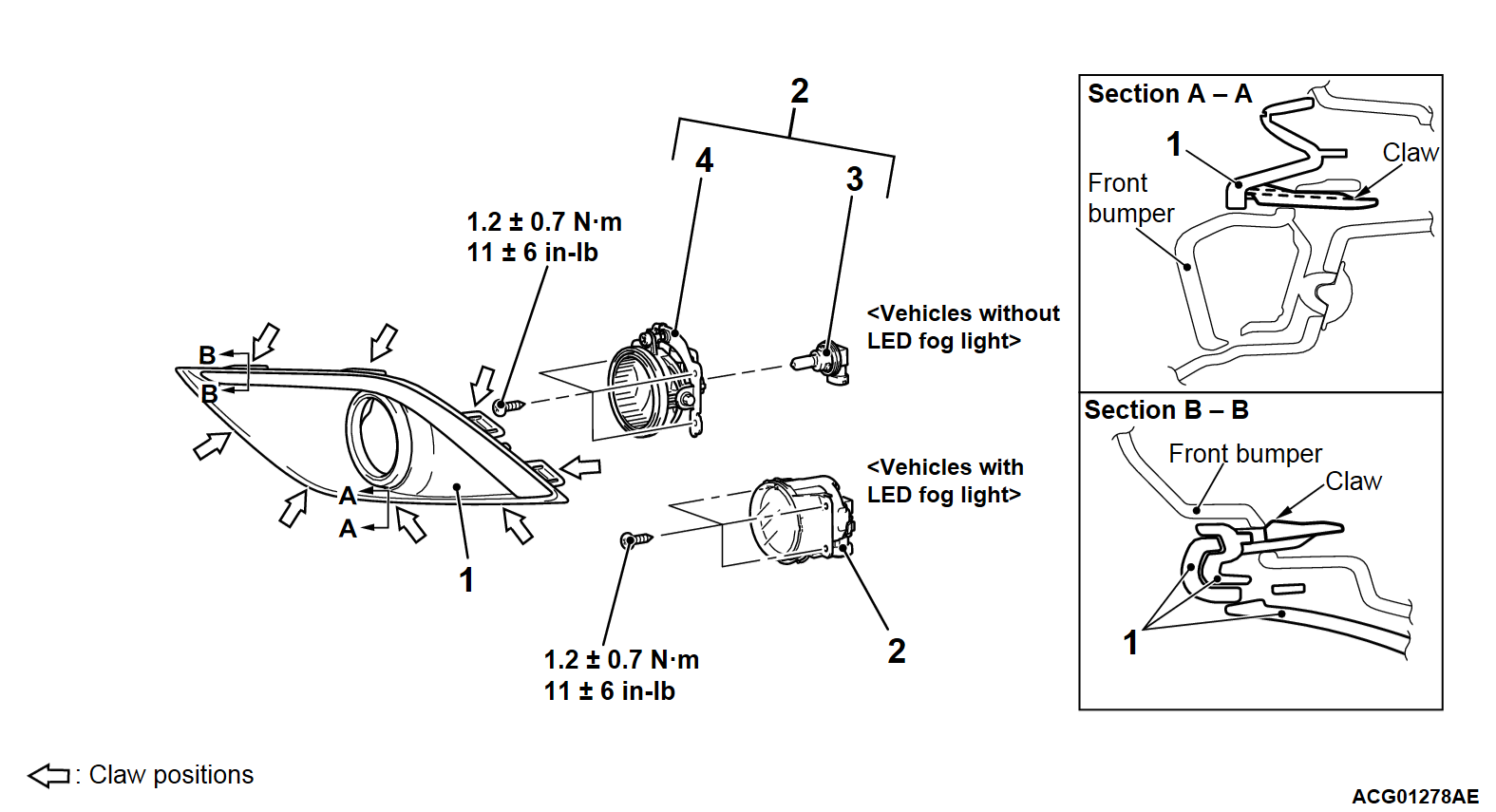

Removal steps
1.Front fog light bezel
>>A<<2.Front fog light assembly
<<A>>3.Front fog light bulb <Vehicles without LED fog light>
4.Front fog light unit <Vehicles without LED fog light>


REMOVAL SERVICE POINT


<<A>> FRONT FOG LIGHT BULB REMOVAL
cautionDo not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.



INSTALLATION SERVICE POINT


>>A<< FRONT FOG LIGHT ASSEMBLY INSTALLATION

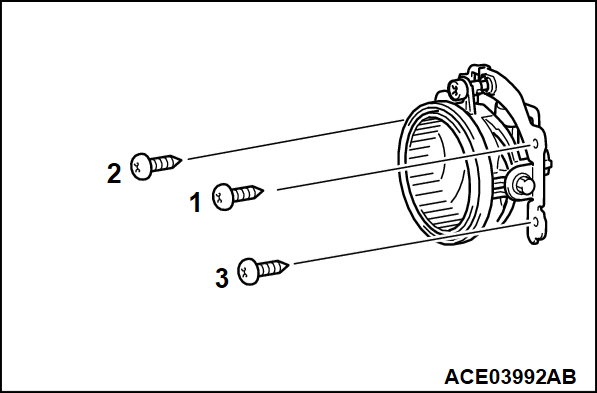

Tighten the mounting screws to the specified torque in the order shown.
Tightening torque: 1.2 ± 0.7 N·m (11 ± 6 in-lb)
