HOW TO SET BY OPERATING THE SCAN TOOL (M.U.T.-III)
| caution | - If the combination meter needs to be replaced, the current driving distance and elapsed days must be entered into the meter after the replacement in order to be used for service reminder function. Therefore, read "Integrated mileage for reminder," "Integrated days for reminder," "Mileage until Extra reminder," "Months until Extra reminder," and "Current schedule" from the meter before the replacement using the special function of the scan tool (M.U.T.-III), and note them. If "Integrated mileage for reminder" or "Integrated days for reminder" cannot be read from the meter using the scan tool (M.U.T.-III), use the following method.
- As for the driving distance for check warning, use the driving distance displayed on the multi information display.
- As for the elapsed days for check warning, calculate the number of elapsed days from the delivery date to the customer (service reminder function start date) and current date.
- After the service reminder function has started, when the elapsed days for check warning is reset for the vehicle whose battery is removed for a long period (15 days or more), calculate the elapsed days from the delivery date to the customer (service reminder function start date) and the current date, and then input it.
|
Using scan tool (M.U.T.-III), the following service reminder functions can be set. Before setting, check the current status (schedule, elapsed distance and elapsed days).
- Extra reminder setting
- Extra reminder cancel
- Periodic reminder schedule set
- Integrated value adjustment
- Optional INT schedule setting
HOW TO OPERATE THE SCAN TOOL (M.U.T.-III)
| caution | Before setting the service reminder, if elapsed days are not calculated, turn the ignition switch to the OFF position. Then press the meter information switch. Then, press the meter information switch for 1.2 second or more to make the service reminder indicator flash. While the service reminder indicator is flashing, press the meter information switch for less then 1.2 second to start the measurement. |
1. Connect the scan tool (M.U.T.-III) to the data link connector.
2. Start the scan tool system on the PC and turn the ignition switch to the "ON" position.
3. Select "Meter" on the "System Select" screen, and press the "OK" button.
4. Select "Special Function" on the next screen.
5. Select "Service Reminder" on the "Special function" screen.

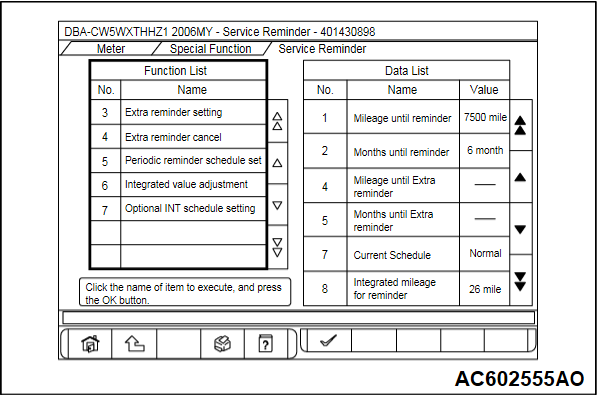

6. Select the function to be executed from "Function List."- 3 Extra reminder setting (Refer to
.) - 4 Extra reminder cancel (Refer to .)
- 5 Periodic reminder schedule set (Refer to .)
- 6 Integrated value adjustment (Refer to .)
- 7 Optional INT schedule setting (Refer to .)
1. EXTRA REMINDER SETTING
In addition to the current warning period, the temporary service reminder warning period can be set.
| note | Prior to this Extra reminder setting, execute the Extra reminder cancel and the Periodic reminder schedule set (including the case that it is not necessary to change the schedule). |

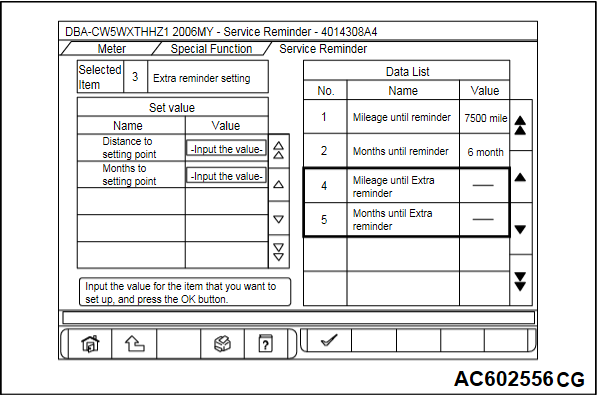

1. On the "Service Reminder" screen, select "3 Extra reminder setting."| note | The screen indicates that the temporary warning period (Nos. 4 and 5 in the data list) has not been set. |

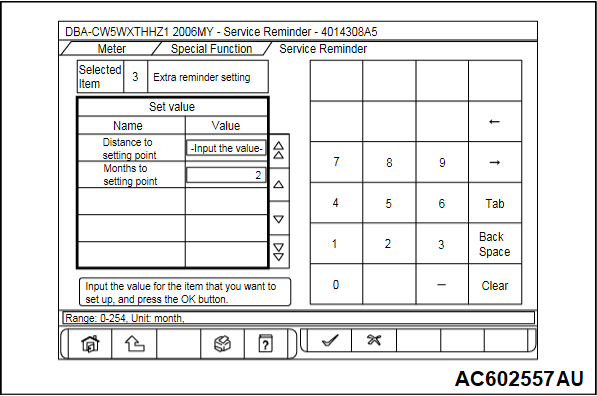

2. Set the temporary warning period (distance or month) of the "Set value."| note | Either input of distance or month can execute the setting. |
3. Press the "OK" button.

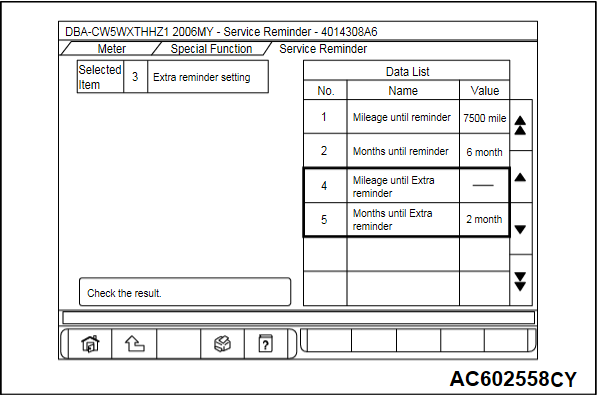

4. The temporary warning period is set.| note | The screen indicates that "2 month" has been added to the temporary warning period (No. 5 in the data list). (The distance of No. 4 in the data list has not been set.) |
2. EXTRA REMINDER CANCEL
The temporary service reminder warning period which has been set can be cancelled.
1. On the "Service Reminder" screen, select "4 Extra reminder cancel."| note | The screen indicates that "3000 km" and "2 month" have been set to the temporary warning period (Nos. 4 and 5 in the data list). |
2. Press the "OK" button.
3. The temporary warning period is cancelled.| note | The screen indicates that the temporary warning period (Nos. 4 and 5 in the data list) has been cancelled. |
3. PERIODIC REMINDER SCHEDULE SET
The service reminder schedule can be changed.
| note | In addition to the operation of scan tool (M.U.T.-III), the schedule can be changed by operating the meter information switch on the combination meter. Refer to . |

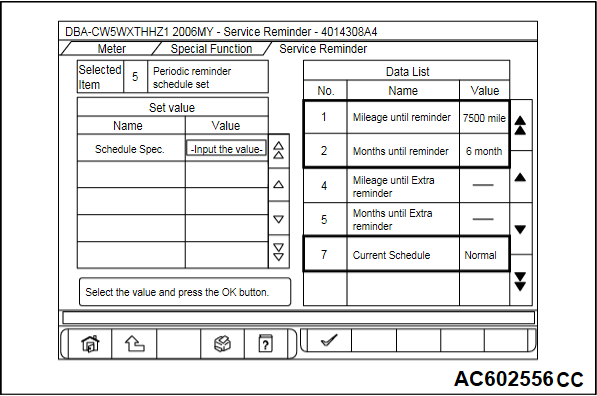

1. On the "Service Reminder" screen, select "5 Periodic reminder schedule set."| note | The screen indicates that the current schedule (No. 7 in the data list) has been set to "Normal." |

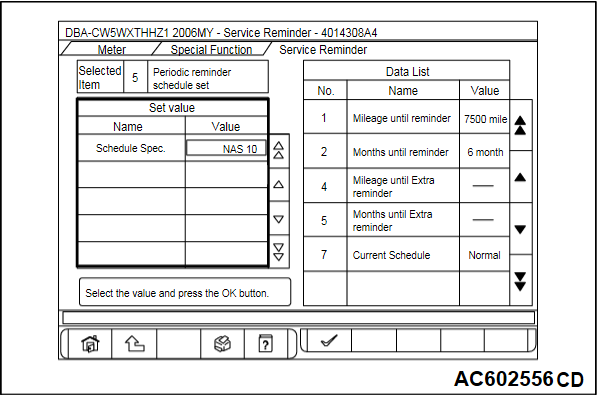

2. Set the schedule to be changed from "Set value."
3. Press the "OK" button.

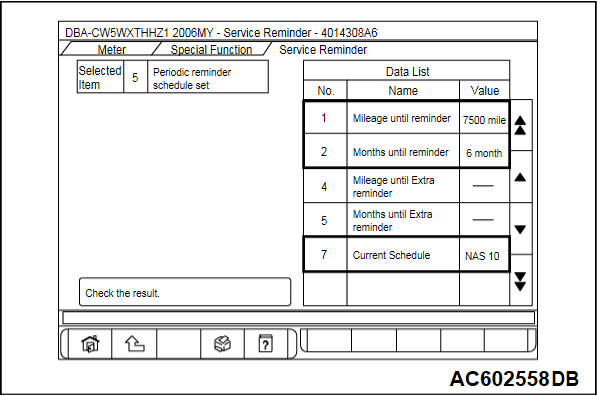

4. The schedule is changed.| note | The screen indicates that the current schedule (No. 7 in the data list) has been changed to "NAS 10." |
4. INTEGRATED VALUE ADJUSTMENT
At the combination meter replacement or for the vehicle with its battery being removed for a long period (15 days or more), this adjustment is used to reset the mileage and elapsed days for check warning.

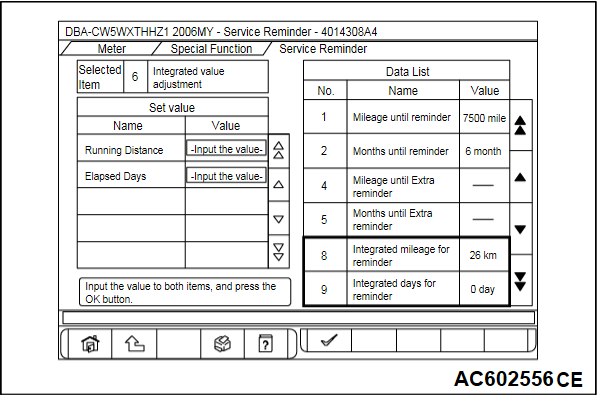

1. On the "Service Reminder" screen, select "6 Integrated value adjustment."| note | The screen indicates that the current mileage and elapsed days (Nos. 8 and 9 in the data list) are "26 mile" and "0 day." |

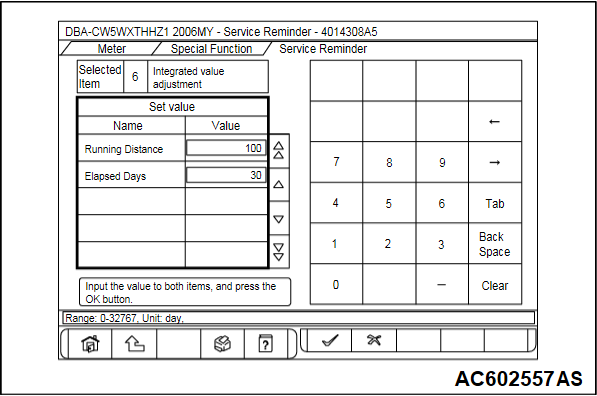

2. To "Set value," input the mileage and elapsed days to be reset.| note | Always input both the mileage and elapsed days. |
3. Press the "OK" button.

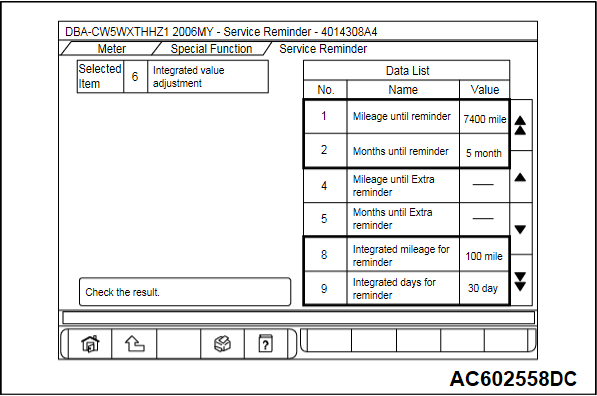

4. The mileage and elapsed days are changed. The combination meter automatically recalculates the distance and days to the nearest next check from the settings of mileage and elapsed days for check warning, and then displays them in "Data List."| note | - The screen indicates that the current mileage and elapsed days (Nos. 8 and 9 in the data list) have been changed to "100 mile" and "30 day."
- Set the elapsed days for check warning to "0 day" by the above resetting method, thereby the timer is reset indirectly.
|
| note | After the Integrated value adjustment, execute the Extra reminder cancel and the Periodic reminder schedule set (including the case that it is not necessary to change the schedule). |
5. OPTIONAL INT SCHEDULE SETTING
| caution | If the current schedule is set to the "Optional INT" by executing "3. Periodic reminder schedule set," the "set value" cannot be input. Therefore, set it to the schedule other than the "Optional INT" once, and then execute "5. Optional INT schedule setting." |
In addition to the existing schedule, the optional service reminder schedule can be set.

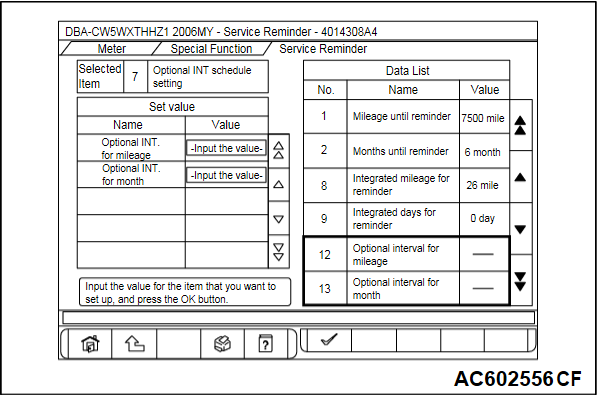

1. On the "Service Reminder" screen, select "7 Optional INT schedule setting."| note | The screen indicates that the optional schedule (Nos. 12 and 13 in the data list) has not been set. |

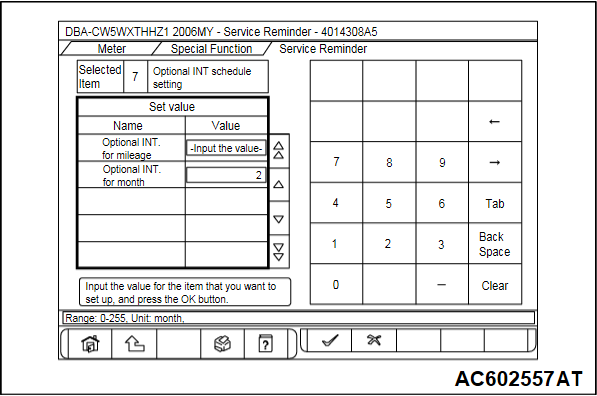

2. Set the optional schedule (distance or month) of the "Set value."| note | Either input of distance or month can execute the setting. |
3. Press the "OK" button.

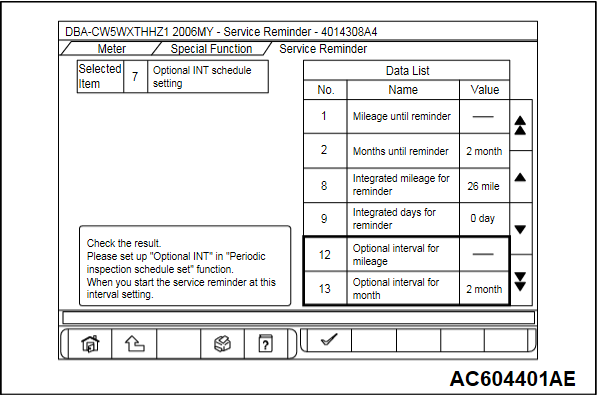

4. The optional schedule is set. The set schedule becomes effective by executing "3. Periodic reminder schedule set" and setting the schedule to "Optional INT."| note | The screen indicates that "2 month" has been added to the optional schedule (No. 13 in the data list). (The distance of No. 12 in the data list has not been set.) |
HOW TO SET BY SPECIAL OPERATION OF SWITCH
By operating the meter information switch of the combination meter, the service reminder warning cancellation and the schedule setting can be performed.
HOW TO CANCEL THE SERVICE REMINDER WARNING
| caution | - Be careful not to execute the service reminder warning cancellation by operating the switch again after erasing the service reminder warning indicator which is currently output, because the next warning period will be cancelled.
- If the next warning period is cancelled by mistake, the cancelled warning period can be restored by setting a schedule different from the current one once, and then returning it to the previous schedule.
|
1. Turn the ignition switch to the "OFF" position.
2. By operating the meter information switch, the warning period is displayed on the multi-information display.
3. Press the meter information switch once for 1.2 seconds or longer.
4. The service reminder indicator flashes.
5. While the service reminder indicator flashes, press the meter information switch once for less than 1.2 seconds.
6. The service reminder indicator is turned ON, and "CLEAR" is displayed on the odometer display for 3 seconds.
7. After "CLEAR" is displayed for 3 seconds, the warning period to the next time is displayed.
HOW TO SET THE SCHEDULE
1. Turn the ignition switch to the "OFF" position.
2. By operating the meter information switch, the warning period is displayed on the odometer.
3. Press the meter information switch once for 1.2 seconds or longer.
4. The service reminder indicator flashes.
5. While the service reminder indicator flashes, press the meter information switch for 1.2 seconds or longer and 3 times consecutively.
6. The service reminder indicator is turned ON, and the current schedule is displayed on the odometer display.
7. While the current schedule is displayed, press the meter information switch for less than 1.2 seconds and 3 times consecutively.
8. The odometer display is shifted to the schedule selection mode.
9. When the meter information switch is pressed for less than 1.2 seconds, the schedule is shifted, and when the switch is pressed for 1.2 seconds or longer, the displayed schedule is set.| note | For schedule, "JPN", "EU", "NAS", "GCC/EXP", "MMAL" and "SEVERE" can also be selected. However, the using shall be for "Normal" only. |
10. The schedule set in Step 9 is displayed for 3 seconds, and the warning period to the next time is displayed.
Schedule table
| Schedule | Contents of schedule |
| Normal | Elapsed time (month) | Every 6 elapsed months |
| Driving distance (miles) | Every 7,500 miles of driving distance |
| Driving distance (km) | Every 12,000 km of driving distance |
HOW TO INACTIVATE THE SERVICE REMINDER FUNCTION
By setting to "OFF Display" or "Function OFF" when the schedule is set, the service reminder function can be inactivated.
When "OFF Display" is selected
- Even if the service reminder screen is displayed by operating the meter information switch, "OFF" is displayed.
When "Function OFF" is selected
- Even when the check warning period is reached, the service reminder display is not displayed.
- Even with the meter information switch operation, the service reminder screen is not displayed.
