METER INFORMATION SWITCH CHECK


ON/OFF CHECK

Switch positionTester connectionSpecified condition
ON (switch pushed)3 - 6Continuity exists (2 ohms or less)
OFF (switch released)Open circuit
Switch positionTester connectionSpecified condition
ON (switch pushed)3 - 6Continuity exists (2 ohms or less)
OFF (switch released)Open circuit



ILLUMINATION CHECK

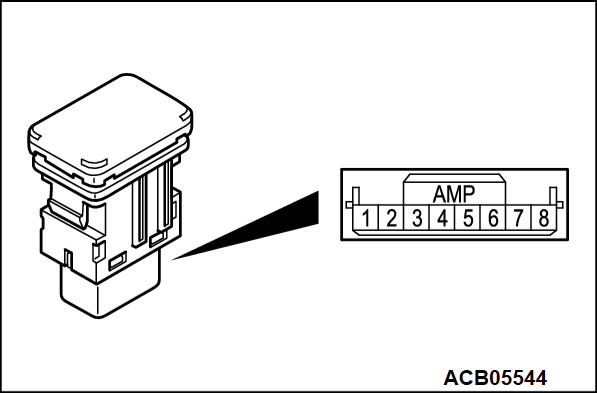

Apply the battery voltage to the connector terminal No. 4, ground the terminal No. 5, and then check that the illuminates.
