54A-DIAGNOSIS FUNCTION

DIAGNOSTIC FUNCTION

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

MB992744: Vehicle communication interface-Lite (V.C.I.-Lite)
MB992745: V.C.I.-Lite main harness A
MB992747: V.C.I.-Lite USB cable short
MB992748: V.C.I.-Lite USB cable long
MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicles Communication Interface (V.C.I.)
MB991827: M.U.T.-III USB Cable
MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

caution

To prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).

1. Ensure that the ignition switch is at the "LOCK" (OFF) position.

2. Start up the personal computer.

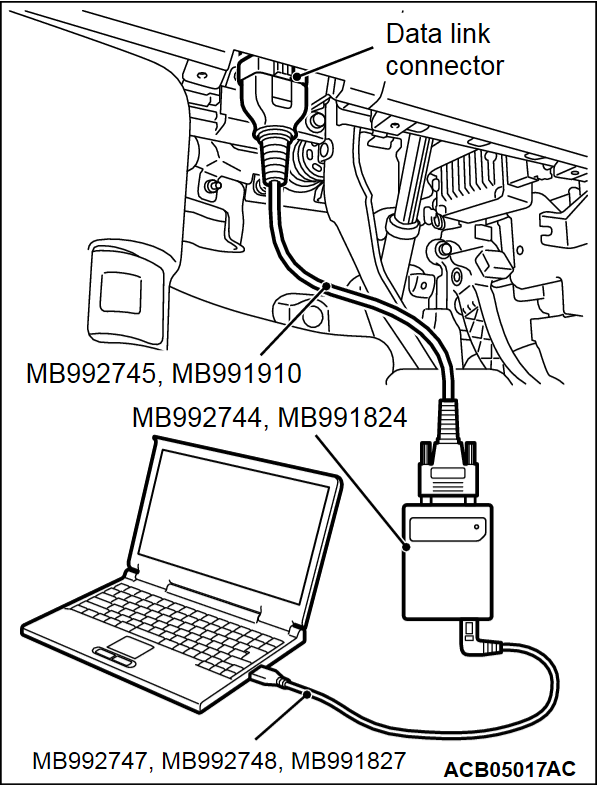

3. Connect special tool MB992747/M992748 or special tool MB991827 to special tool MB992744 or special tool MB991824 and the personal computer.

4. Connect special tool MB992745 or special tool MB991910 to special tool MB992744 or special tool MB991824.

5. Connect special tool MB992745 or special tool MB991910 to the data link connector.

note	When the special tool MB992745 is connected to the data link connector, the special tool MB992744 indicator light will be illuminated in a green color.

6. Turn the power switch of special tool MB991824 to the "ON" position. <When using the special tool MB991824>

note	When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.

7. Start the M.U.T.-III system on the personal computer.

note	Disconnecting scan tool (M.U.T.-III) is the reverse of the connecting sequence, making sure that the ignition switch is at the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES

Required Special Tools:

MB992744: Vehicle communication interface-Lite (V.C.I.-Lite)
MB992745: V.C.I.-Lite main harness A
MB992747: V.C.I.-Lite USB cable short
MB992748: V.C.I.-Lite USB cable long
MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicles Communication Interface (V.C.I.)
MB991827: M.U.T.-III USB Cable
MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

note	If the battery voltage is low, diagnostic trouble codes will not be stored. Check the battery if scan tool (M.U.T.-III) does not display.

1. Connect scan tool (M.U.T.-III) to the data link connector.

2. Turn the ignition switch to the "ON" position.

3. Select "System select" from the start-up screen.

4. Select "From 2006 MY" of "Model Year." When the "Vehicle Information" is displayed, check the contents.

5. Select an appropriate item from "System List," and press the "OK" button.

note	When the "Loading Option Setup" list is displayed, check the applicable item.

6. Select "Diagnostic Trouble Code" to read the DTC.

7. If a DTC is stored, it is shown.

8. Choose "Erase DTCs" to erase the DTC.

HOW TO DIAGNOSE THE CAN BUS LINES

Required Special Tools:

MB992744: Vehicle communication interface-Lite (V.C.I.-Lite)
MB992745: V.C.I.-Lite main harness A
MB992747: V.C.I.-Lite USB cable short
MB992748: V.C.I.-Lite USB cable long
MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicles Communication Interface (V.C.I.)
MB991827: M.U.T.-III USB Cable
MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

1. Connect scan tool (M.U.T.-III) to the data link connector.

2. Turn the ignition switch to the "ON" position.

3. Select "CAN bus diagnosis" from the start-up screen.

4. When the vehicle information is displayed, confirm that it matches the vehicle being diagnosed.

If they match, go to Step 8.
If not, go to Step 5.

5. Select the "view vehicle information" button.

6. Enter the vehicle information and select the "OK" button.

7. When the vehicle information is displayed, confirm again that it matches the vehicle being diagnosed.

If they match, go to Step 8.
If not, go to Step 5.

8. Select the "OK" button.

9. When the optional equipment screen is displayed, choose the one which the vehicle is fitted with, and then select the "OK" button.
