INSPECTION


1.
dangerNever attempt to measure the circuit resistance of the air bag modules (squib), even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental air bag deployment will result, and possible serious personal injury.
warningIf any component damage is found during the following inspection, replace the air bag module with a new one. Dispose of the old one according to the specified procedure (Refer to ).
If any malfunction is found in the following inspections, replace the air bag module with a new one.

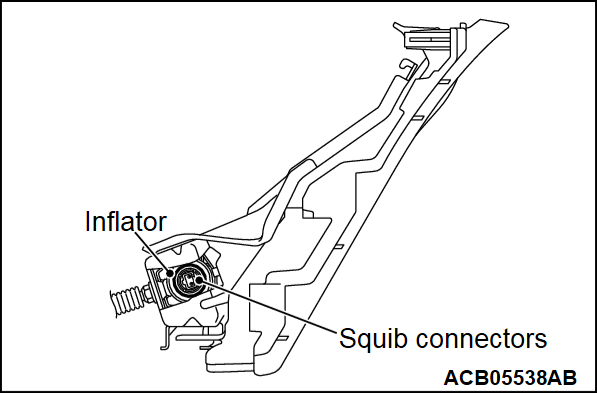

2. Check the inflator surface for cracks, dents or deformations.
3. Check the connector for damage, the terminal for deformation and the harness for binding.
