INSPECTION


SEAT BELT BUCKLE SWITCH CHECK

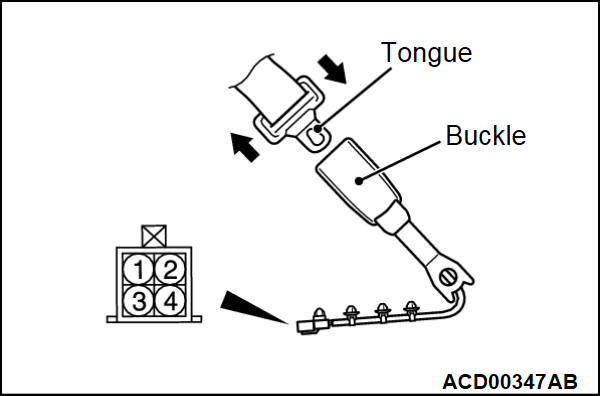

SEAT BELT BUCKLE SWITCH CONTINUITY CHECK <DRIVER'S SIDE>
ItemTester connectionSpecified condition
Fastened seat belt1 - 2Open circuit
Unfastened seat belt1 - 2Continuity exists (2 Ω or less)

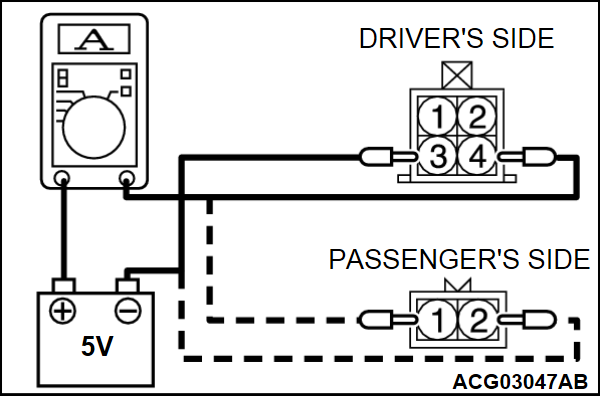

SEAT BELT BUCKLE SWITCH OUTPUT ELECTRIC CURRENT LEVEL CHECK
<DRIVER’S SIDE>
Power supply connectionCheck conditionNormal condition
  • Connect terminal No.4 to the negative power supply (5 V) terminal.
  • Connect terminal No.3 to the positive power supply (5 V) terminal.
When the seat belt is connected12 - 17 mA
When the seat belt is disconnected4 - 7 mA
<PASSENGER’S SIDE>
Power supply connectionCheck conditionNormal condition
  • Connect terminal No.1 to the negative power supply (5 V) terminal.
  • Connect terminal No.2 to the positive power supply (5 V) terminal.
When the seat belt is connected12 - 17 mA
When the seat belt is disconnected4 - 7 mA
