INSPECTION


REMOTE CONTROLLED DOOR MIRROR OPERATION CHECK

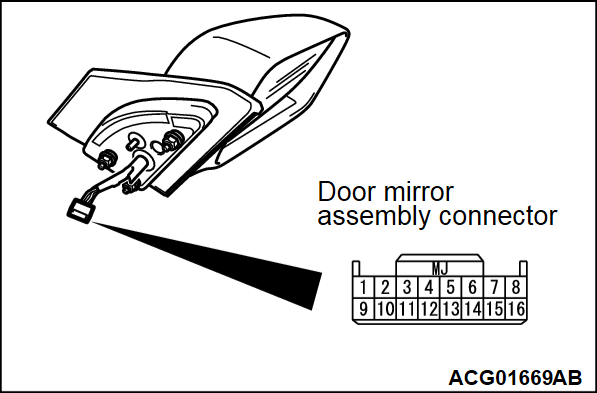

Remove the door trim, and then connect the battery to the door mirror assembly connector to check that the door mirror operates.

Battery connectionOperation direction
  • Connect terminal No. 13 to the negative battery terminal.
  • Connect terminal No. 4 to the positive battery terminal.
Up
  • Connect terminal No. 13 to the positive battery terminal.
  • Connect terminal No. 4 to the negative battery terminal.
Down
  • Connect terminal No. 13 to the negative battery terminal.
  • Connect terminal No. 12 to the positive battery terminal.
Right
  • Connect terminal No. 13 to the positive battery terminal.
  • Connect terminal No. 12 to the negative battery terminal.
Left
  • Connect terminal No. 14 to the positive battery terminal.
  • Connect terminal No. 5 to the negative battery terminal.

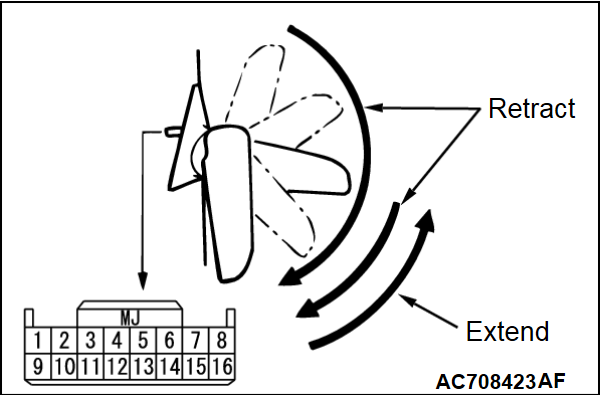

Retract
  • Connect terminal No. 14 to the negative battery terminal.
  • Connect terminal No. 5 to the positive battery terminal.
Extend
Battery connectionOperation direction
  • Connect terminal No. 13 to the negative battery terminal.
  • Connect terminal No. 4 to the positive battery terminal.
Up
  • Connect terminal No. 13 to the positive battery terminal.
  • Connect terminal No. 4 to the negative battery terminal.
Down
  • Connect terminal No. 13 to the negative battery terminal.
  • Connect terminal No. 12 to the positive battery terminal.
Right
  • Connect terminal No. 13 to the positive battery terminal.
  • Connect terminal No. 12 to the negative battery terminal.
Left
  • Connect terminal No. 14 to the positive battery terminal.
  • Connect terminal No. 5 to the negative battery terminal.
Retract
  • Connect terminal No. 14 to the negative battery terminal.
  • Connect terminal No. 5 to the positive battery terminal.
Extend

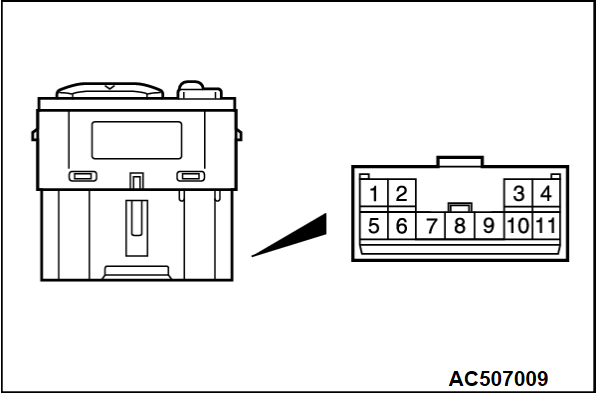

REMOTE CONTROLLED MIRROR SWITCH CONTINUITY CHECK

Switch positionTester connectionSpecified condition
Left sideUp1 - 6, 9 - 11Continuity
exists(2 ohms or less)
Down1 - 11, 6 - 9
Right1 - 6, 9 - 10
Left1 - 10, 6 - 9
Right sideUp1 - 6, 3 - 9
Down1 - 3, 6 - 9
Right1 - 6, 2 - 9
Left1 - 2, 6 - 9
Retract and extend1 - 4
Switch positionTester connectionSpecified condition
Left sideUp1 - 6, 9 - 11Continuity
exists(2 ohms or less)
Down1 - 11, 6 - 9
Right1 - 6, 9 - 10
Left1 - 10, 6 - 9
Right sideUp1 - 6, 3 - 9
Down1 - 3, 6 - 9
Right1 - 6, 2 - 9
Left1 - 2, 6 - 9
Retract and extend1 - 4



HEATED DOOR MIRROR CHECK
cautionWhen relocating the car between locations with extremely different temperatures (warm and cold), leave the car in the location for a while to adapt to the temperature prior to checking it.
Check that the resistance value between the door mirror assembly connector terminal Nos. 1 and 9 is at the standard value.
Standard value: 7.2 ± 1.4 Ω at 25 °C (77°F)



BLIND SPOT WARNING LIGHT CHECK


Blind spot warning light check
1.
cautionDo not apply battery positive voltage to door mirror assembly connector No. 3 terminal as the blind spot warning light is broken.
Apply 5V to the door mirror assembly connector terminal No. 3, ground the terminal No. 11, and then check that the illumination lights up.
2.

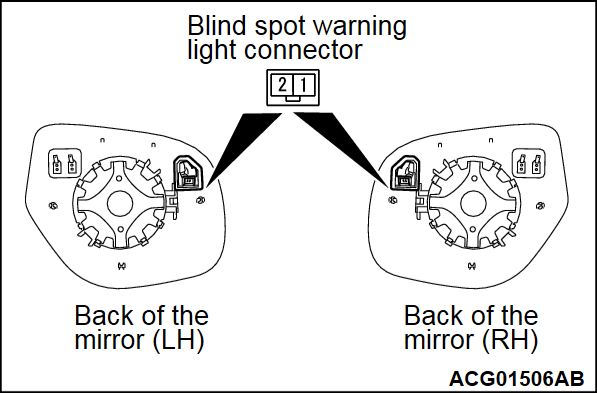

cautionDo not apply battery positive voltage to blind spot warning light connector No. 1 terminal as the blind spot warning light is broken.
Apply 5V to the blind spot warning light connector terminal No. 1, ground the terminal No. 2, and then check that the illumination lights up.



Checking the door mirror main wiring harness wires for continuity
Check the continuity between the door mirror assembly connector and the blind spot warning light connector.

CircuitTester connectionSpecified condition
Power supplyDoor mirror assembly connector terminal No. 3 - blind spot warning light connector terminal No. 1Continuity
exists(2 ohms or less)
GroundDoor mirror assembly connector terminal No. 11 - blind spot warning light connector terminal No. 2
CircuitTester connectionSpecified condition
Power supplyDoor mirror assembly connector terminal No. 3 - blind spot warning light connector terminal No. 1Continuity
exists(2 ohms or less)
GroundDoor mirror assembly connector terminal No. 11 - blind spot warning light connector terminal No. 2
