INSPECTION


FRONT WASHER MOTOR INSPECTION

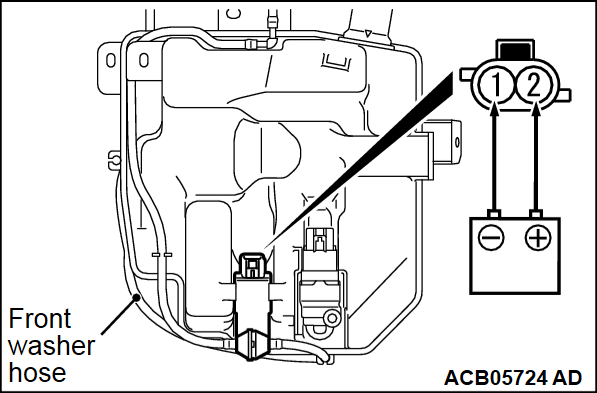

1. The front washer motor must be checked with the washer tank installed and the washer fluid filled.
2. Connect the battery to the washer motor connector as shown. Check that the washer motor delivers washer strongly to the front washer hose side.




WINDSHIELD WASHER TANK FLUID LEVEL SENSOR INSPECTION

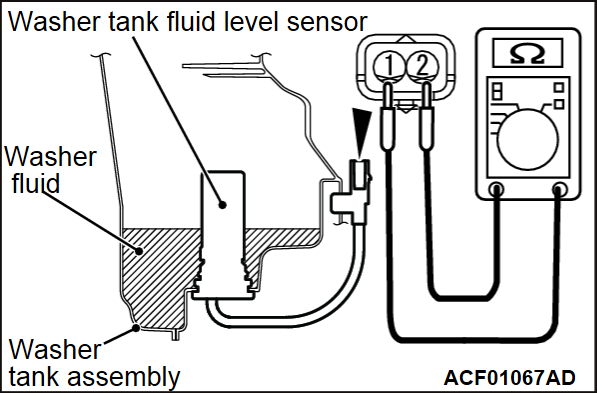

Washer fluid is filled
1. Check the switch without removing the windshield washer tank assembly.
2. Connect the connector terminals as shown. There should be no continuity between them.

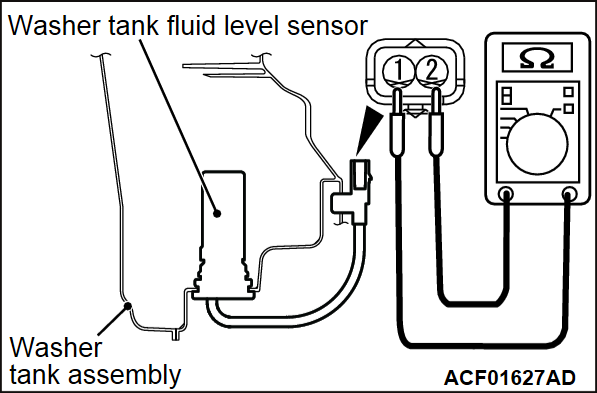

Washer fluid is empty
1. Drain washer fluid from the windshield washer tank assembly and check the switch.
2. Connect the connector terminals as shown. There should be continuity between them.




WINDSHIELD WASHER FLUID EJECTION CHECK

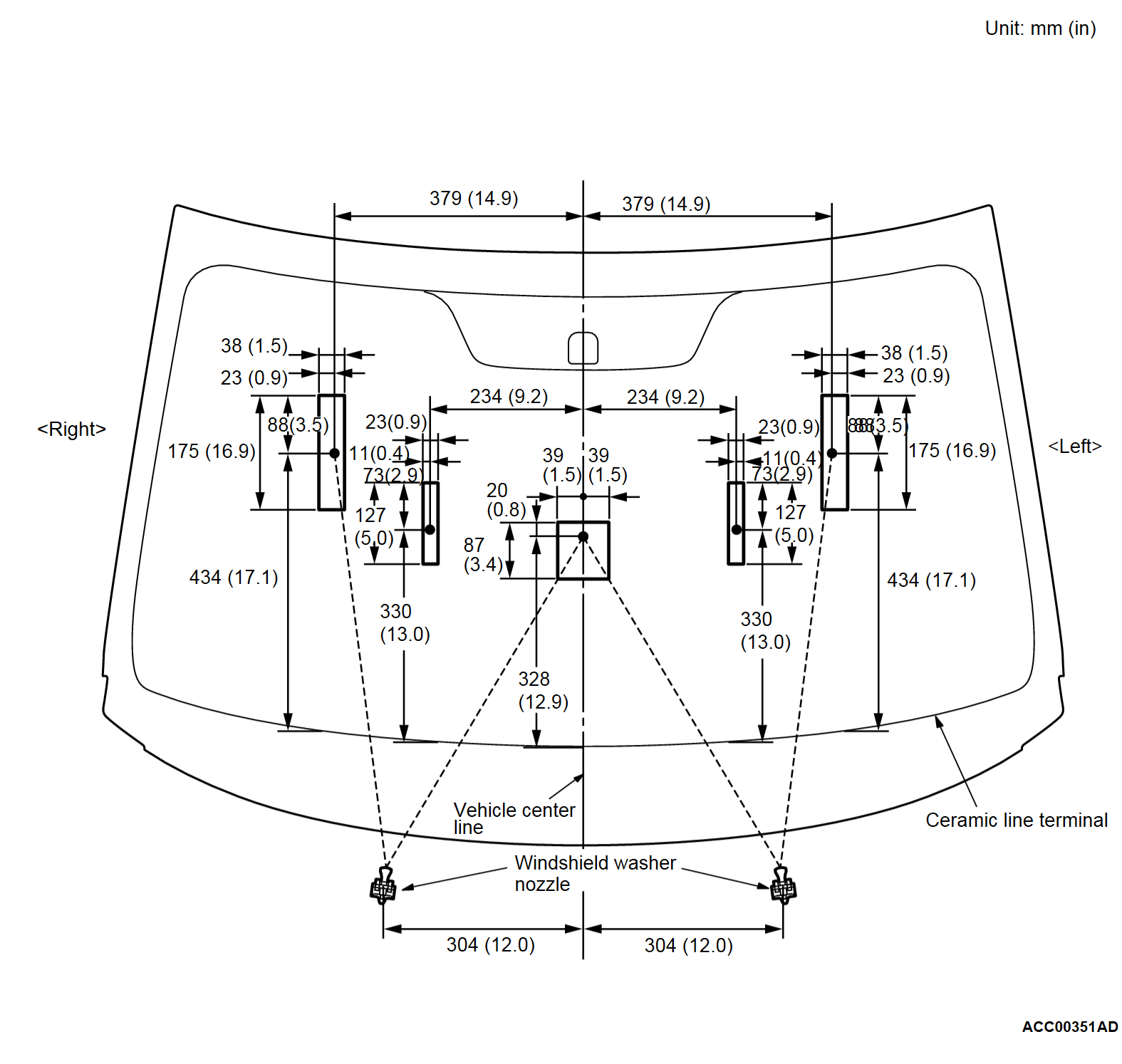

Adjustment of the jet type washer nozzle injection position
1. Check whether washer fluid is sprayed as shown.
cautionBe careful not to break a pin inside the washer nozzle when you adjust it.
2. If the spray pattern shown is not satisfied, use a pin (thinner than 0.7 mm in diameter) to adjust the washer nozzle.




WINDSHIELD WASHER SWITCH CHECK
Check the windshield washer switch from the ETACS diagnostic trouble codes for proper operations (Refer to GROUP 54A, ETACS ).
