INSPECTION


WINDSHIELD WIPER MOTOR CHECK
Remove the windshield wiper motor and inspect it at the harness connector.

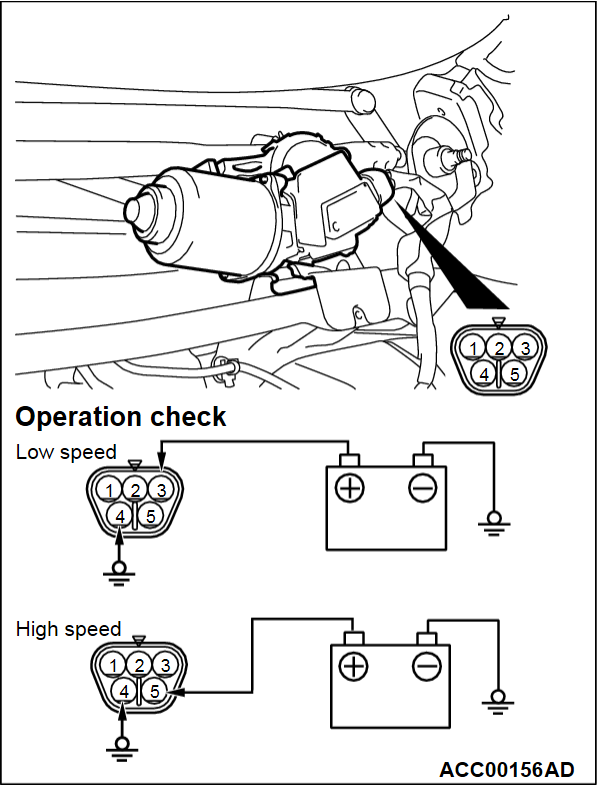

WINDSHIELD WIPER MOTOR AT LOW AND HIGH SPEED OPERATION
Connect the battery to the windshield wiper motor to inspect the operation of motor rotation at low and high speed.






WINDSHIELD WIPER MOTOR AT STOP POSITION OPERATION

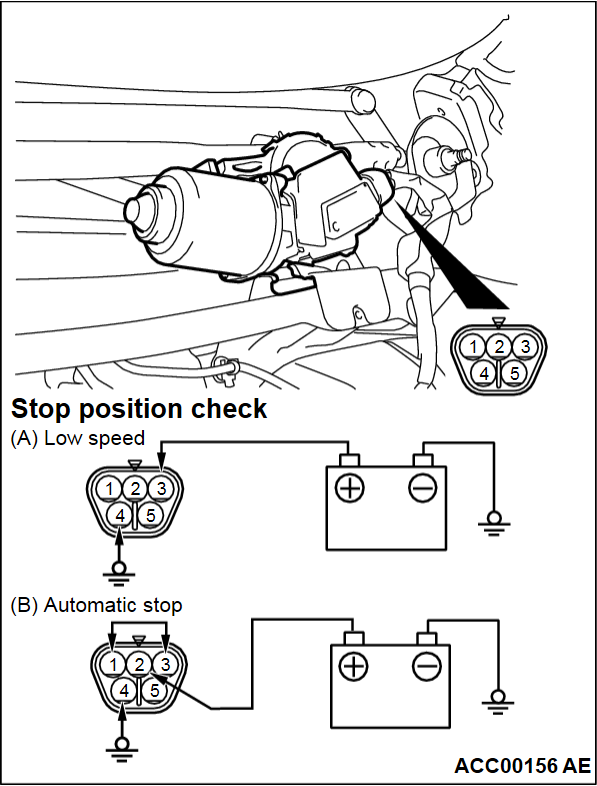

1. Connect the battery to the windshield wiper motor as shown in the illustration (A).
2. Run the windshield wiper motor at low speed, then disconnect the battery in the middle of the motor rotation and check to see that the motor stops.
3. Connect the battery to the windshield wiper motor as shown in the illustration (B).
4. Connect the terminals of the windshield wiper motor connector as shown in the illustration (B).
5. Check to see that the windshield wiper motor runs at low speed and then stops at the automatic stop position.




WINDSHIELD WIPER SWITCH CHECK
Check the windshield wiper switch (mist, intermittent, low speed and high speed) from the ETACS diagnostic trouble codes for proper operations (Refer to GROUP 54A, ETACS ).
