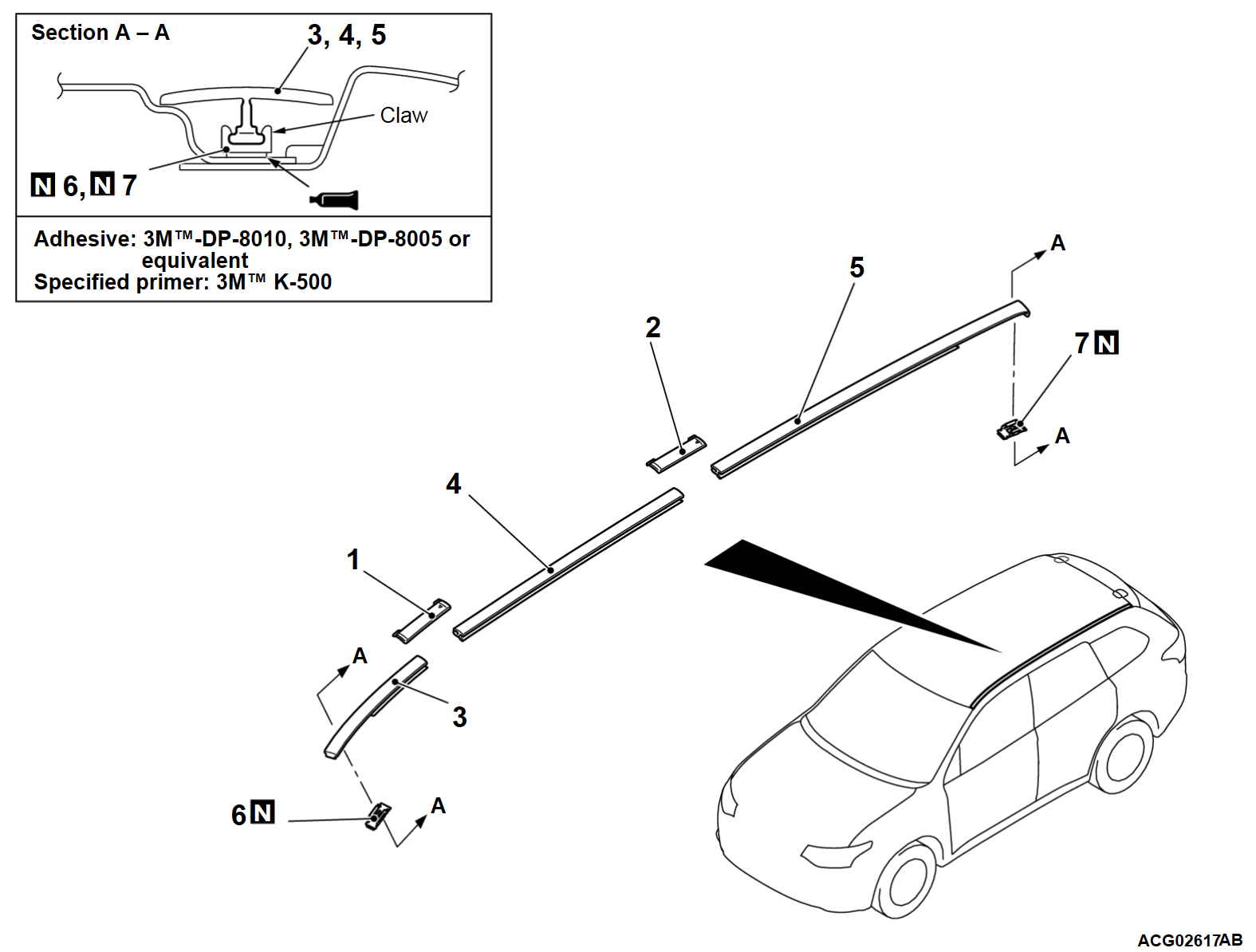

REMOVAL AND INSTALLATION
Removal steps
1.

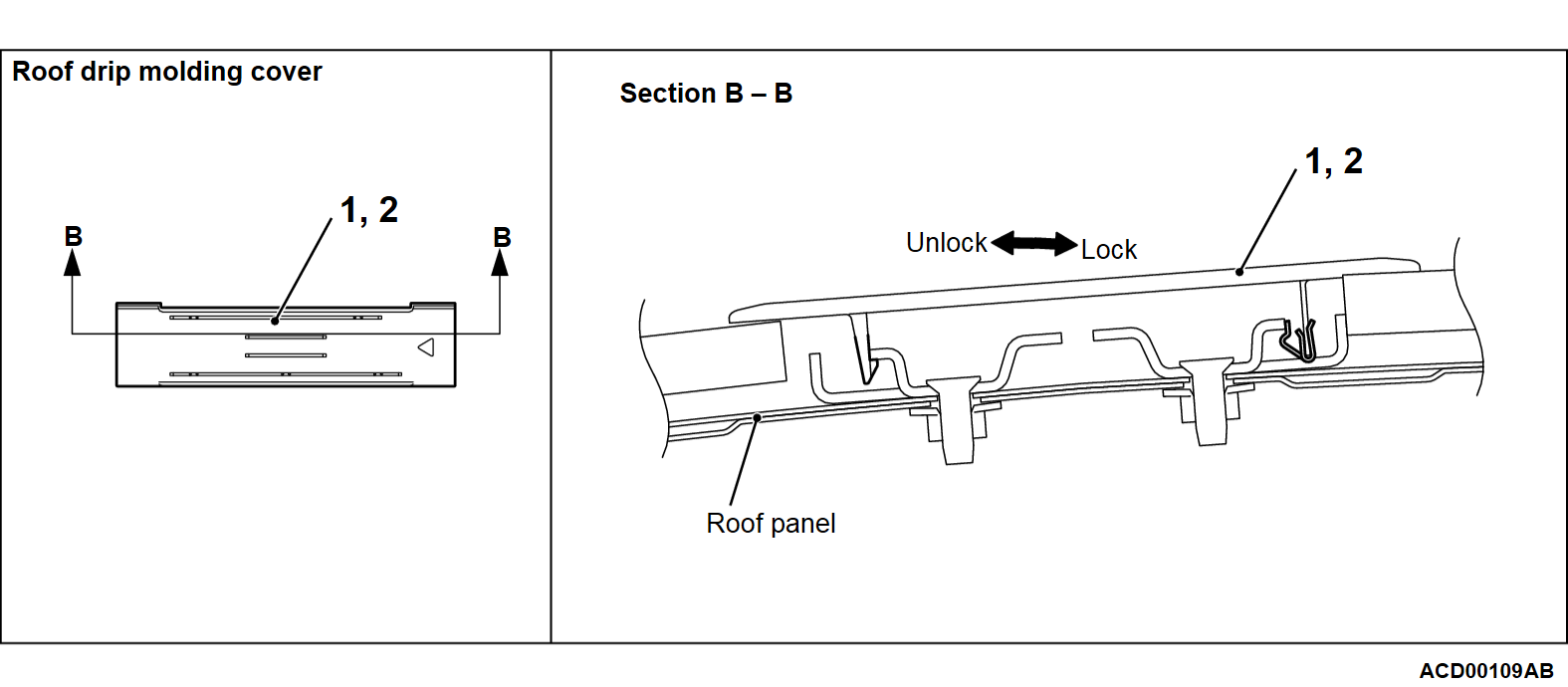

Roof drip molding cover A
2.
Roof drip molding cover B
3.
Roof drip molding front
4.
Roof drip molding center
5.
Roof drip molding rear
>>A<<
6.
Roof drip molding clip (front)
>>A<<
7.
Roof drip molding clip (rear)
INSTALLATION SERVICE POINT
>>A<< ROOF DRIP MOLDING CLIP INSTALLATION
Apply the specified sealant to the roof drip molding clip surface, and install the roof drip molding clip.
Specified adhesive: 3M™-DP-8010, 3M™-DP-8005 or equivalent
1.
Remove any remnants of the old tape. Then degrease the adhesion surface by using a cloth moistened with 3M™ AAD Part number 8906 or equivalent.
2.
Apply the specified adhesive to the adhesion surface of the roof molding clip.
Specified adhesive: 3M™-DP-8010, 3M™-DP-8005 or equivalent
3.

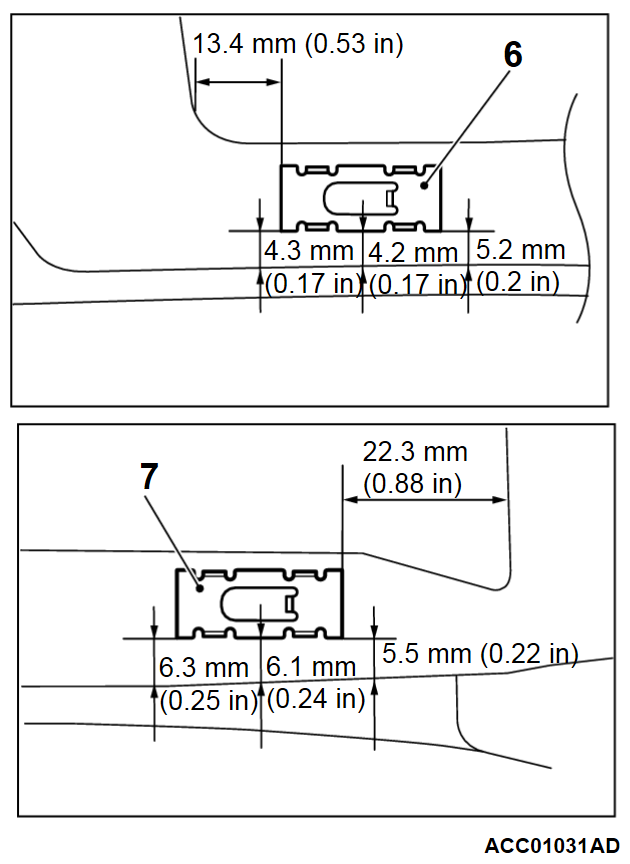

Adhere the roof drip molding clip as shown.
4.
Wait for at least 10 minutes. Then install the roof drip molding.
