DISASSEMBLY AND ASSEMBLY


warningCertain components of this vehicle, such as coin-type lithium battery may contain perchlorate materials. Before deployment and/or disposal of these components, review and comply with all applicable Federal, state and local regulations.
Post-installation operation
Operation check of the keyless operation key

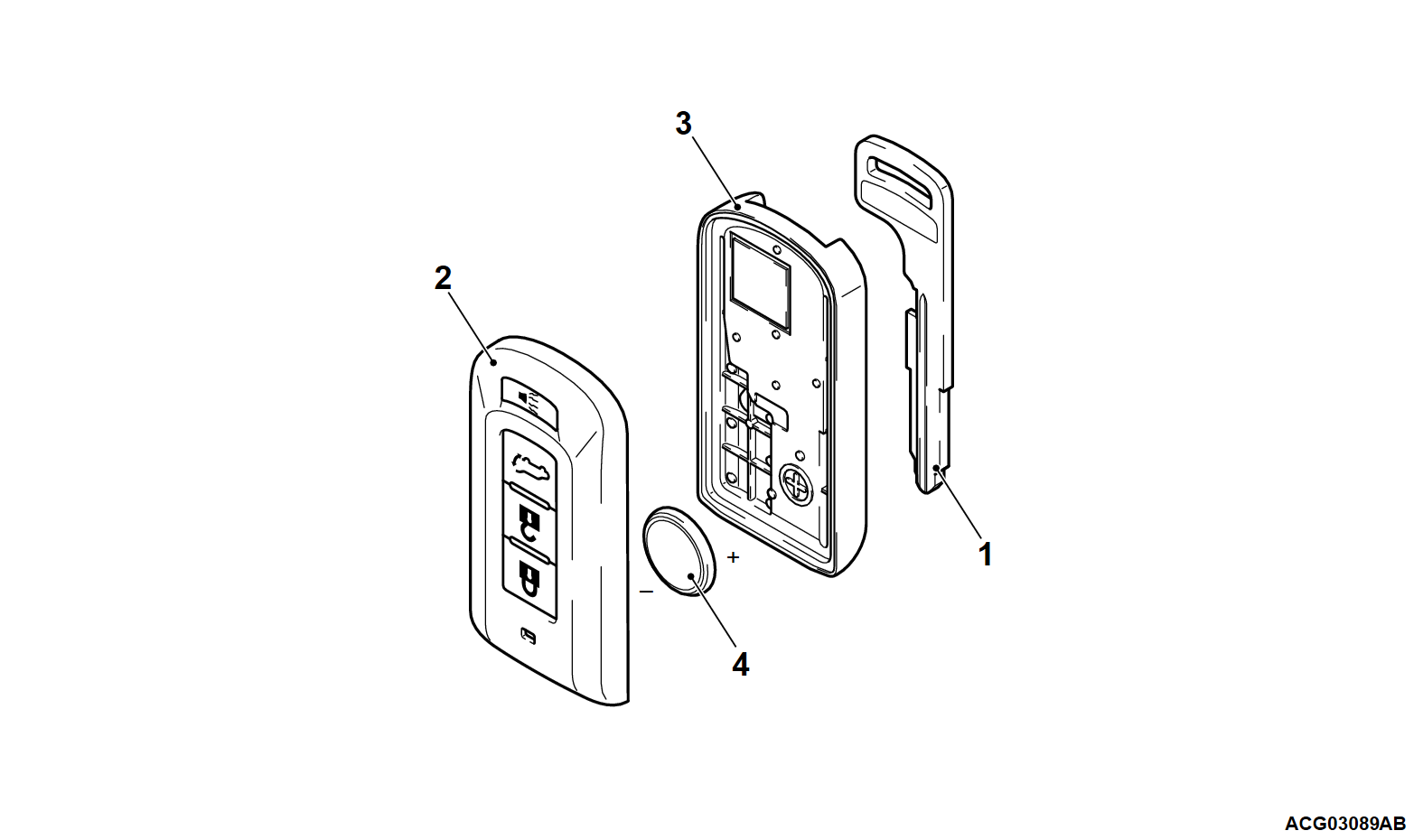

Disassembly steps
<<A>>1.Emergency key
<<B>>2.Upper cover
<<B>>3.Lower cover
<<B>>>>A<<4.Battery


DISASSEMBLY SERVICE POINTS


<<A>> EMERGENCY KEY REMOVAL
Move the lever on the lower cover to the direction shown by the arrow to remove the emergency key from the keyless operation key.



<<B>> UPPER COVER/BATTERY/LOWER COVER REMOVAL

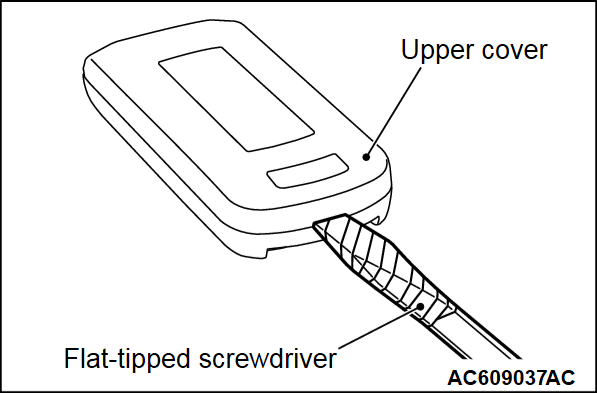

Set a flat-tipped screwdriver wrapped with protective tape as shown in the figure, and pry off the keyless operation key.




ASSEMBLY SERVICE POINT


>>A<< BATTERY INSTALLATION
Install a battery with the positive side facing toward the lower cover.
Replacement battery: Coin-type lithium battery CR2032
