INSPECTION

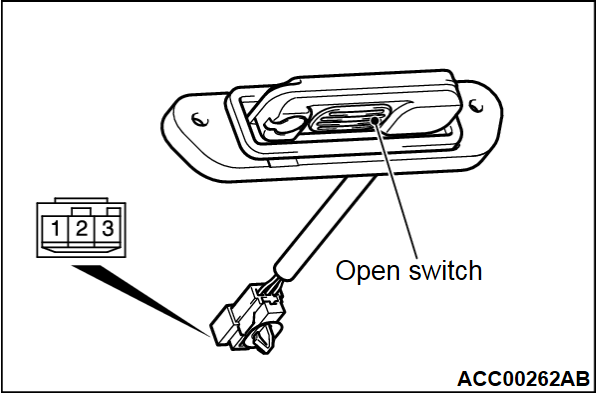

LIFTGATE LOCK RELEASE HANDLE (LIFTGATE OPEN SWITCH) CHECK

Switch positionTerminal numberNormal value
Push (open)1 - 2 Continuity exists (2 Ω or less)
Release1 - 2 No continuity
Switch positionTerminal numberNormal value
Push (open)1 - 2 Continuity exists (2 Ω or less)
Release1 - 2 No continuity

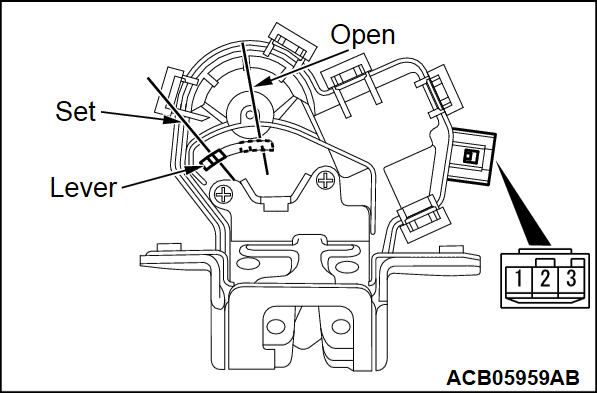

LIFTGATE LOCK ACTUATOR CHECK

Lever positionBattery connectionLever operation
At the "SET" position
  • Connect terminal 2 to negative battery terminal.
  • Connect terminal 3 to positive battery terminal.
Lever moves from "SET" to "OPEN" position.
Lever positionBattery connectionLever operation
At the "SET" position
  • Connect terminal 2 to negative battery terminal.
  • Connect terminal 3 to positive battery terminal.
Lever moves from "SET" to "OPEN" position.

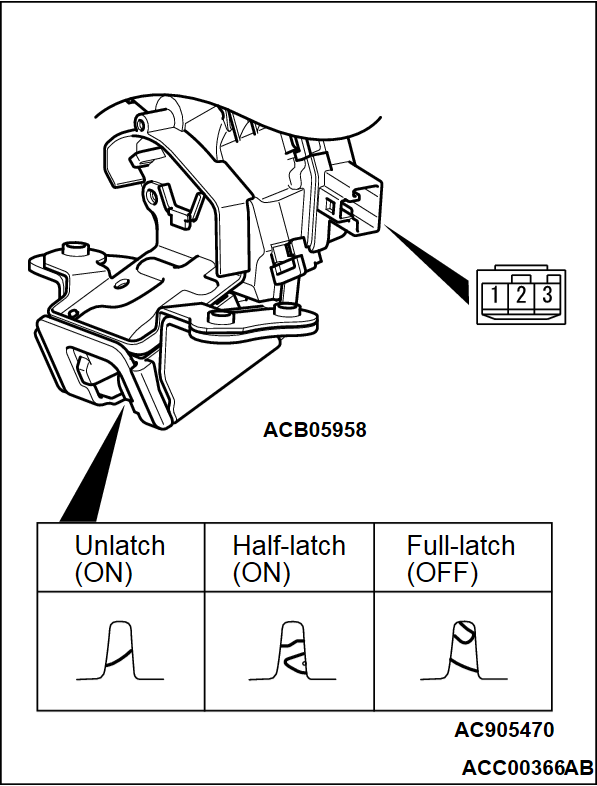

LIFTGATE LATCH SWITCH CHECK

Claw positionTerminal numberNormal value
Unlatch (ON)/ Half-latch (ON)1 - 2 Continuity exists (2 Ω or less)
Full-latch (OFF)1 - 2 No continuity
Claw positionTerminal numberNormal value
Unlatch (ON)/ Half-latch (ON)1 - 2 Continuity exists (2 Ω or less)
Full-latch (OFF)1 - 2 No continuity
