INSPECTION

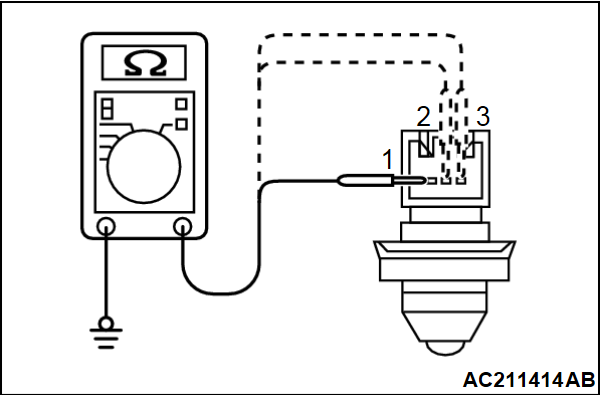

DOOR SWITCH CHECK

Switch positionTerminal numberNormal value
Release (ON)1 - Ground, 2 - Ground, 3 - Ground Continuity exists (2 Ω or less)
Depressed (OFF)1 - Ground, 2 - Ground, 3 - Ground Open circuit
Switch positionTerminal numberNormal value
Release (ON)1 - Ground, 2 - Ground, 3 - Ground Continuity exists (2 Ω or less)
Depressed (OFF)1 - Ground, 2 - Ground, 3 - Ground Open circuit
