GENERAL INFORMATION


The windshield glass, quarter window glass, liftgate window glass and roof glass are attached by an urethane-base adhesive to the window frame. This adhesive provides improved glass holding and sealing, and also gives body openings a greater structural strength.


ITEMS
NameRemark
Adhesive3M ATD Part No.8609 Super Fast Urethane Auto Glass Sealant or equivalent
Primer3M ATD Part No.8608 Super Fast Urethane Primer or equivalent
SpacersAvailable as service part
DamAvailable as service part
Anti-rust solvent (or Tectyl 506T.Valvoline Oil Company)For rust prevention
Steel piano wireDia. × length. 0.6mm (0.02 inches) × 1m (3.3 feet) (For cutting adhesive)
Glass adhesive knifeFor cutting adhesive
Adhesive gunFor pressing-out adhesive



HANDLING OF AUTO WINDOW SEALER
Keep the sealant in a cool place, not exposed to the direct rays of the sun. Do not place any heavy article on the sealant nor press it, otherwise it will become deformed. Avoid storing the sealant for more than 6 months, because it will lose its sealing effect.


BODY PINCH-WELD FLANGE SERVICING
Before servicing the body pinch-weld flange, remove old adhesive completely. If the flange requires painting, bake it after painting is completed.

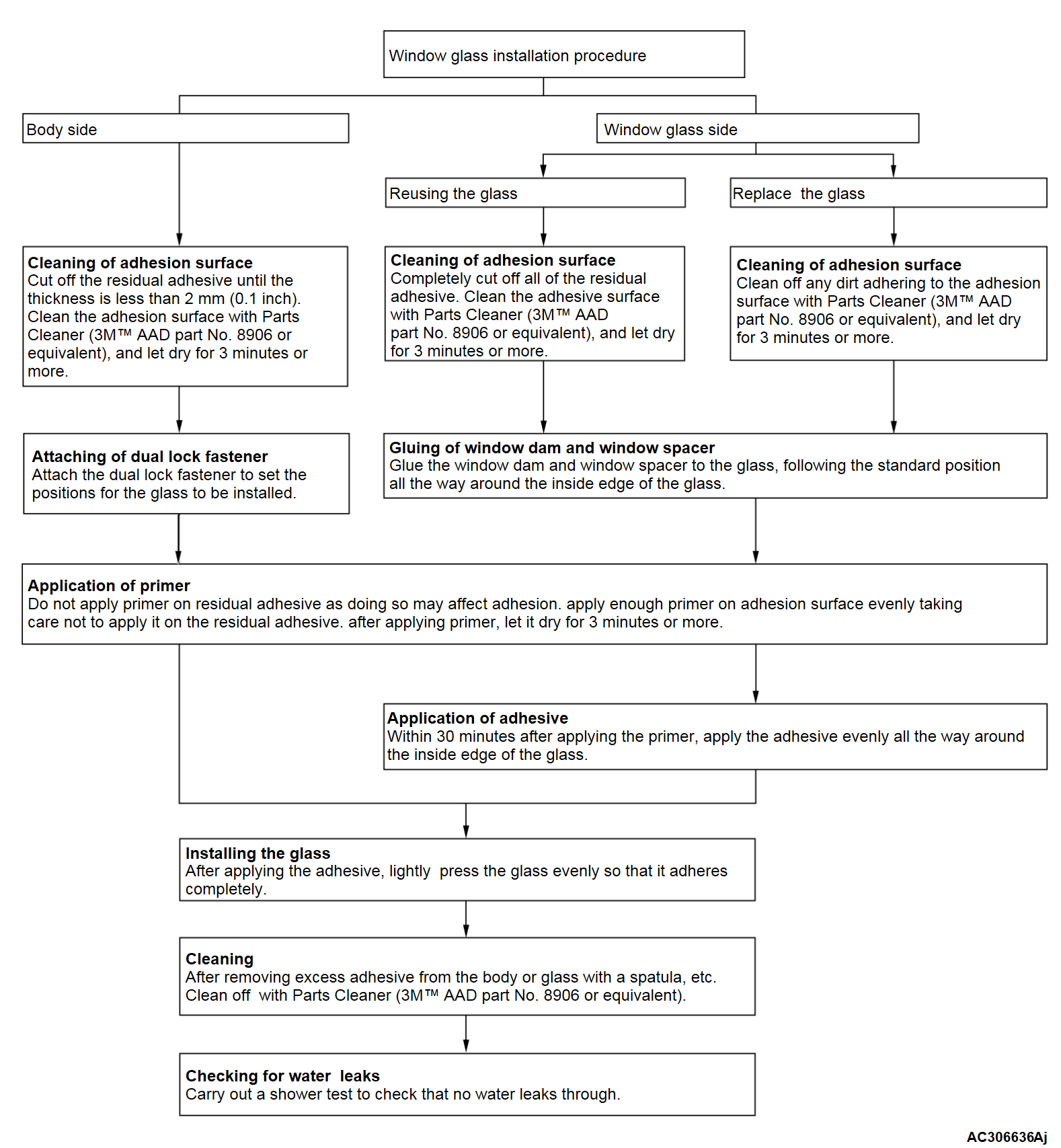

WINDOW GLASS INSTALLATION
