DIAGNOSTIC FUNCTION

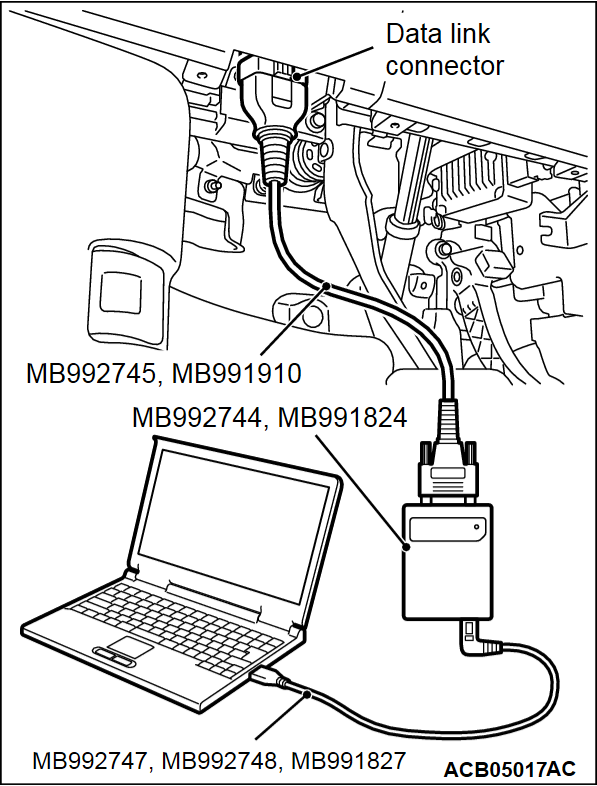

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)
Required Special Tools:
  • MB992744: Vehicle communication interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite main harness A
  • MB992747: V.C.I.-Lite USB cable short
  • MB992748: V.C.I.-Lite USB cable long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
cautionTo prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).
1. Ensure that the ignition switch is at the "LOCK" (OFF) position.
2. Start up the personal computer.
3. Connect special tool MB992747/M992748 or special tool MB991827 to special tool MB992744 or special tool MB991824 and the personal computer.
4. Connect special tool MB992745 or special tool MB991910 to special tool MB992744 or special tool MB991824.
5. Connect special tool MB992745 or special tool MB991910 to the data link connector.
noteWhen the special tool MB992745 is connected to the data link connector, the special tool MB992744 indicator light will be illuminated in a green color.
6. Turn the power switch of special tool MB991824 to the "ON" position. <When using the special tool MB991824>
noteWhen special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.
7. Start the M.U.T.-III system on the personal computer.
noteDisconnecting scan tool (M.U.T.-III) is the reverse of the connecting sequence, making sure that the ignition switch is at the "LOCK" (OFF) position.



HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES
Required Special Tools:
  • MB992744: Vehicle communication interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite main harness A
  • MB992747: V.C.I.-Lite USB cable short
  • MB992748: V.C.I.-Lite USB cable long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
noteIf the battery voltage is low, diagnostic trouble codes will not be set. Check the battery if scan tool (M.U.T.-III) does not display.
1. Connect scan tool (M.U.T.-III) to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle Information" is displayed, check the contents.
5. Select "ECPS/4WS" from "System List," and press the "OK" button.
6. Select "Diagnostic Trouble Code" to read the DTC.
7. If a DTC is set, it is shown.
8. Choose "Erase DTCs" to erase the DTC.



HOW TO READ DATA LIST
Required Special Tools:
  • MB992744: Vehicle communication interface-Line (V.C.I.-Line)
  • MB992745: V.C.I.-Line main harness A (for vehicle with CAN communication)
  • MB992747: V.C.I.-Line USB cable short
  • MB992748: V.C.I.-Line USB cable long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicle Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
1. Connect the scan tool (M.U.T.-III) to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System Select."
4. Select "ECPS/4WS" from "System List," and press the "OK" button.
5. Select "Data List."
6. Choose an appropriate item and select the "OK" button.



HOW TO PERFORM ACTUATOR TEST
Required Special Tools:
  • MB992744: Vehicle communication interface-Line (V.C.I.-Line)
  • MB992745: V.C.I.-Line main harness A (for vehicle with CAN communication)
  • MB992747: V.C.I.-Line USB cable short
  • MB992748: V.C.I.-Line USB cable long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicle Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
1. Connect the scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System Select."
4. Select "ECPS/4WS" from "System List," and press the "OK" button.
5. Choose "Actuator Test" from "EPS" screen.
6. Choose an appropriate item and select the "OK" button.



HOW TO DIAGNOSE THE CAN BUS LINES
Required Special Tools:
  • MB992744: Vehicle communication interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite main harness A
  • MB992747: V.C.I.-Lite USB cable short
  • MB992748: V.C.I.-Lite USB cable long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
1. Connect scan tool (M.U.T.-III) to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "CAN bus diagnosis" from the start-up screen.
4. When the vehicle information is displayed, confirm that it matches the vehicle being diagnosed.
  • If they match, go to Step 8.
  • If not, go to Step 5.
5. Select the "view vehicle information" button.
6. Enter the vehicle information and select the "OK" button.
7. When the vehicle information is displayed, confirm again that it matches the vehicle being diagnosed.
  • If they match, go to Step 8.
  • If not, go to Step 5.
8. Select the "OK" button.
9. When the optional equipment screen is displayed, choose the one which the vehicle is fitted with, and then select the "OK" button.



CHECK OF FREEZE FRAME DATA


The freeze frame data can be checked by using scan tool (M.U.T.-III).
When detecting the trouble and storing the diagnostic trouble code, the ECU connected to CAN bus line obtains the data when the diagnostic trouble code is confirmed, and then stores the ECU status of that time. By analyzing each data from scan tool (M.U.T.-III), the troubleshooting can be performed more efficiently. The displayed items are as the table below.
Display item list
Item No.Item nameData itemUnit
01OdometerTotal driving distance when the diagnostic trouble code is generatedkm/mile
02Ignition cycleNumber of times the ignition switch is turned "ON" or "LOCK (OFF)" after the past failure transitionNumber of counts is displayed.
04Accumulated minuteCumulative time for current malfunction of diagnostic trouble codemin
06Torque sensor (main)Voltage of the main torque sensor when the diagnostic trouble code is generatedV
07Torque sensor (sub)Voltage of the sub torque sensor when the diagnostic trouble code is generatedV
08Torque sensor (power supply)Voltage of torque sensor power supply when the diagnostic trouble code is generatedV
09Resolver voltage 1Voltage of the motor angle sensor signal when the diagnostic trouble code is generated.V
10Resolver voltage 2V
11Relay voltageVoltage of power supply relay when the diagnostic trouble code is generatedV
12Vehicle speedVehicles speed when the diagnostic trouble code is generatedkm/h/mph
13Assist flag for EngineEngine status for EPS when the diagnostic trouble code is generated.ON or OFF
14Assist flag for EVNot used.-
15Engine speed lost flagEPS engine control status when the engine speed cannot be read.ON or OFF
16Engine speed fail flagEPS engine control status when the engine speed is abnormal.ON or OFF
17EV-ECU READY lost flagNot used.-
