ELECTRIC PARKING BRAKE SWITCH AND BRAKE AUTO HOLD SWITCH CHECK

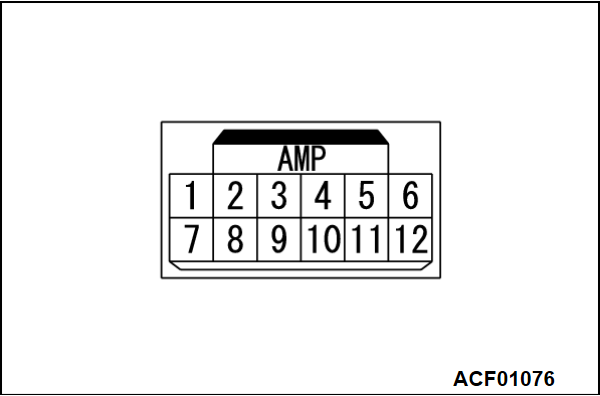

Switch resistance check
| | Electric parking brake switch | Switch position | Terminal number | Specified condition | | OFF | 1 - 3 | 95.0 - 109.4 kΩ | | 1 - 10 | 5.4 - 6.2 kΩ | | 1 - 2 | 5.4 - 6.2 kΩ | | 1 - 9 | 5.4 - 6.2 kΩ | | Apply (Pull up) | 1 - 3 | 1.98 - 2.42 kΩ | | 1 - 10 | 0.97 - 1.23 kΩ | | 1 - 2 | 5.4 - 6.2 kΩ | | 1 - 9 | 5.4 - 6.2 kΩ | | Release (Push) | 1 - 3 | 95.0 - 109.4 kΩ | | 1 - 10 | 5.4 - 6.2 kΩ | | 1 - 2 | 0.97 - 1.23 kΩ | | 1 - 9 | 0.97 - 1.23 kΩ |
|
Electric parking brake switch
| Switch position | Terminal number | Specified condition |
| OFF | 1 - 3 | 95.0 - 109.4 kΩ |
| 1 - 10 | 5.4 - 6.2 kΩ |
| 1 - 2 | 5.4 - 6.2 kΩ |
| 1 - 9 | 5.4 - 6.2 kΩ |
| Apply (Pull up) | 1 - 3 | 1.98 - 2.42 kΩ |
| 1 - 10 | 0.97 - 1.23 kΩ |
| 1 - 2 | 5.4 - 6.2 kΩ |
| 1 - 9 | 5.4 - 6.2 kΩ |
| Release (Push) | 1 - 3 | 95.0 - 109.4 kΩ |
| 1 - 10 | 5.4 - 6.2 kΩ |
| 1 - 2 | 0.97 - 1.23 kΩ |
| 1 - 9 | 0.97 - 1.23 kΩ |
| | Brake auto hold switch | Switch position | Terminal number | Specified condition | | OFF | 1 - 8 | No continuity | | ON (Push) | 1 - 8 | Continuity |
|
Brake auto hold switch
| Switch position | Terminal number | Specified condition |
| OFF | 1 - 8 | No continuity |
| ON (Push) | 1 - 8 | Continuity |
Indicator check
| | Electric parking brake switch | Battery voltage | Terminal number | Normal condition | | At no energization | 5 (+) - 6 (-) | Not illuminated | | With current supply | Illuminated |
|
Electric parking brake switch
| Battery voltage | Terminal number | Normal condition |
| At no energization | 5 (+) - 6 (-) | Not illuminated |
| With current supply | Illuminated |
| | Brake auto hold switch | Battery voltage | Terminal number | Normal condition | | At no energization | 5 (+) - 11 (-) | Not illuminated | | With current supply | Illuminated |
|
Brake auto hold switch
| Battery voltage | Terminal number | Normal condition |
| At no energization | 5 (+) - 11 (-) | Not illuminated |
| With current supply | Illuminated |
Illumination check
| | | Battery voltage | Terminal number | Normal condition | | At no energization | 12 (+) - 7 (-) | Not illuminated | | With current supply | Illuminated |
|
| Battery voltage | Terminal number | Normal condition |
| At no energization | 12 (+) - 7 (-) | Not illuminated |
| With current supply | Illuminated |
