INSPECTION


FCM ON/OFF SWITCH CHECK

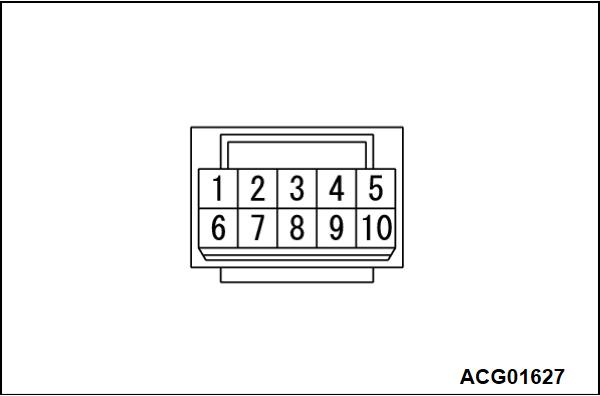

Switch resistance check

Switch positionTerminal numberSpecified condition
OFF7 - 10No continuity
ONThe resistance should be 2 ohms or less
Switch positionTerminal numberSpecified condition
OFF7 - 10No continuity
ONThe resistance should be 2 ohms or less


Illumination check

Auxiliary battery voltageTerminal numberNormal condition
At no energization8 (+) - 9 (-)Not illuminated
With current supplyIlluminated
Auxiliary battery voltageTerminal numberNormal condition
At no energization8 (+) - 9 (-)Not illuminated
With current supplyIlluminated
