INSPECTION


ASC OFF SWITCH CHECK

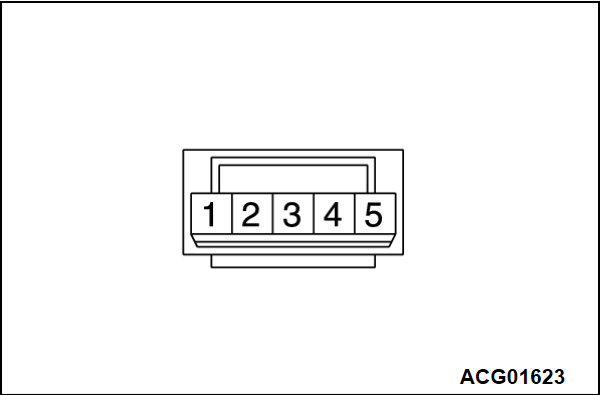

Switch resistance check

Switch positionTerminal numberSpecified condition
OFF2 - 5No continuity
ONContinuity exists (2 Ω or less)
Switch positionTerminal numberSpecified condition
OFF2 - 5No continuity
ONContinuity exists (2 Ω or less)


Illumination check

Battery voltageTerminal numberNormal condition
At no energization3 (+) - 4 (-)Not illuminated
With current supplyIlluminated
Battery voltageTerminal numberNormal condition
At no energization3 (+) - 4 (-)Not illuminated
With current supplyIlluminated
