REMOVAL AND INSTALLATION <FRONT>


cautionThe vehicle speed detection encoder collects any metallic particle easily, because it is magnetized. Make sure that the encoder should not collect any metallic particle. Check that there is not any trouble prior to reassembling it.
Pre-removal and Post-installation Operation
Air Cleaner Body Assembly Removal and Installation <Refer to GROUP 15 - Air Cleaner (2.4L ENGINE) or (3.0L ENGINE)> <Front wheel speed sensor (LH)>.

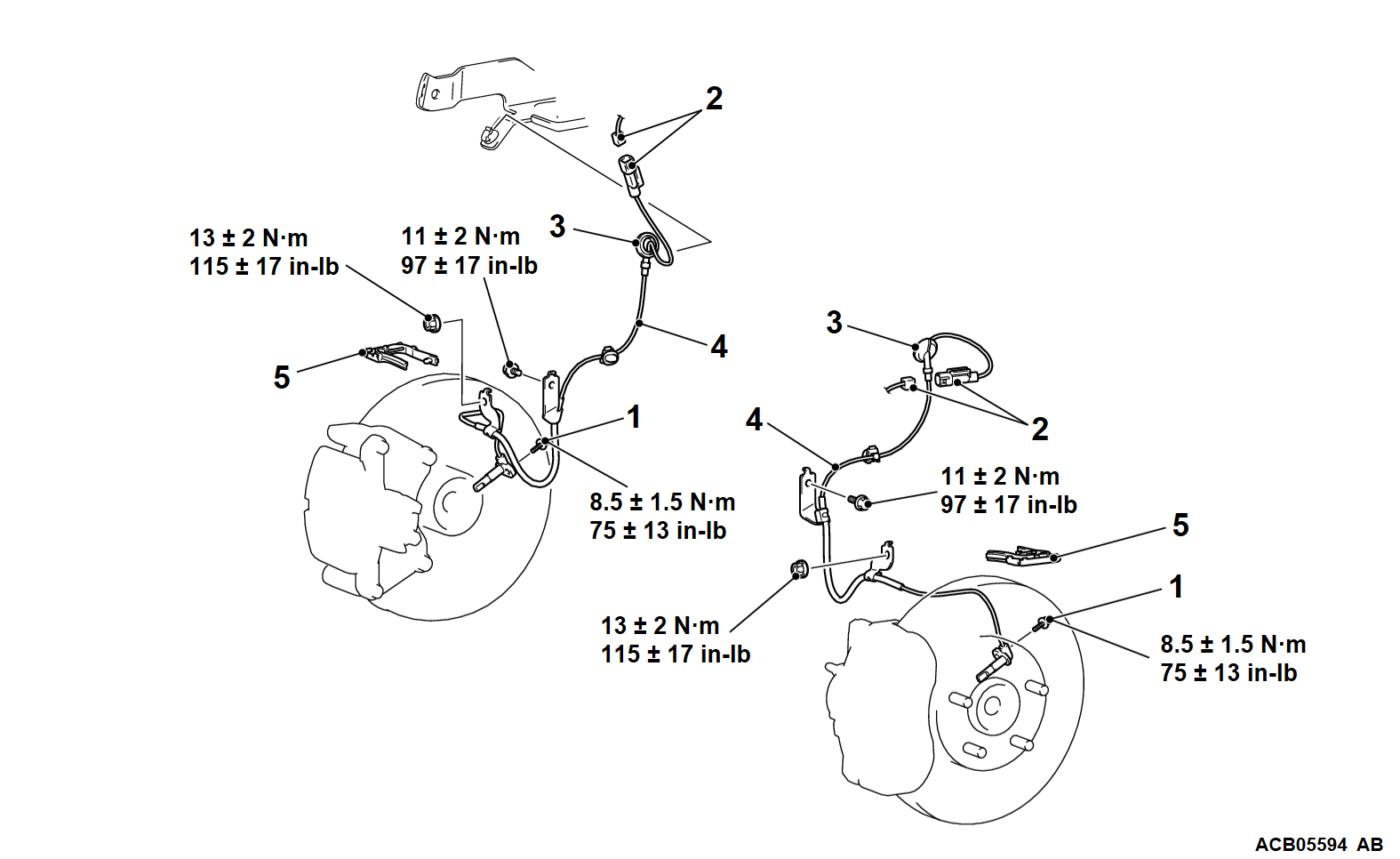

Removal steps
1.Bolt (front wheel speed sensor and knuckle connection)
2.Front wheel speed sensor connector
>>A<<3.Front wheel speed sensor grommet
4.Front wheel speed sensor
>>B<<5.Harness clip
noteThe vehicle speed detection encoder is integrated with the front wheel bearing, which cannot be disassembled.


INSTALLATION SERVICE POINTS


>>A<< FRONT WHEEL SPEED SENSOR GROMMET INSTALLATION

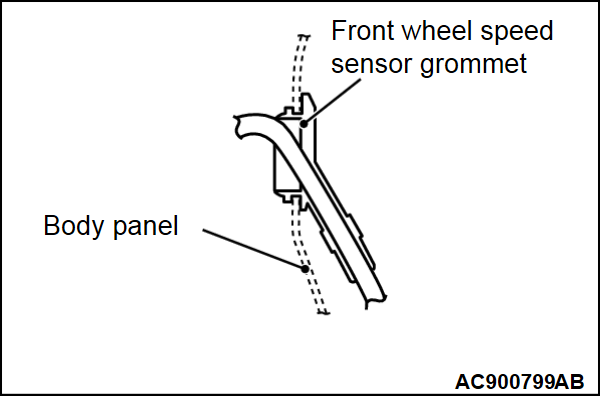

Install the front wheel speed sensor grommet to the body panel snugly as shown in the figure.




>>B<< HARNESS CLIP INSTALLATION

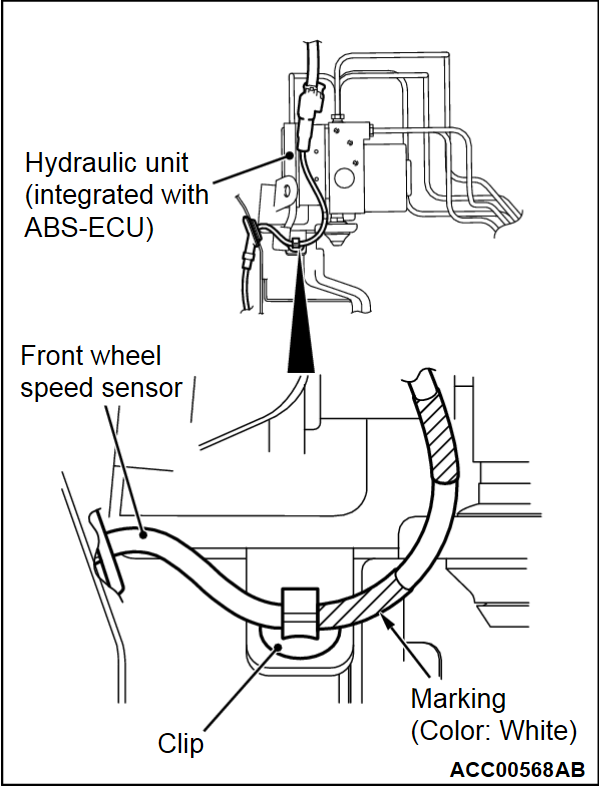

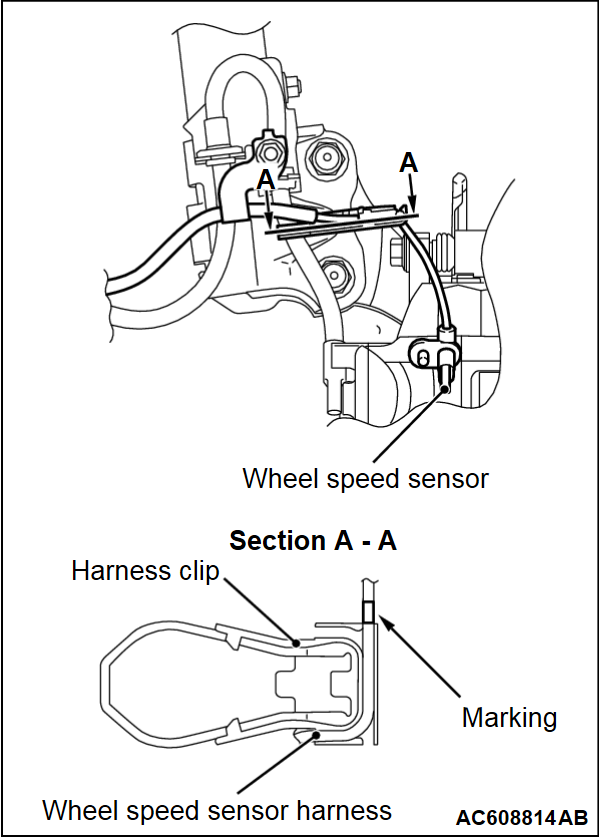

Install the front wheel speed sensor to the harness clip as shown in the figure.
