BRAKE PAD CHECK


<FRONT>
1.
cautionIf there is a significant difference in thickness between the brake pads at right and left, check the sliding area and the run-out of the brake disc (Refer to ).

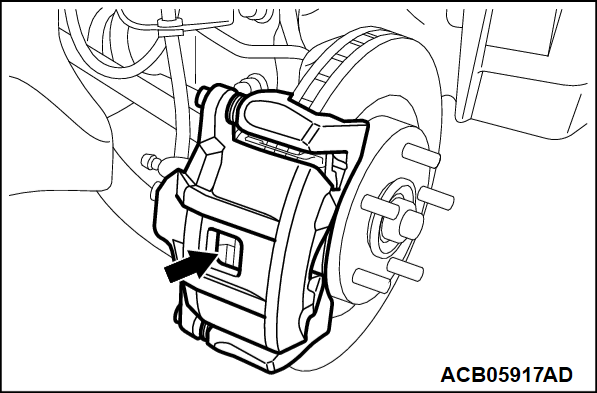

Visually check the thickness of brake pad from the inspection hole of the caliper body.
Standard value: 10.0 mm (0.39 inch)
Limit: 2.0 mm (0.08 inch)
2. If the brake pad thickness is less than the limit value, replace the brake pad (Refer to ).



<REAR>
1.
cautionIf there is a significant difference in thickness between the brake pads at right and left, check the sliding area and the run-out of the brake disc (Refer to ).

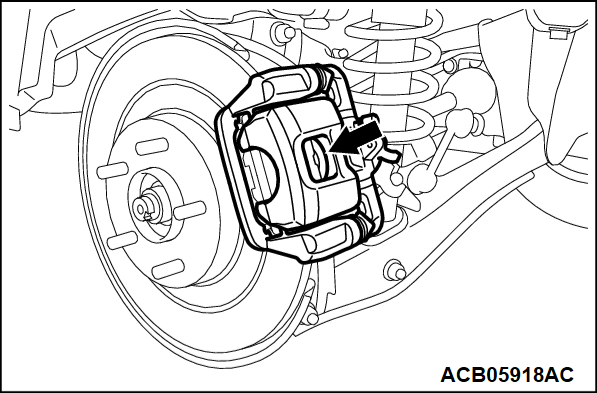

Visually check the thickness of brake pad from the inspection hole of the caliper body.
Standard value: 9.0 mm (0.4 inch)
Limit: 1.5 mm (0.06 inch) <Vehicles without electric parking brake>, 2.0 mm (0.08 inch) <Vehicles with electric parking brake>
2. If the brake pad thickness is less than the limit value, replace the brake pad (Refer to ).
