| caution | Do not apply lubricant (grease or silicon system sprayer etc.) to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have lubricant (grease or silicon system sprayer etc.) on them. |
)
|
| Check condition | Terminal connector of tester | Normal condition |
| At free position | 1 - 2 (for stoplight switch) | Continuity exists (2 Ω or less) |
| 3 - 4 (for cruise control) | No continuity | |

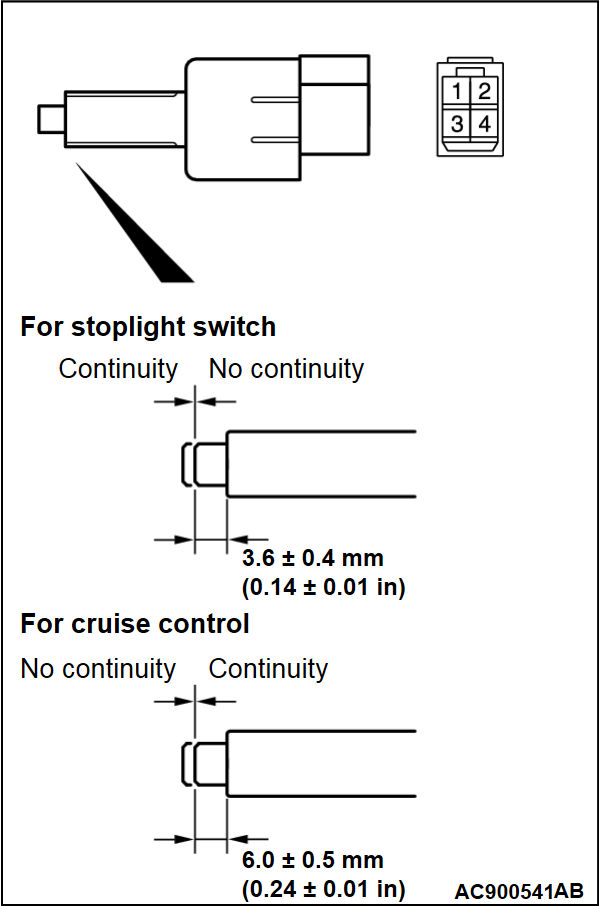

| Press the plunger from the edge of the outer case by the dimension shown in the figure. | 1 - 2 (for stoplight switch) | No continuity |
| 3 - 4 (for cruise control) | Continuity exists (2 Ω or less) |
