Brake Fluid Refilling and Air Bleeding (Refer to ).
Brake Disk Runout Inspection/Correction (Refer to ).

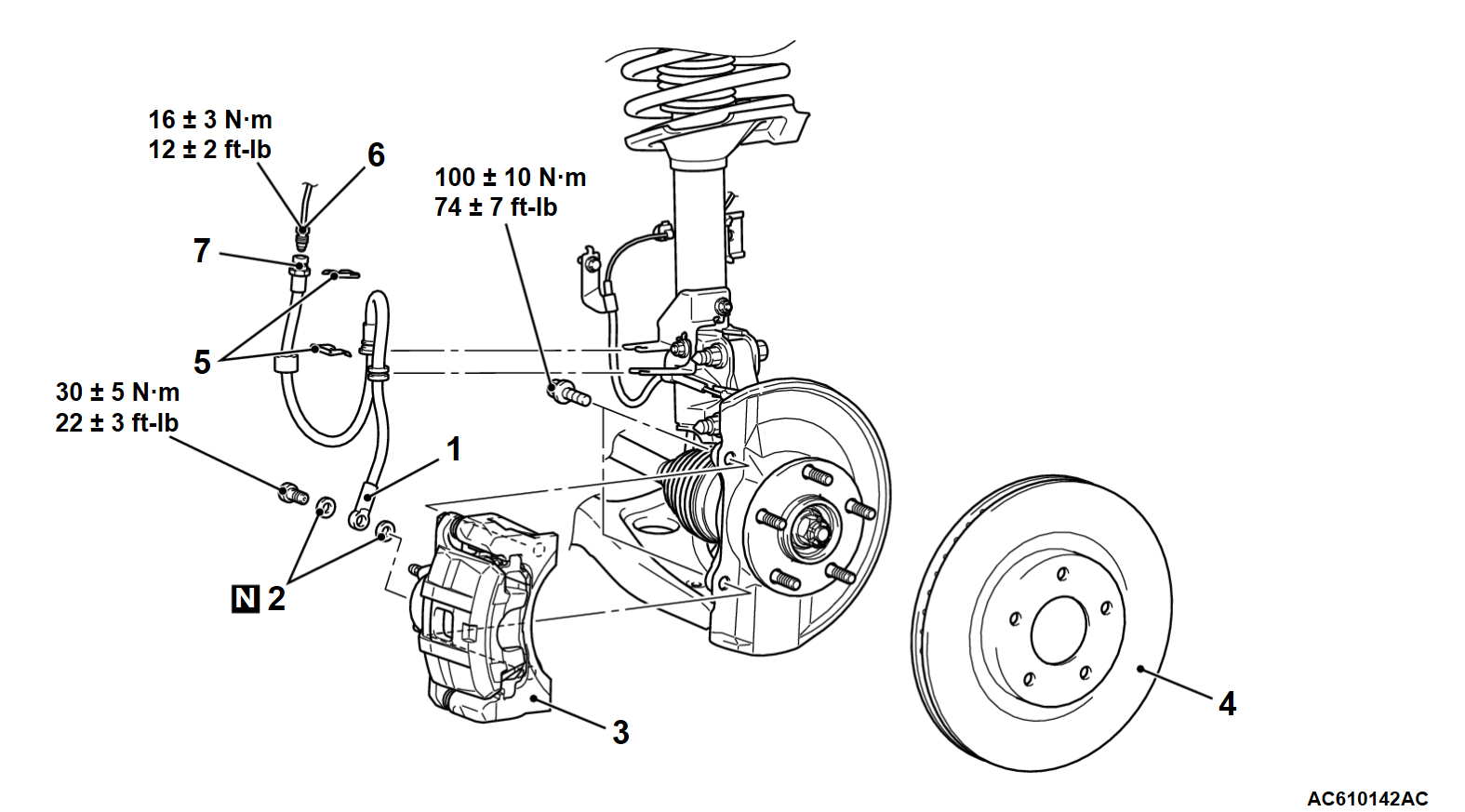

Removal steps
1.
Brake hose (brake caliper side) connection
2.
Gasket
3.
Brake caliper assembly
4.
Front brake disk
5.
Clip
6.
Brake pipe connection
>>A<<
7.
Brake hose
INSTALLATION SERVICE POINT
>>A<< BRAKE HOSE INSTALLATION
1. Pass the brake hose through the hole in the body-side bracket.
2. Install the brake hose to the brake caliper.
3. Install the brake hose at the two fixing points.

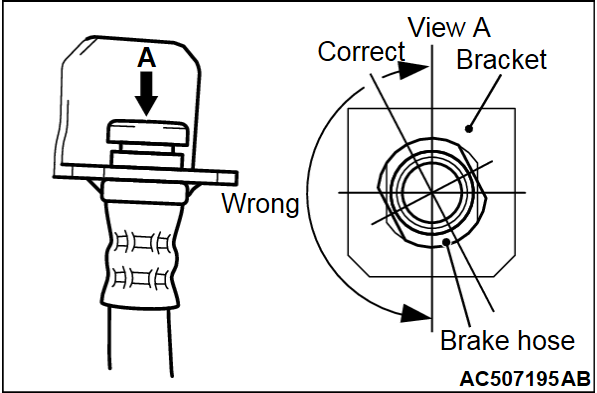

4. Twist the brake hose toward the lesser torsion between the brake hose and body-side bracket as shown in the figure, and fix it to the body-side bracket with a clip.
