REAR WHEEL ALIGNMENT CHECK AND ADJUSTMENT
1. Before the wheel alignment measurement, adjust the rear suspension, wheel, and tires in good condition.
2. Park the vehicle on a level surface to measure the wheel alignment.




TOE-IN
Standard value:
  • At the center of tire tread: 3 ± 2 mm (0.12 ± 0.08 inch)
  • Toe-in angle (per wheel): 0°02’ - 0°12’
If it is out of the standard range, adjust as follows:

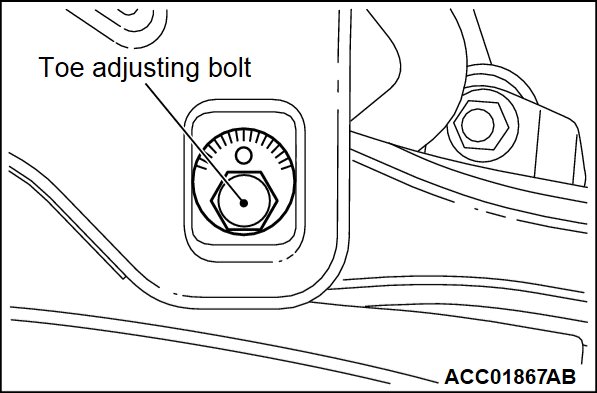

Turn the toe adjusting bolt (the mounting bolt inside the body on the control link) to adjust.
Left wheels: Clockwise (+) Toe in
Right wheels: Clockwise (-) Toe in
Toe-in varies approximately 3.2 mm(0.13 inch) for each scale mark. (equivalent to 0°16' of the toe angle for one side)




CAMBER
Standard value: -0°30' ± 0°45' (Difference between right and left wheels must be 0°30' or less)
note
  • The camber is pre-adjusted at factory and is not adjustable.

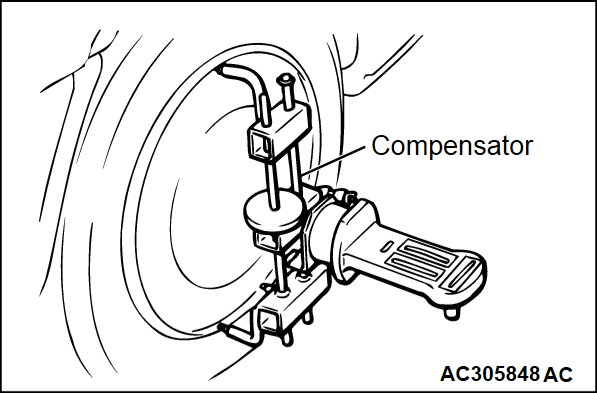

  • As for vehicles with aluminum wheel, use a compensator to measure the camber and caster.
