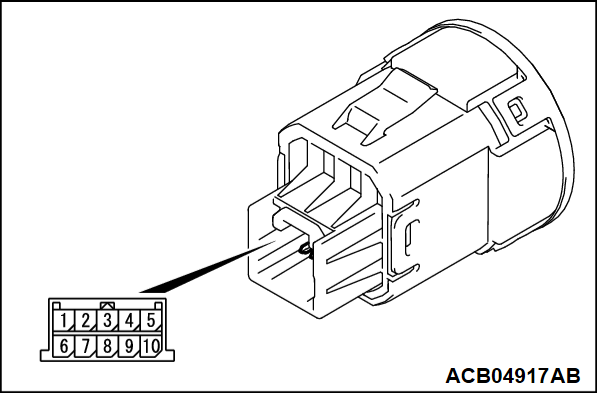

DRIVE MODE SELECTOR INSPECTION




Switch resistance check

Switch positionTerminal numberSpecified condition
OFF2 - 6No continuity
ONContinuity exists (2 Ω or less)
Switch positionTerminal numberSpecified condition
OFF2 - 6No continuity
ONContinuity exists (2 Ω or less)


Illumination check

Battery voltageTerminal numberNormal condition
At no energization10 (+) - 3 (-)Not illuminated
With current supplyIlluminated
Battery voltageTerminal numberNormal condition
At no energization10 (+) - 3 (-)Not illuminated
With current supplyIlluminated
