REMOVAL AND INSTALLATION


caution
  • Do not disassemble the rear wheel hub assembly.
  • The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
  • When the rear wheel hub assembly is removed/installed, make sure that the magnetic encoder (integrated with inner oil seal) does not contact with surrounding parts to avoid damage.
  • The part indicated with * is the bolt with friction coefficient stabilizer. In removal, replace it with a new one.

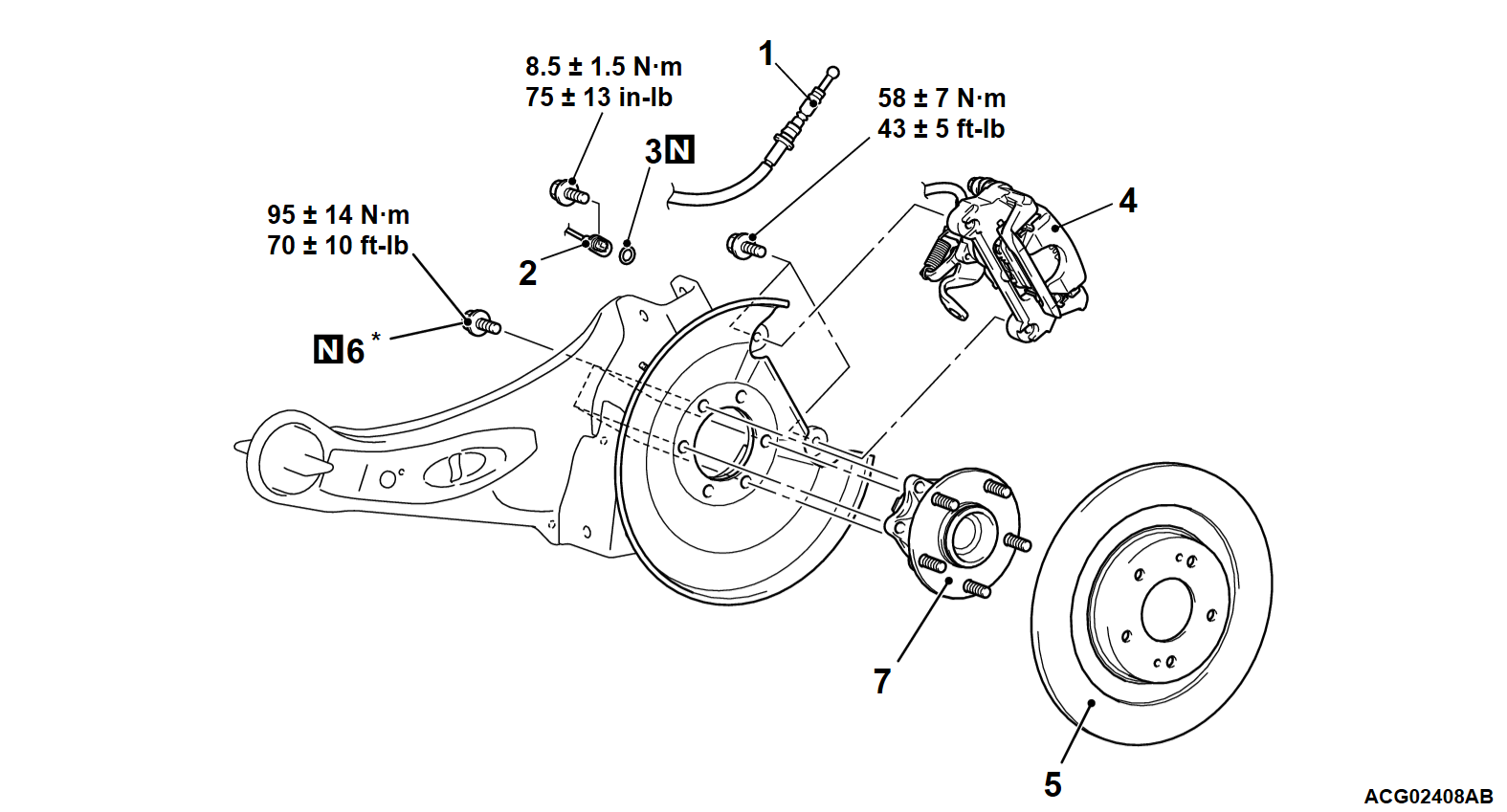

Removal steps
<<A>>>>A<<1.Parking brake rear cable connection <Rear brake caliper side>
2.Rear wheel speed sensor connection
3.O-ring
<<B>>4.Caliper assembly
5.Rear brake disc
6.Rear wheel hub assembly mounting bolt
7.Rear wheel hub assembly


REMOVAL SERVICE POINTS


<<A>> PARKING BRAKE REAR CABLE CONNECTION REMOVAL <REAR BRAKE CALIPER ASSEMBLY SIDE>
Compress the tabs on the cable retainer to pull out the parking rear cable through the parking lever hole of the rear brake caliper assembly.
note
  • When pulling out the parking rear cable, be careful not to damage the tab on the cable retainer.
  • Example: Insert the 12.8-mm hose clip (MB248923) into the parking rear cable. Then push the clip over the cable retainer to protect the tabs.




<<B>>CALIPER ASSEMBLY REMOVAL
1. Remove the caliper assembly with brake hose.
2. Secure the removed caliper assembly with a wire or other similar material at a position where it will not interfere with the removal and installation of the rear wheel hub assembly.




INSTALLATION SERVICE POINT


>>A<< PARKING BRAKE REAR CABLE CONNECTION INSTALLATION <REAR BRAKE CALIPER ASSEMBLY SIDE>
1. Guide the parking brake rear cable through the parking lever hole of the rear brake caliper assembly to the cable retainer.
2. Pull back the parking brake rear cable to assure it is tightly fastened to the cable retainer.
