1. Remove the front caliper assembly and front brake disc, and retain the front caliper assembly with a wire and the like to prevent from falling (Refer to

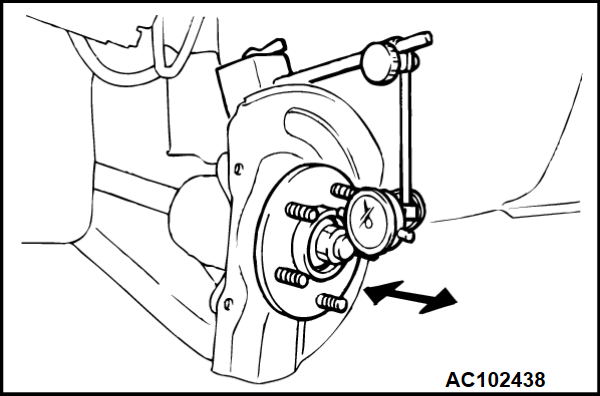

). 2. Set a dial gauge as shown in the figure. Move the hub in the axial direction and measure the looseness.Limit: 0.05 mm (0.002 inch)
3. If the play exceeds the limit, disassemble hub knuckle to check each component. If the front hub bearing is faulty, replace it.
4. After checking, install the front brake disc and the front caliper assembly.Tightening torque: 100 ± 10 N·m (74 ± 7 ft-lb)
