23A-PADDLE SHIFT SWITCH CHECK

PADDLE SHIFT SWITCH CHECK

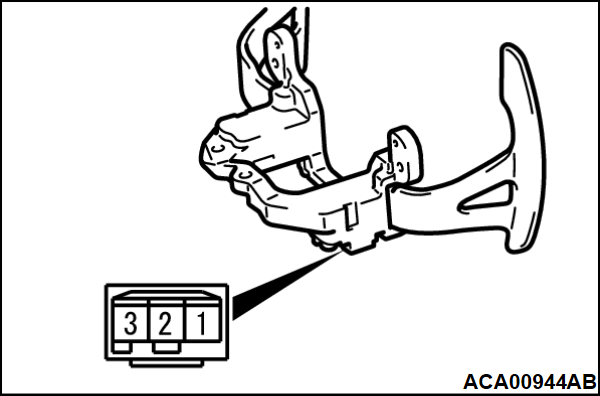

1. Check the continuity between the paddle shift switch connector terminals.

Standard value:

Paddle shift lever	Terminal number	Resistance value
Upshift and hold the lever.	2 - 3	Continuity exists (2 Ω or less).
Downshift and hold the lever.	1 - 2	Continuity exists (2 Ω or less).
No operation	No continuity between the terminals.

Paddle shift lever	Terminal number	Resistance value
Upshift and hold the lever.	2 - 3	Continuity exists (2 Ω or less).
Downshift and hold the lever.	1 - 2	Continuity exists (2 Ω or less).
No operation	No continuity between the terminals.

2. In the cases other than the above, replace the paddle shift assembly.
