REMOVAL AND INSTALLATION


caution
  • Before commencing work, use the scan tool to read out the serial No. from the old TCM, which you will replace, and make a note of it (Refer to ).
  • When the TCM is replaced, carry out the following operations.
    • Learning Procedure (Refer to .)

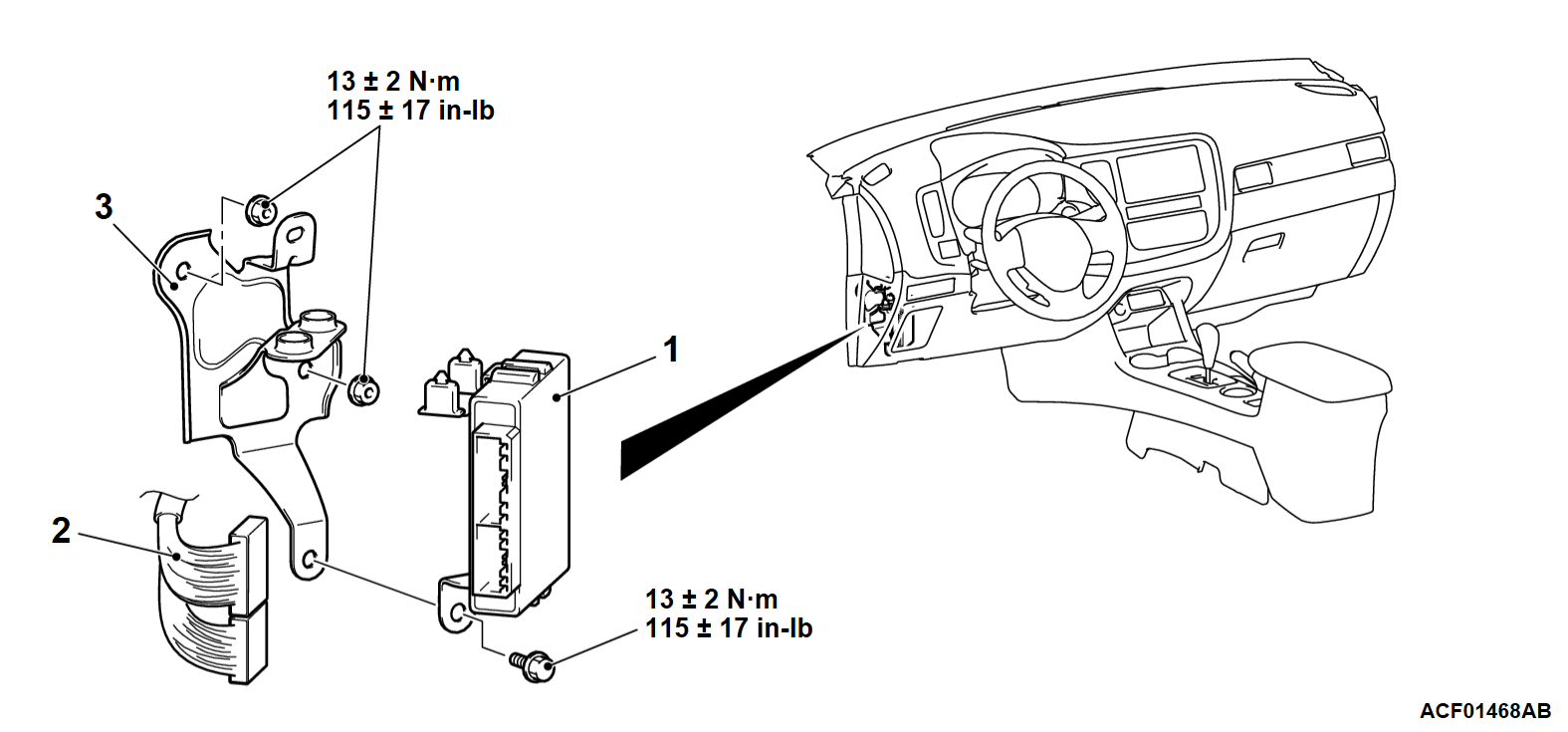

Removal steps
1.TCM
2.Harness connector
3.TCM bracket
