DTC P1706: Accelerator Pedal Position Sensor Information




DTC SET CONDITIONS
With the vehicle speed more than 5 km/h (3.1 mph), and with the output shaft speed sensor detected normal or abnormal, the APS signal seizure is detected for 5 seconds.


MONITOR EXECUTION
  • Vehicle speed 5 km/h (3.1 mph) or more


MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
  • Not applicable
Sensor (The sensor below is determined to be normal)
  • Not applicable

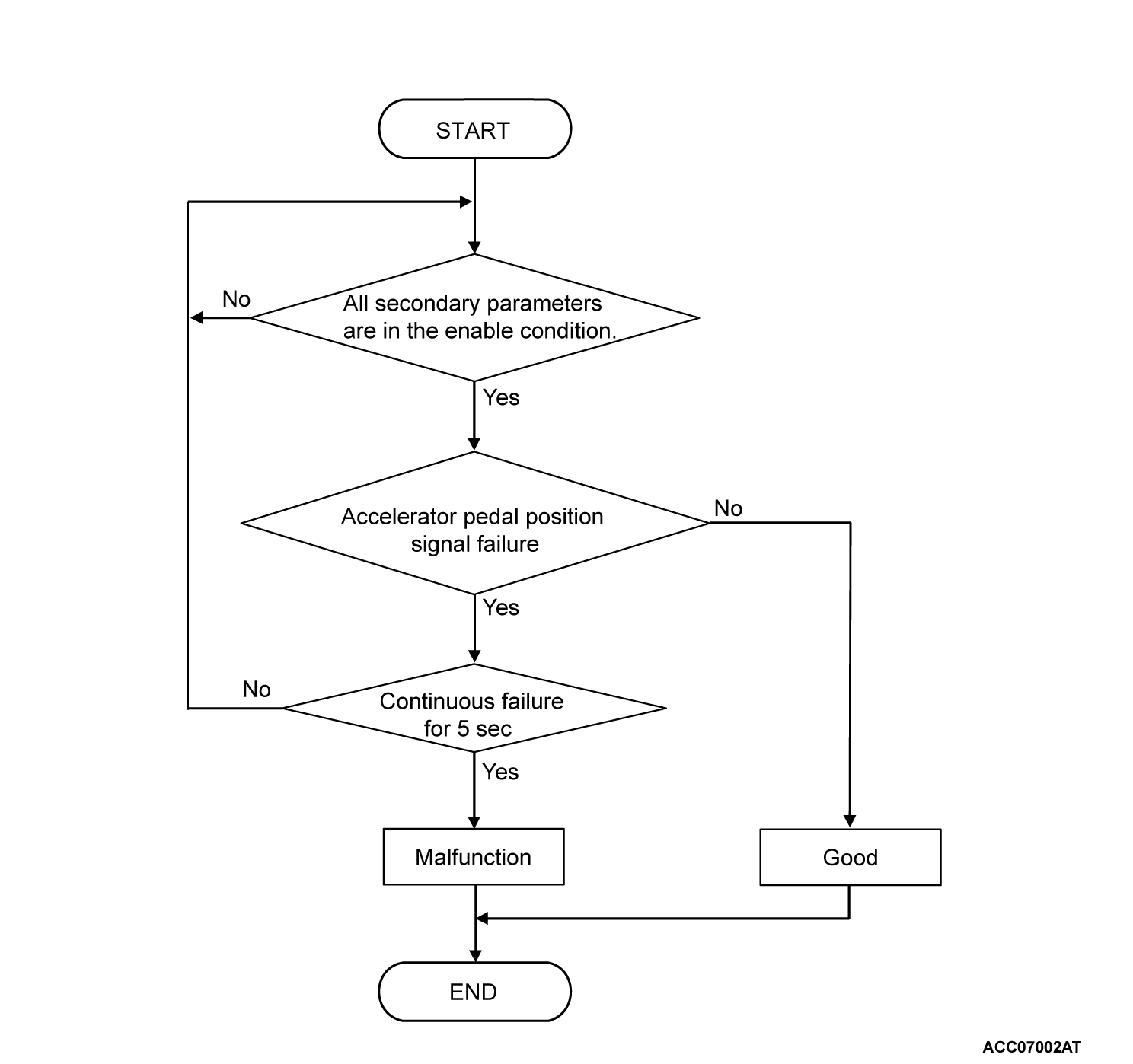

LOGIC FLOW CHARTS (Monitor Sequence)


DTC SET CONDITIONS
Check Conditions
  • TCM is started: more than 1.05 seconds.
  • Vehicle speed: 5 km/h (3.1 mph) or more.
Judgment Criteria
  • Accelerator pedal position sensor signal: fail. (5 seconds)


OBD-II DRIVE CYCLE PATTERN
With the ignition switch ON, maintain the status for 10 seconds or more.


PROBABLE CAUSES
  • Malfunction of the CAN
  • Malfunction of the ECM
  • Damaged harness or connector
  • Malfunction of the accelerator pedal position sensor



DIAGNOSIS
STEP 1. Is the DTC for ECM displayed?
Check that the failure related to the engine does not occur.
Is the check result normal?
Go to Step 2.
Repair or replace the failure section.

STEP 2. Check the accelerator pedal position sensor and ECM side main unit and connector wiring.
Is the check result normal?
Go to Step 3.
Repair or replace the failure section.

STEP 3. Erase the DTC, and drive the vehicle for a while.
Check that the normal code is displayed.
Is the check result normal?
The procedure is complete.
Return to Step 1.
