TRANSMISSION RANGE SWITCH CHECK

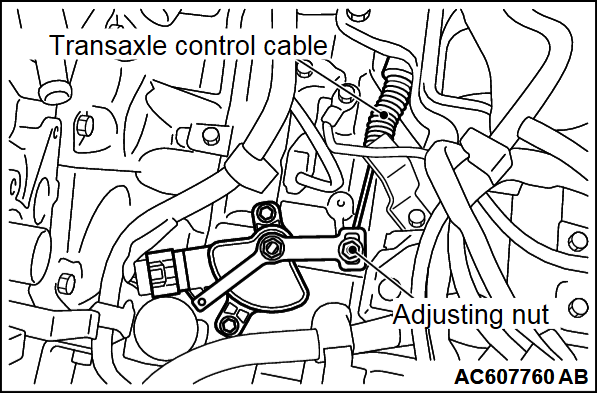

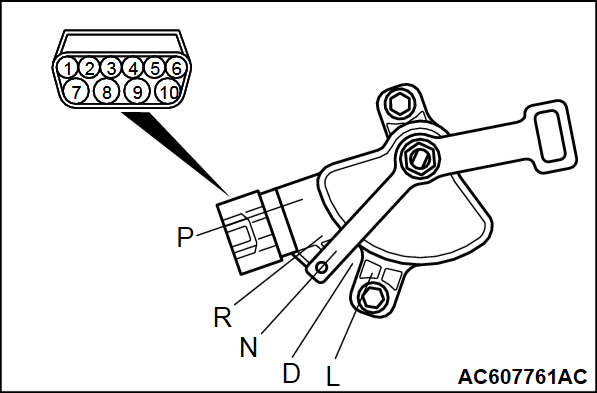

Selector lever positionTerminal connection of testerSpecified condition
P3 - 2, 7 - 10Continuity exists (2 Ω or less).
Other than aboveNo continuity
R3 - 9Continuity exists (2 Ω or less).
Other than aboveNo continuity
N3 - 8, 7 - 10Continuity exists (2 Ω or less).
Other than aboveNo continuity
D3 - 5Continuity exists (2 Ω or less).
Other than aboveNo continuity
L3 - 1Continuity exists (2 Ω or less).
Other than aboveNo continuity
Selector lever positionTerminal connection of testerSpecified condition
P3 - 2, 7 - 10Continuity exists (2 Ω or less).
Other than aboveNo continuity
R3 - 9Continuity exists (2 Ω or less).
Other than aboveNo continuity
N3 - 8, 7 - 10Continuity exists (2 Ω or less).
Other than aboveNo continuity
D3 - 5Continuity exists (2 Ω or less).
Other than aboveNo continuity
L3 - 1Continuity exists (2 Ω or less).
Other than aboveNo continuity
