SPARK PLUG CHECK AND CLEANING
Required Special Tool
  • MB992273: Spark Plug Brush
caution
  • Never attempt to adjust the gap of the iridium plug.
  • Do not attempt to clean the iridium plug using a wire brush because it may result in damage to the electrode. When the iridium plug is cleaned, use a plug cleaner, sand blast type, or special tool MB992273.
noteObey the maintenance interval of the vehicle for the spark plug replacement. If the plug gap and insulation resistance are normal, check the plug state and clean it if necessary.


SPARK PLUG GAP CHECK

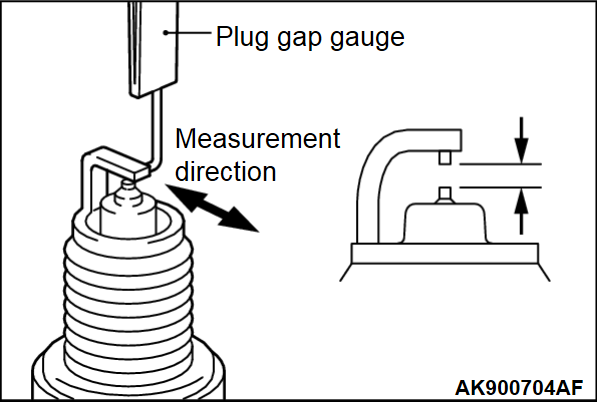

Check the plug gap with the wire type plug gauge. Replace it if the limit is exceeded.
Standard value: 1.0 - 1.1 mm (0.040 - 0.043 inch)
Limit: 1.3 mm (0.051 inch)



SPARK PLUG INSULATION RESISTANCE CHECK

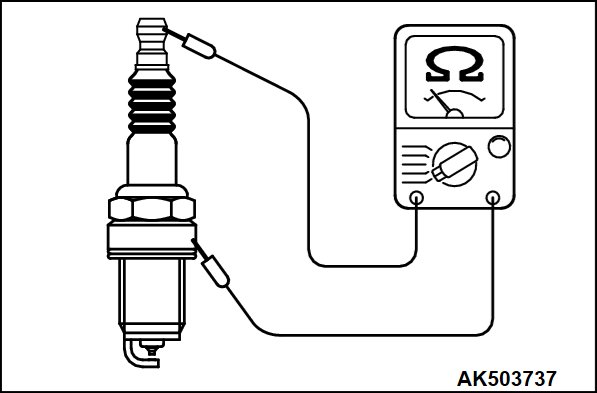

1. Measure the insulation resistance of the spark plug. If the insulation resistance of the spark plug is under the limited value, clean the spark plug (Refer to ).
2. After cleaning, measure the insulation resistance again. Replace the plug unless it is within the limited value.
  • Limit: Minimum 10 MΩ



SPARK PLUG CLEANING
1. Sufficiently apply the brake cleaner to the plug end.
noteRepeatedly applying the brake cleaner is acceptable during the cleaning.

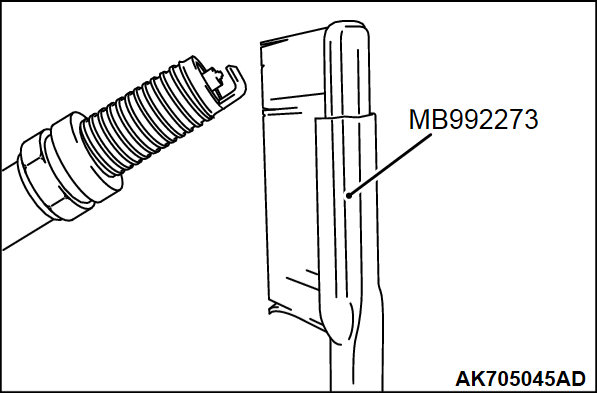

2. Using special tool MB992273, intensively clean the electrode for 1 to 2 minutes.
noteEven if using strong force, the electrode is not damaged.
noteIn case of insufficient cleaning, it is permissible to take longer than 2 minutes for cleaning.
3. After the cleaning, sufficiently remove and then dry both of the carbon and the brake cleaner on the plug, using a waste cloth or air blowing.
