REMOVAL AND INSTALLATION <2.4L Engine>


Pre-removal Operation
  • Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Removal (Refer to GROUP 51 - Under Cover ).
  • Drive Belt Removal (Refer to GROUP 11A - Crankshaft Pulley ).
Post-installation Operation
  • Drive Belt Installation (Refer to GROUP 11A - Crankshaft Pulley ).
  • Drive Belt Tension Check (Refer to GROUP 11A - On-vehicle Service, Drive Belt Tension Check ).
  • Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Installation (Refer to GROUP 51 - Under Cover ).

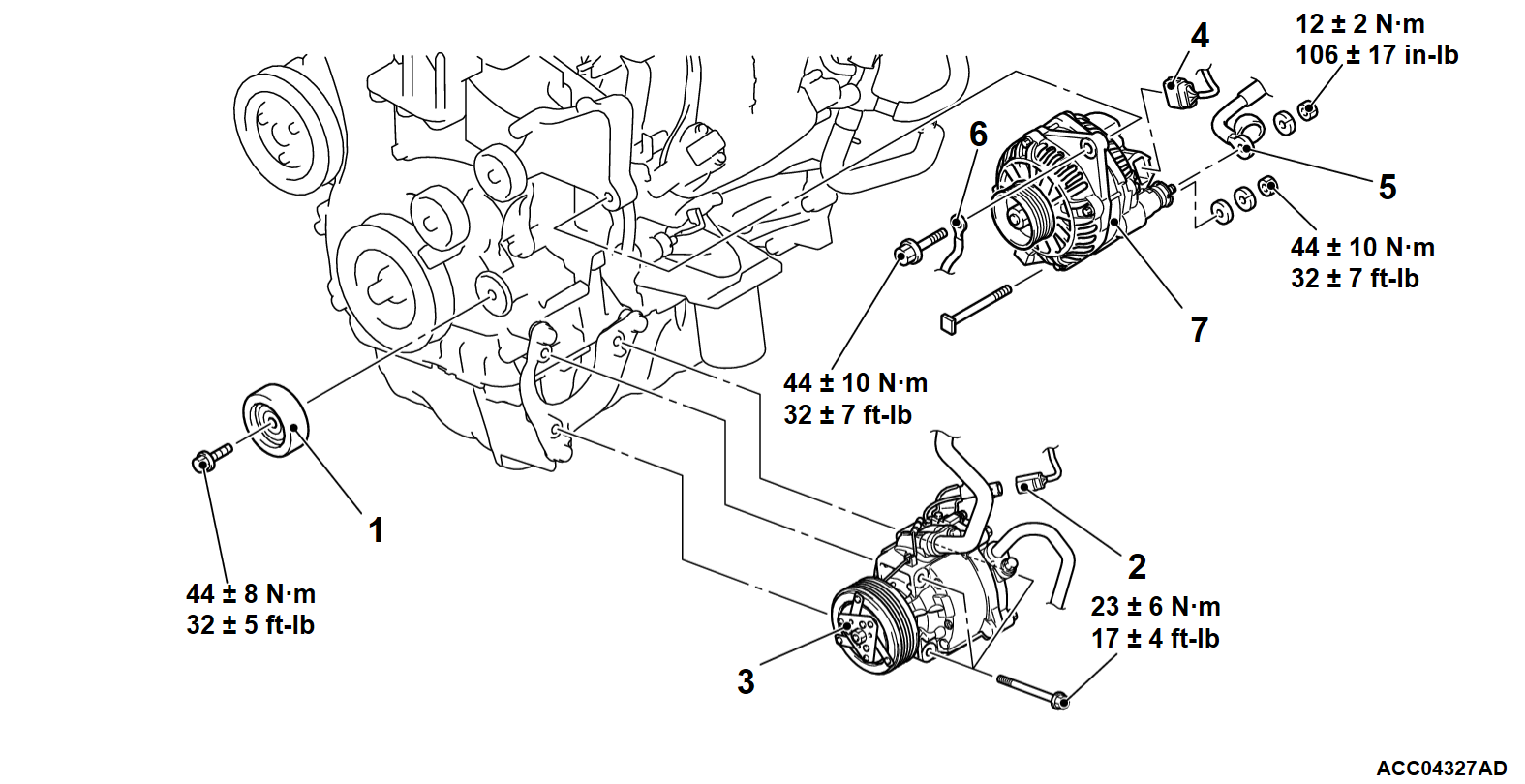

Removal steps
1.Idler pulley
2.A/C compressor and clutch assembly connector
<<A>>>>C<<3.A/C compressor and clutch assembly
4.Generator connector
5.Generator terminal
>>B<<6.Grounding cable connection
<<B>>>>A<<7.Generator assembly


REMOVAL SERVICE POINTS


<<A>> A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL
1. Remove the A/C compressor and clutch assembly together with the hose from the bracket.
2. Tie the removed A/C compressor and clutch assembly with a string at a position where they will not interfere with the removal and installation of the generator assembly.




<<B>> GENERATOR ASSEMBLY REMOVAL
Remove the generator assembly to the downside.



INSTALLATION SERVICE POINTS


>>A<< GENERATOR ASSEMBLY INSTALLATION
1. Temporarily tighten generator bolt and nut.
2. Tighten the nut on the lower side to the specified torque.
Tightening torque: 44 ± 10 N·m (32 ± 7 ft-lb)
3. Tighten the bolt on the upper side to the specified torque.
Tightening torque: 44 ± 10 N·m (32 ± 7 ft-lb)




>>B<< GROUNDING CABLE CONNECTION

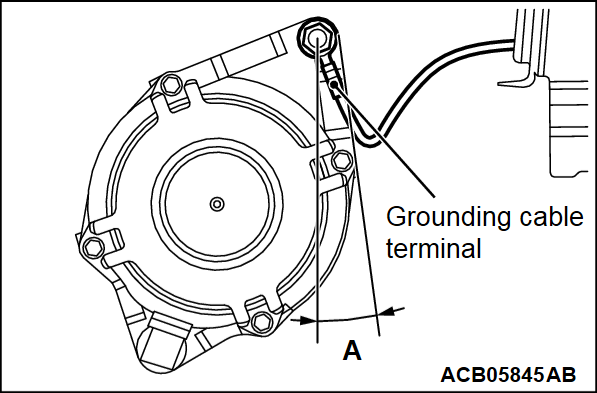

Install the grounding cable within the area marked with A in the illustration.




>>C<< A/C COMPRESSOR AND CLUTCH ASSEMBLY INSTALLATION
Tighten A/C compressor and clutch assembly mounting bolts to the specified torque in the order of number shown in the illustration.
Tightening torque: 23 ± 6 N·m (17 ± 4 ft-lb)
