COOLING FAN RELAY CONTINUITY CHECK
<2.4 L Engine>

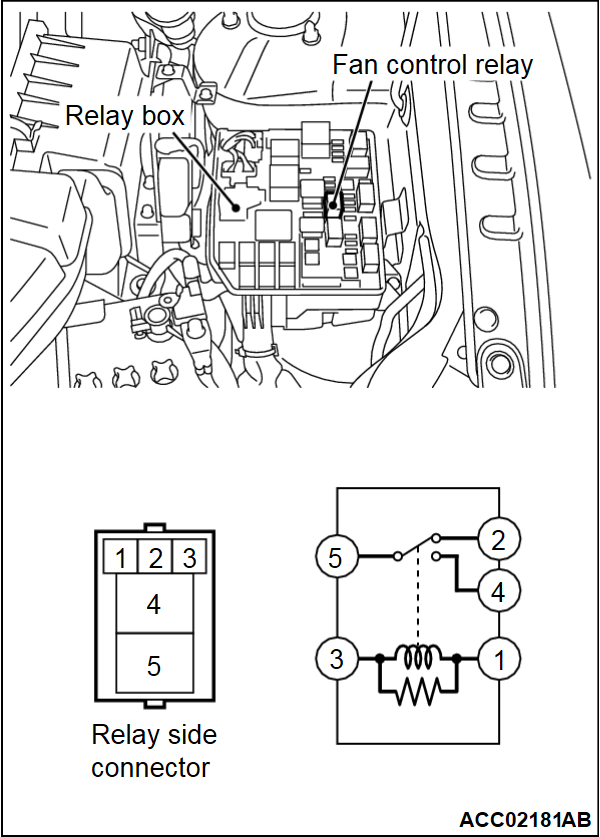

FAN CONTROL RELAY CHECK

Battery voltageTerminal No. to be connected to testerContinuity test results
Not applied2 - 5Continuity (Less than 2 Ω)
4 - 5Open circuit
Connect terminal No. 3 and battery (+) terminal.
Connect terminal No. 1 and battery (-) terminal.
2 - 5Open circuit
4 - 5Continuity (Less than 2 Ω)
Battery voltageTerminal No. to be connected to testerContinuity test results
Not applied2 - 5Continuity (Less than 2 Ω)
4 - 5Open circuit
Connect terminal No. 3 and battery (+) terminal.
Connect terminal No. 1 and battery (-) terminal.
2 - 5Open circuit
4 - 5Continuity (Less than 2 Ω)

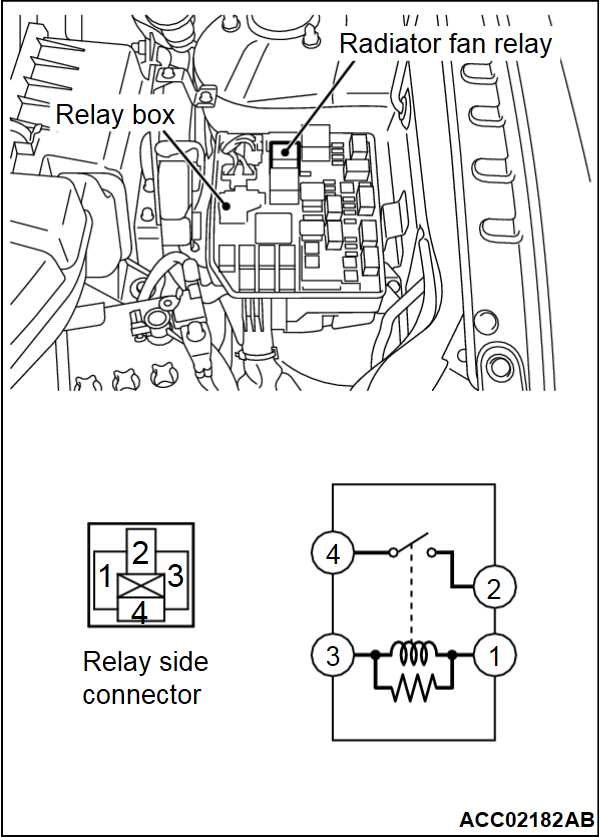

RADIATOR FAN RELAY CHECK

Battery voltageTerminal No. to be connected to testerContinuity test results
Not applied2 - 4Open circuit
Connect terminal No. 3 and battery (+) terminal.
Connect terminal No. 1 and battery (-) terminal.
Continuity (Less than 2 Ω)
Battery voltageTerminal No. to be connected to testerContinuity test results
Not applied2 - 4Open circuit
Connect terminal No. 3 and battery (+) terminal.
Connect terminal No. 1 and battery (-) terminal.
Continuity (Less than 2 Ω)

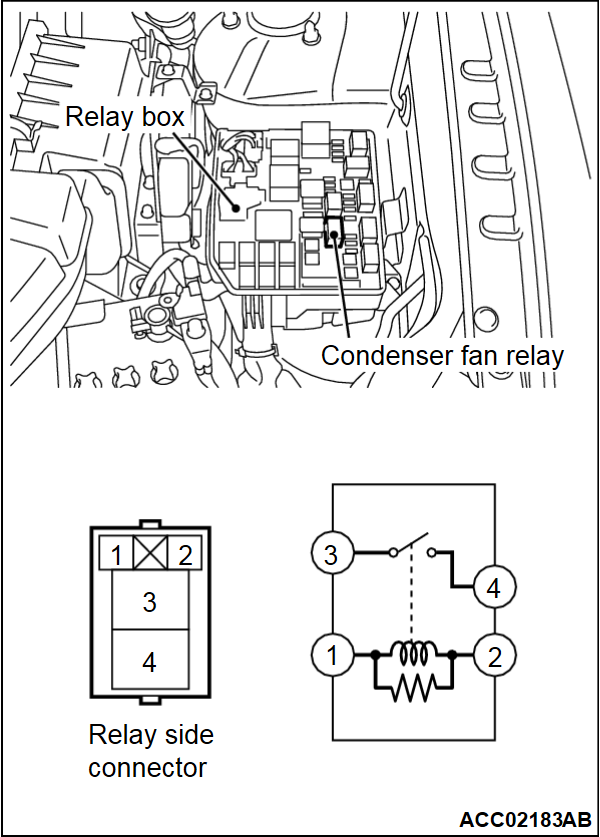

CONDENSER FAN RELAY CHECK

Battery voltageTerminal No. to be connected to testerContinuity test results
Not applied3 - 4Open circuit
Connect terminal No.1 and battery (+) terminal.
Connect terminal No.2 and battery (-) terminal.
Continuity (Less than 2 Ω)
Battery voltageTerminal No. to be connected to testerContinuity test results
Not applied3 - 4Open circuit
Connect terminal No.1 and battery (+) terminal.
Connect terminal No.2 and battery (-) terminal.
Continuity (Less than 2 Ω)
