REMOVAL AND INSTALLATION <2.4 L ENGINE>


Pre-removal Operation
  • Engine Coolant Draining (Refer to ).
  • Generator and Others Belt Removal (Refer to GROUP 11A - Crankshaft Pulley ).
Post-installation Operation
  • Generator and Others Belt Installation (Refer to GROUP 11A - Crankshaft Pulley ).
  • Generator and Others Belt Tension Check (Refer to GROUP 11A - On-vehicle Service, Drive Belt Tension Check and Adjustment ).
  • Engine Coolant Refilling (Refer to ).

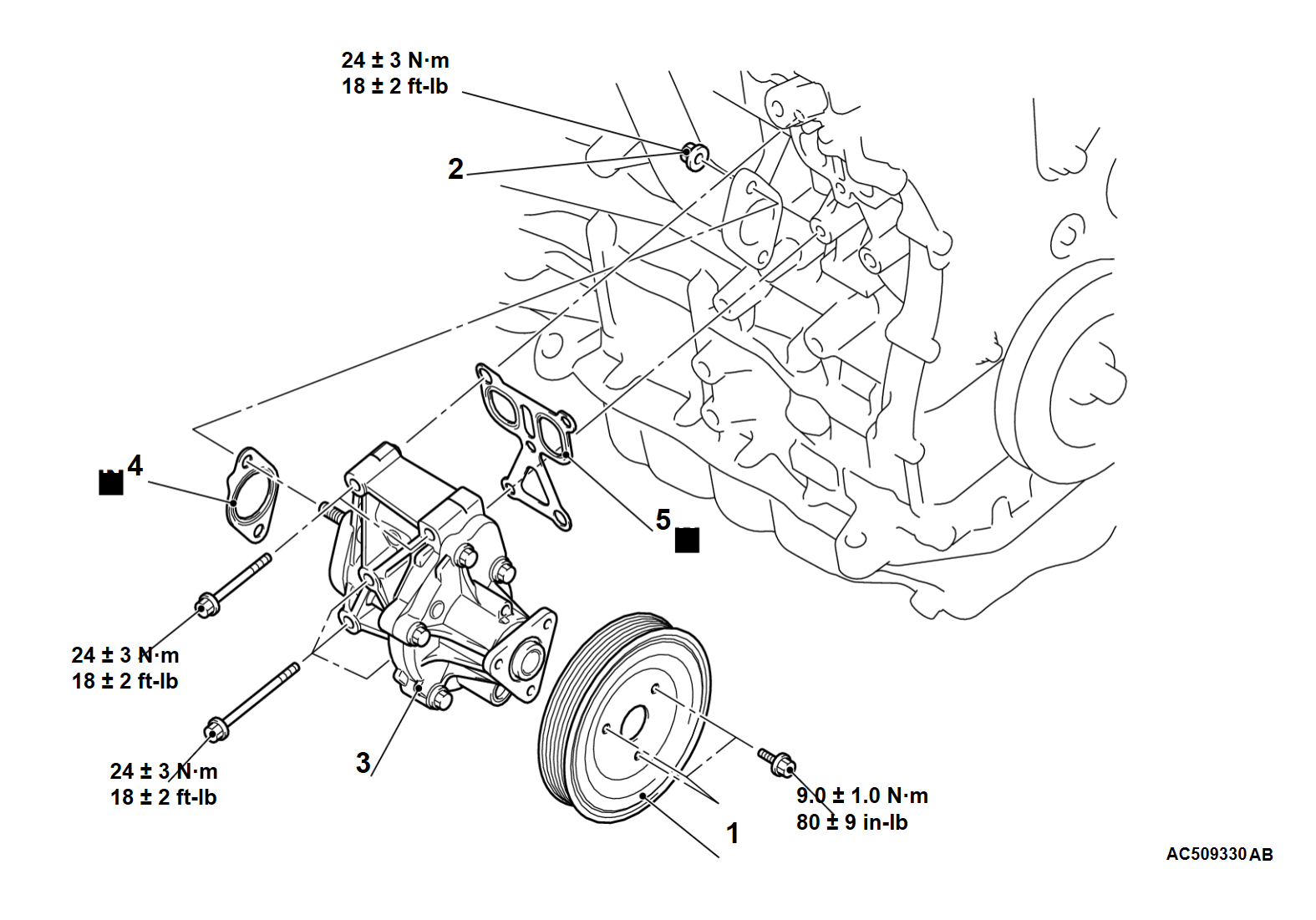

Removal steps
1.Water pump pulley
2.Water inlet pipe mounting nuts
3.Water pump
Water inlet pipe gasket
5.Water pump gasket
