DISASSEMBLY AND ASSEMBLY


<FUEL PUMP MODULE>
noteFor installation and removal, refer to Fuel Pump Module Replacement in On-vehicle Service (refer to .)

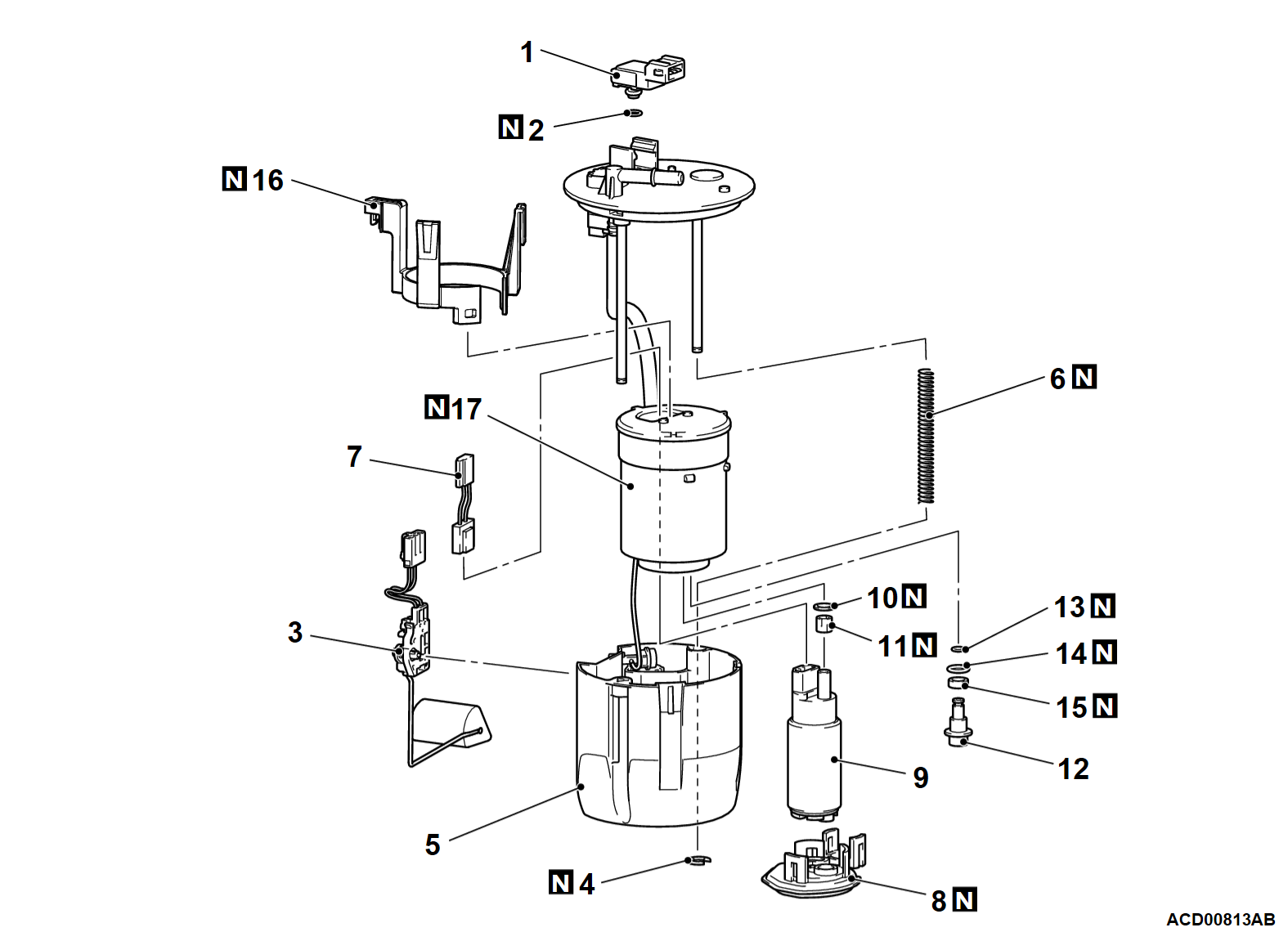

<FWD>
Disassembly steps
1.Fuel tank differential pressure sensor
>>A<<2.O-ring
3.Fuel gauge unit
4.Clip
5.Subtank assembly
6.Spring
7.Fuel pump wiring harness
8.Fuel filter
9.Fuel pump assembly
>>A<<10.O-ring
11.Spacer
12.Fuel tank pump pressure regulator
>>A<<13.O-ring
>>A<<14.O-ring
15.Back up ring
16.Bracket
17.Fuel flange and filter assembly

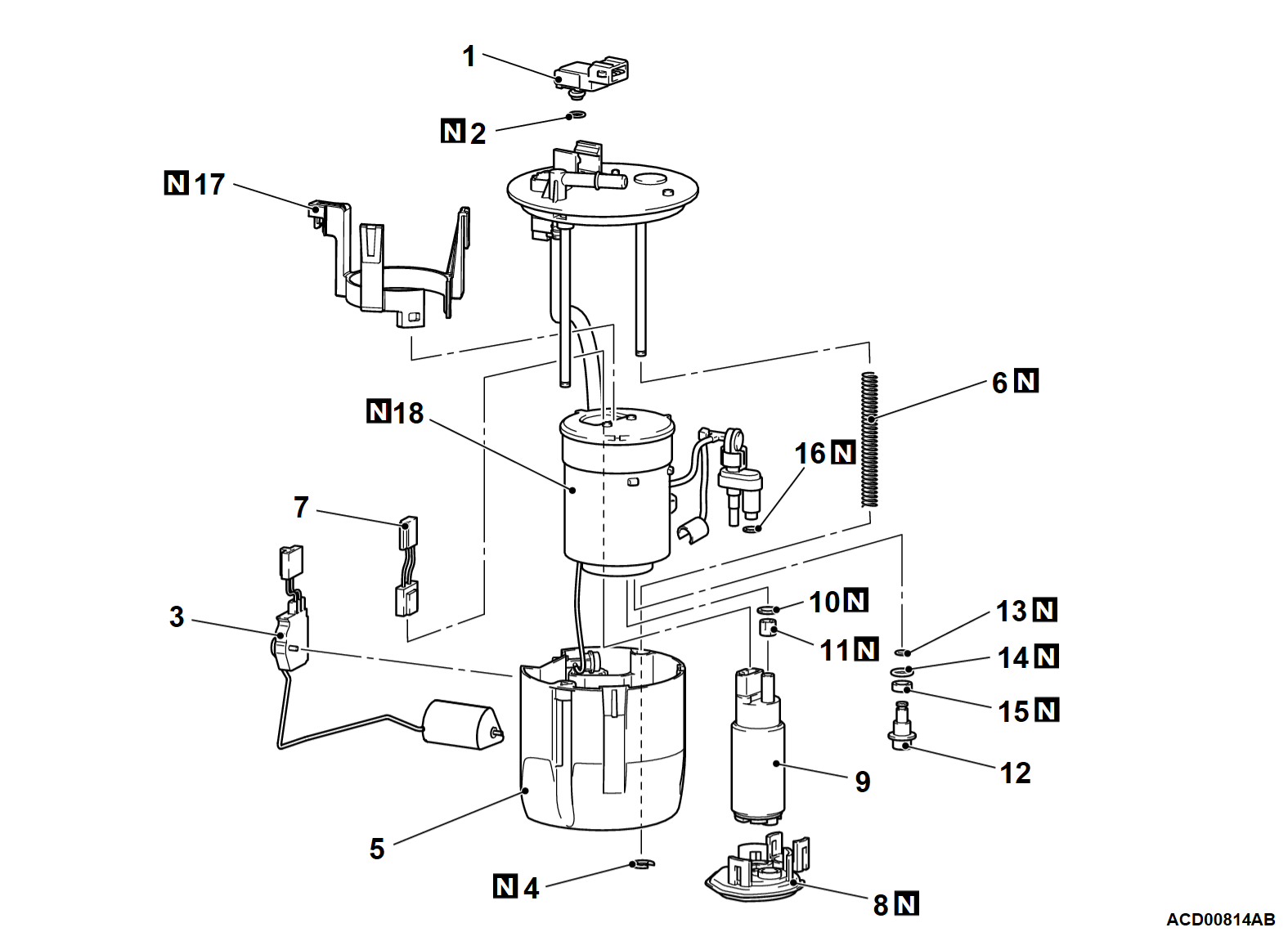

<AWD>
Disassembly steps
1.Fuel tank differential pressure sensor
>>A<<2.O-ring
3.Fuel gauge unit
4.Clip
5.Subtank assembly
6.Spring
7.Fuel pump wiring harness
8.Fuel filter
9.Fuel pump assembly
>>A<<10.O-ring
11.Spacer
12.Fuel tank pump pressure regulator
>>A<<13.O-ring
>>A<<14.O-ring
15.Back up ring
>>A<<16.O-ring
17.Bracket
18.Fuel flange and filter assembly


ASSEMBLY SERVICE POINT


>>A<< O-RING INSTALLATION
To avoid twisting and damage, apply gasoline before installation of the O-ring.
