DTC P0431: Warm Up Catalyst Efficiency Below Threshold (bank 2)




TECHNICAL DESCRIPTION
  • The signal from the left bank heated oxygen sensor (rear) differs left bank linear air-fuel ratio sensor, because the catalytic converter purifies exhaust gas. When the catalytic converter has deteriorated, the signal left bank linear air-fuel ratio sensor becomes similar to the left bank heated oxygen sensor (rear).
  • The ECM compares the output of the left bank linear air-fuel ratio sensor and left bank heated oxygen sensor (rear) signals.


DESCRIPTIONS OF MONITOR METHODS
  • Left bank linear air-fuel ratio sensor and left bank heated oxygen sensor (rear) rich/lean switching frequencies are nearly equal.


MONITOR EXECUTION
  • Continuous


MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC set in memory for the item monitored below)
  • Left bank linear air-fuel ratio sensor monitor
  • Left bank heated oxygen sensor (rear) monitor
  • Left bank linear air-fuel ratio sensor heater monitor
  • Left bank heated oxygen sensor (rear) heater monitor
  • Left bank linear air-fuel ratio sensor inactive monitor
  • Left bank heated oxygen sensor offset voltage monitor
  • Misfire monitor
  • Fuel system monitor
  • Air/fuel ratio feedback monitor


Sensor (The sensor below is determined to be normal)
  • Mass airflow sensor
  • Engine coolant temperature sensor
  • Intake air temperature sensor
  • Barometric pressure sensor
  • Throttle position sensor
  • Accelerator pedal position sensor



DTC SET CONDITIONS

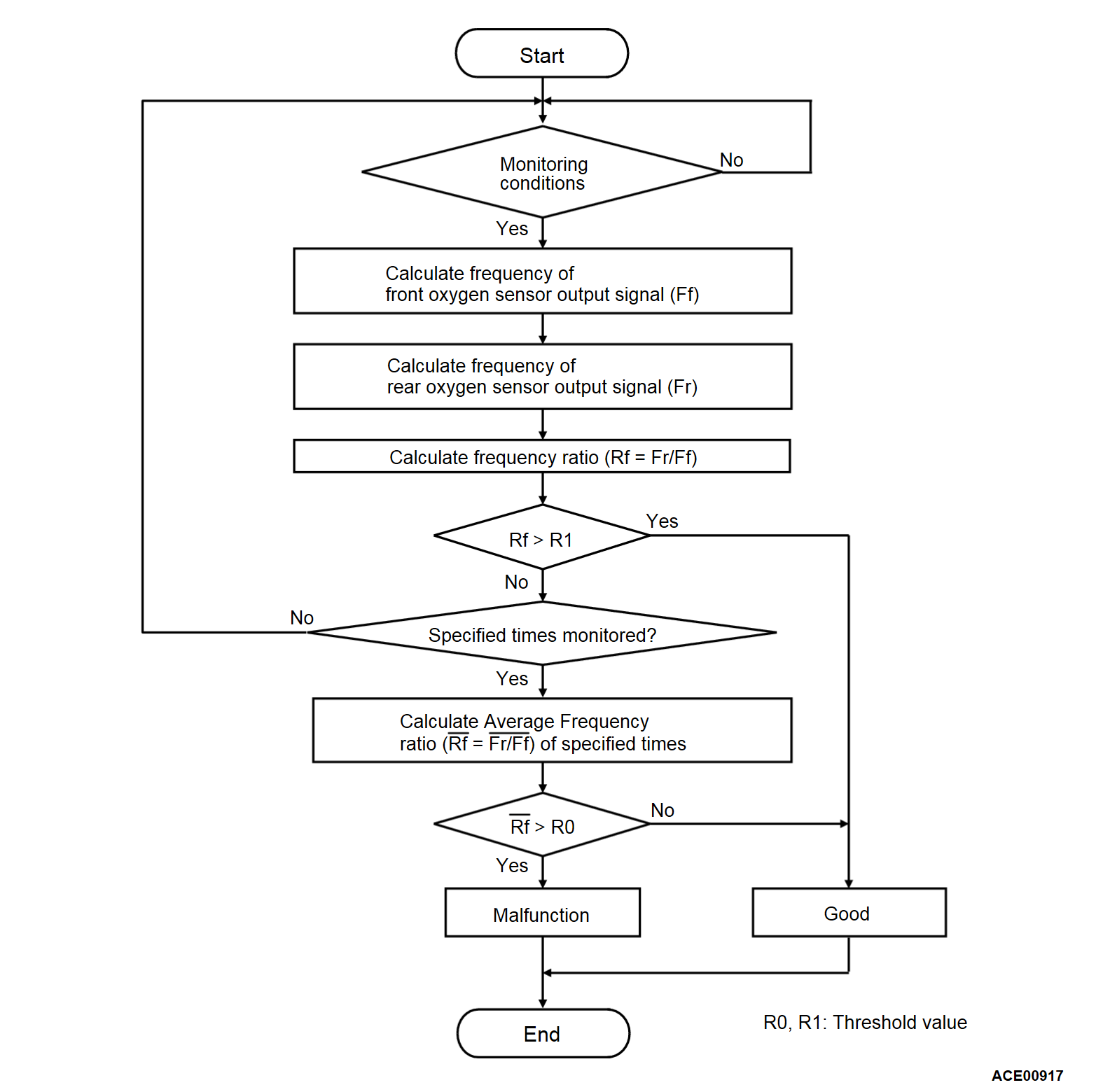

Logic Flow Chart


Check Conditions
  • Engine speed is lower than 3,500 r/min.
  • Accelerator pedal is depressed.
  • Mass airflow is between 14 and 41 g/sec.
  • More than 3 seconds have elapsed after the above-mentioned three conditions have been met.
  • More than 70 seconds have passed since the engine starting sequence was completed.
  • Heated oxygen sensor (rear) output voltage with ground offset is more than 0.4 volt.
  • Intake air temperature is higher than -10°C (14°F).
  • Barometric pressure is higher than 76 kPa (22.4 in.Hg).
  • Under the closed loop air/fuel ratio control.
  • Vehicle speed is 1.5 km/h (1.0 mph) or more.
  • The ECM monitors the maximum 3 times per drive cycle under these conditions.
  • Short-term fuel trim is higher than -25 percent and lower than +25 percent.
  • The cumulative mass airflow is higher than 1,638 g.


Judgment Criteria
  • When the monitoring for 12 seconds is carried out 5 times, the frequency ratio of left bank heated oxygen sensor (rear) and left bank linear air-fuel ratio sensor signals is the specified value or more.
    noteThe specified value varies depending on the average air flow rate.


FAIL-SAFE AND BACKUP FUNCTION
  • None


OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 4 .


TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
  • Catalytic converter deteriorated (Exhaust leak).



DIAGNOSIS
Required Special Tools:
  • MB992744: Vehicle Communication Interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite Main Harness A
  • MB992747: V.C.I.-Lite USB Cable Short
  • MB992748: V.C.I.-Lite USB Cable Long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
STEP 1. Replace the left bank side catalytic converter.
(1) Replace the catalytic converter.
(2) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 4 .
(3) Check the diagnostic trouble code (DTC).
Is DTC P0431 set?
Replace the ECM (Refer to Removal and Installation ).
The inspection is complete.
