VARIABLE VALVE LIFT CONTROL MOTOR RELAY CONTINUITY CHECK

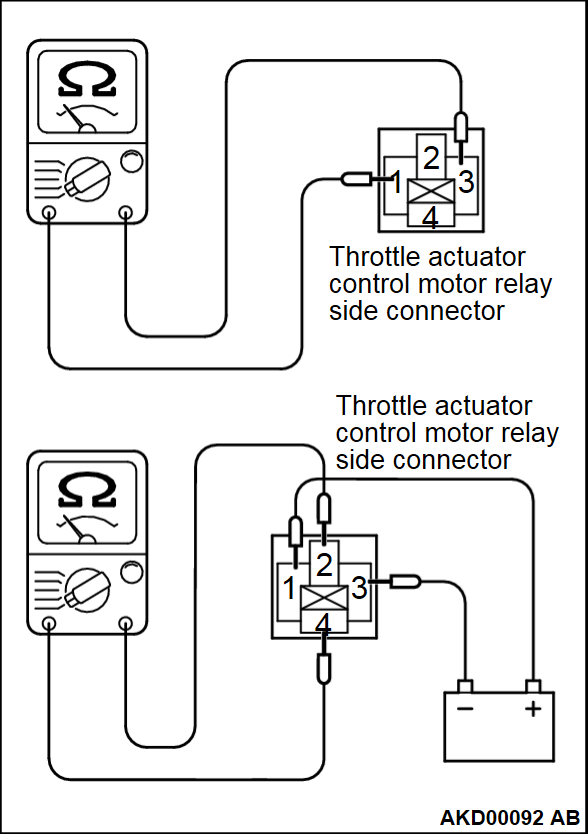

Inspect the Injector relay and throttle actuator control motor relay for continuity in accordance with the chart shown below.| BATTERY VOLTAGE | TERMINAL NO. TO BE CONNECTED TO BATTERY | TERMINAL NO. TO BE CONDUCTED |
| Not supplied | - | 1 - 3 |
| Supplied | 1 - 3 | 2 - 4 |
