VALVE LIFT CONTROL MOTOR CHECK


1. Disconnect the variable valve lift control motor connector.

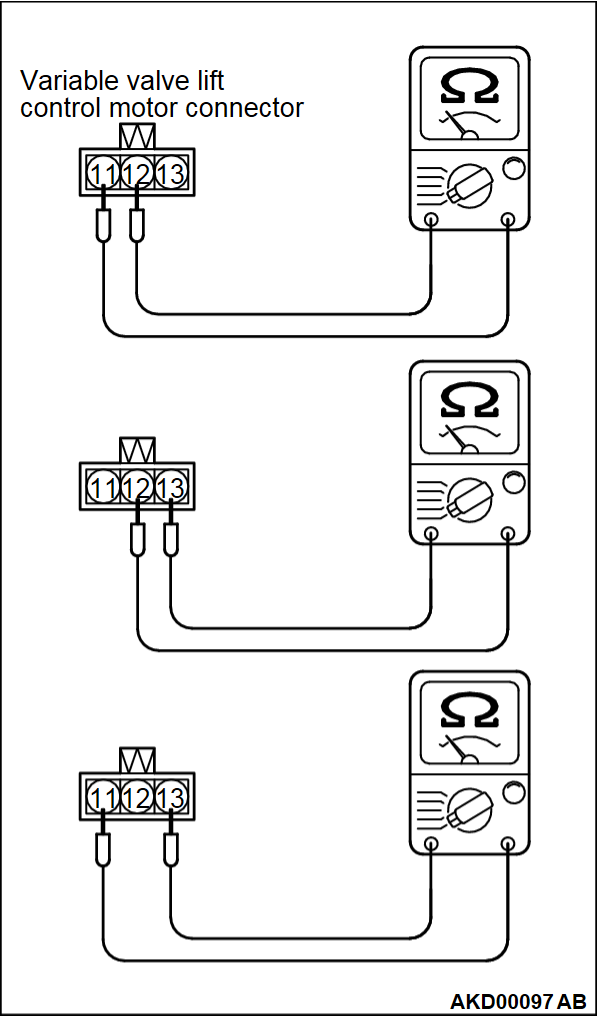

2. Measure the resistance between the terminals of the connector at the variable valve lift control motor.
Standard value:

Tester connection terminalNormal condition
11 - 12Continuity
12 - 13
11 - 13
Tester connection terminalNormal condition
11 - 12Continuity
12 - 13
11 - 13
noteSubstantially small resistance valve {36 to 125 mΩ [at 20°C (68°F)]} is displayed, but it is normal as long as continuity exists.
3. If the resistance deviates from the standard value, replace variable valve lift control motor.
