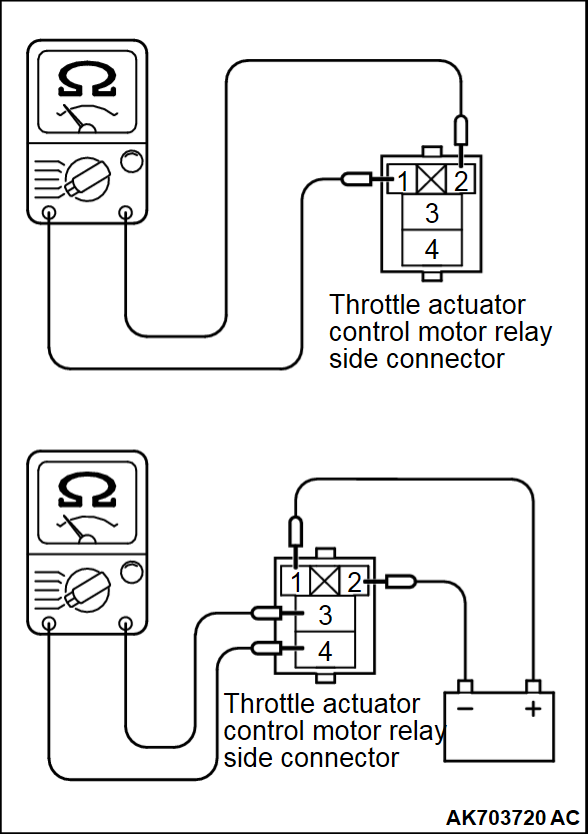

THROTTLE ACTUATOR CONTROL MOTOR RELAY CONTINUITY CHECK
Inspect the throttle actuator control motor relay for continuity in accordance with the chart shown below.BATTERY VOLTAGE | TERMINAL NO. TO BE CONNECTED TO BATTERY | TERMINAL NO. TO BE CONDUCTED |
Not supplied | - | 1 - 2 |
Supplied | 1 - 2 | 3 - 4 |
