FUEL PUMP RELAY CONTINUITY CHECK

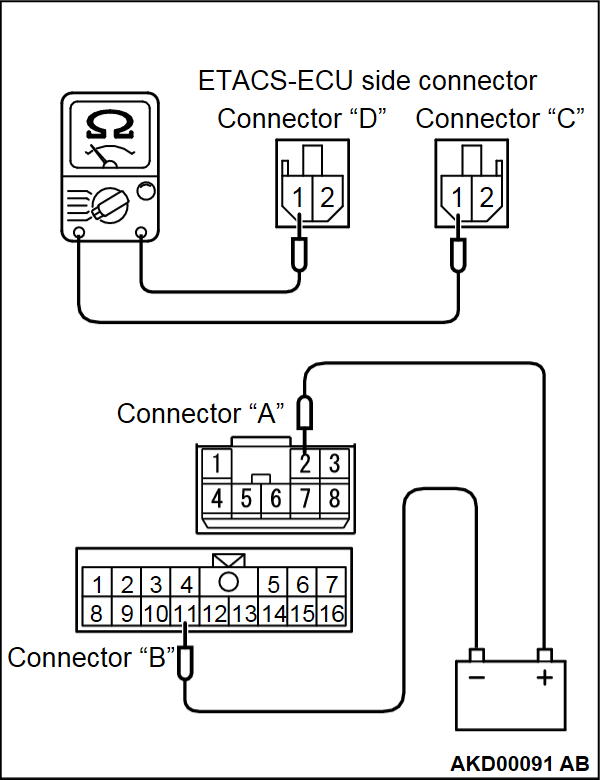

Inspect the fuel pump relay for continuity in accordance with the chart shown below.
BATTERY VOLTAGE
TERMINAL NO. TO BE CONNECTED TO BATTERY
TERMINAL NO. TO BE CONDUCTED
Supplied

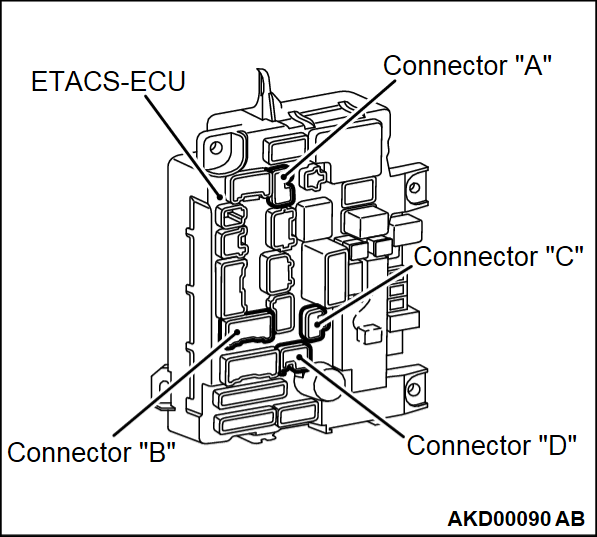

2 (Connector "A") - 11 (Connector "B")
1 (Connector "C") - 1 (Connector "D")
