INJECTOR CHECK




1. Disconnect the injector connector.

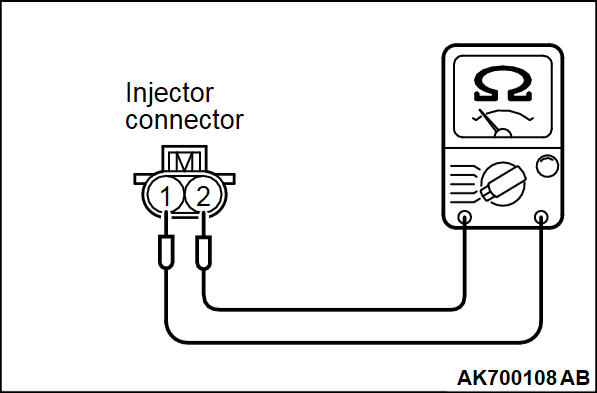

2. Measure the resistance between injector side connector terminals.
Standard value: 10.5 - 13.5 Ω [at 20°C (68°F)]
3. If not within specification, replace the injector.
4. Connect the injector connector.
