DTC P0201: Injector Circuit Malfunction - Cylinder 1, DTC P0202: Injector Circuit Malfunction - Cylinder 2, DTC P0203: Injector Circuit Malfunction - Cylinder 3, DTC P0204: Injector Circuit Malfunction - Cylinder 4, DTC P0205: Injector Circuit Malfunction - Cylinder 5, DTC P0206: Injector Circuit Malfunction - Cylinder 6

CIRCUIT OPERATION
• The injector power is supplied from the MFI relay (terminal No. 1).
• The PCM controls the injector by turning the power transistor in the PCM "ON" and "OFF".
TECHNICAL DESCRIPTION
• The amount of fuel injected by the injector is controlled by the amount of continuity time the coil is grounded by the PCM.
• A surge voltage is generated when the injectors are driven and the current flowing to the injector coil is shut off.
• The PCM checks this surge voltage.
DESCRIPTIONS OF MONITOR METHODS
Off-surge does not occur after injector is operated.
MONITOR EXECUTION
Continuous
MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
• Not applicable

Sensor (The sensor below is determined to be normal)
• Not applicable

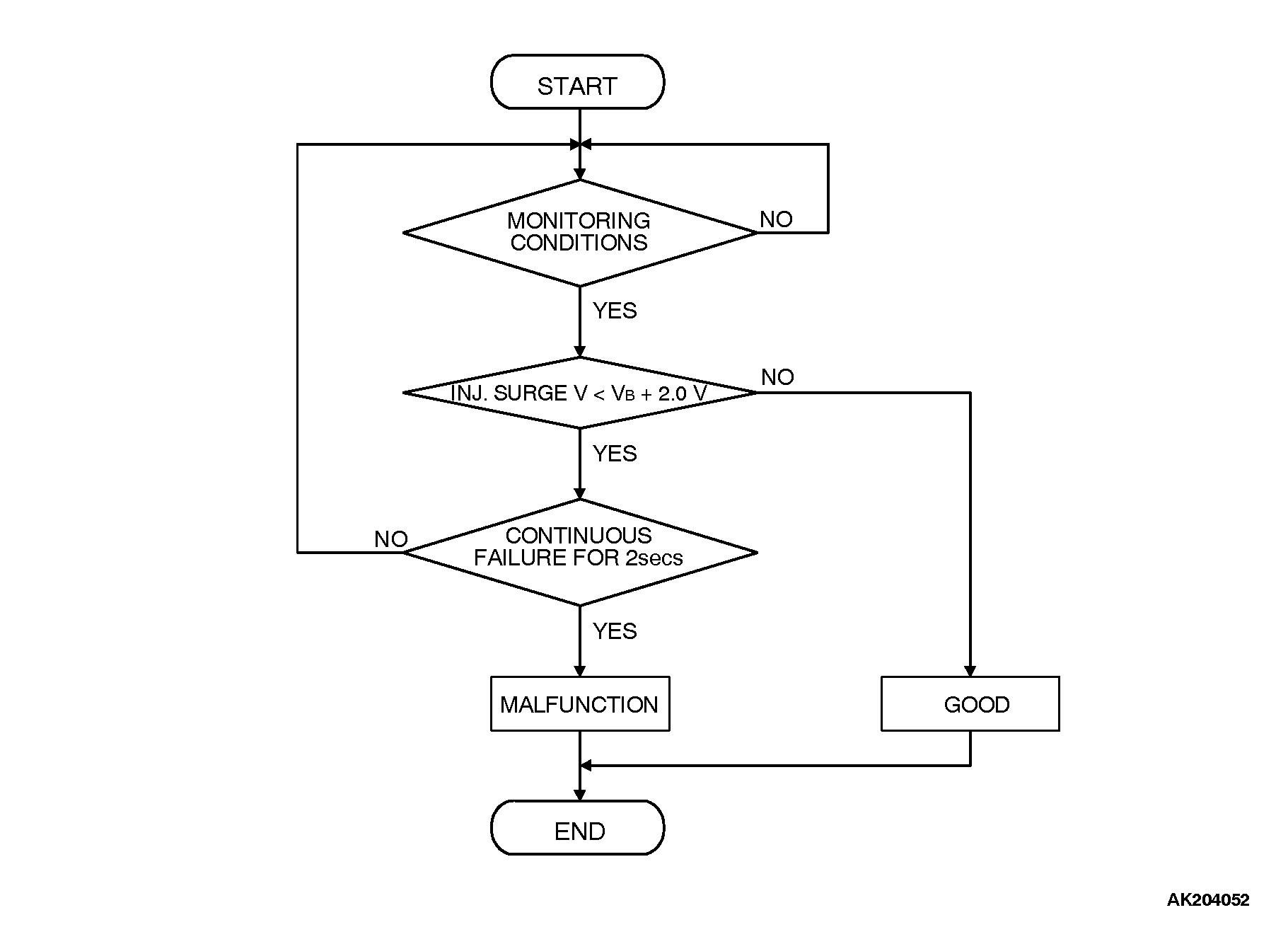

DTC SET CONDITIONS Logic Flow Chart


Check Conditions
Engine is running.

Judgment Criteria
• Injector coil surge voltage (battery positive voltage + 2 volts) has not been detected for two seconds.
OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Procedure 6 - Other Monitor .

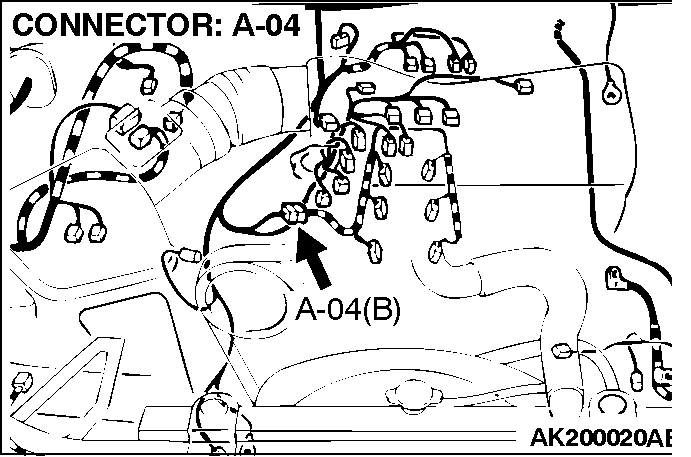

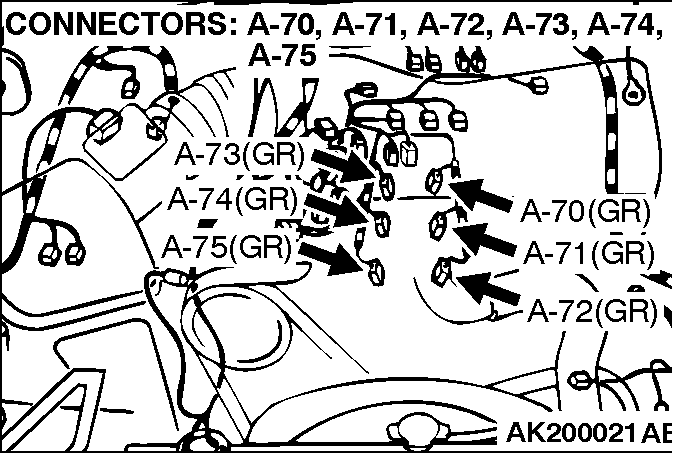

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:
• Injector failed.
• Open or shorted injector circuit, or harness damage or connector damage.
• PCM failed.
