DTC 16 (P0712): Transmission Fluid Temperature Sensor System (Short Circuit)

TRANSMISSION FLUID TEMPERATURE SENSOR SYSTEM CIRCUIT
Refer to .
CIRCUIT OPERATION
Refer to .
DESCRIPTIONS OF MONITOR METHODS
If transmission fluid temperature equals or exceeds specified value, PCM judges that transmission fluid temperature sensor has a failure.
MONITOR EXECUTION
Continuous
MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
• Not applicable

Sensor (The sensor below is determined to be normal)
• Not applicable

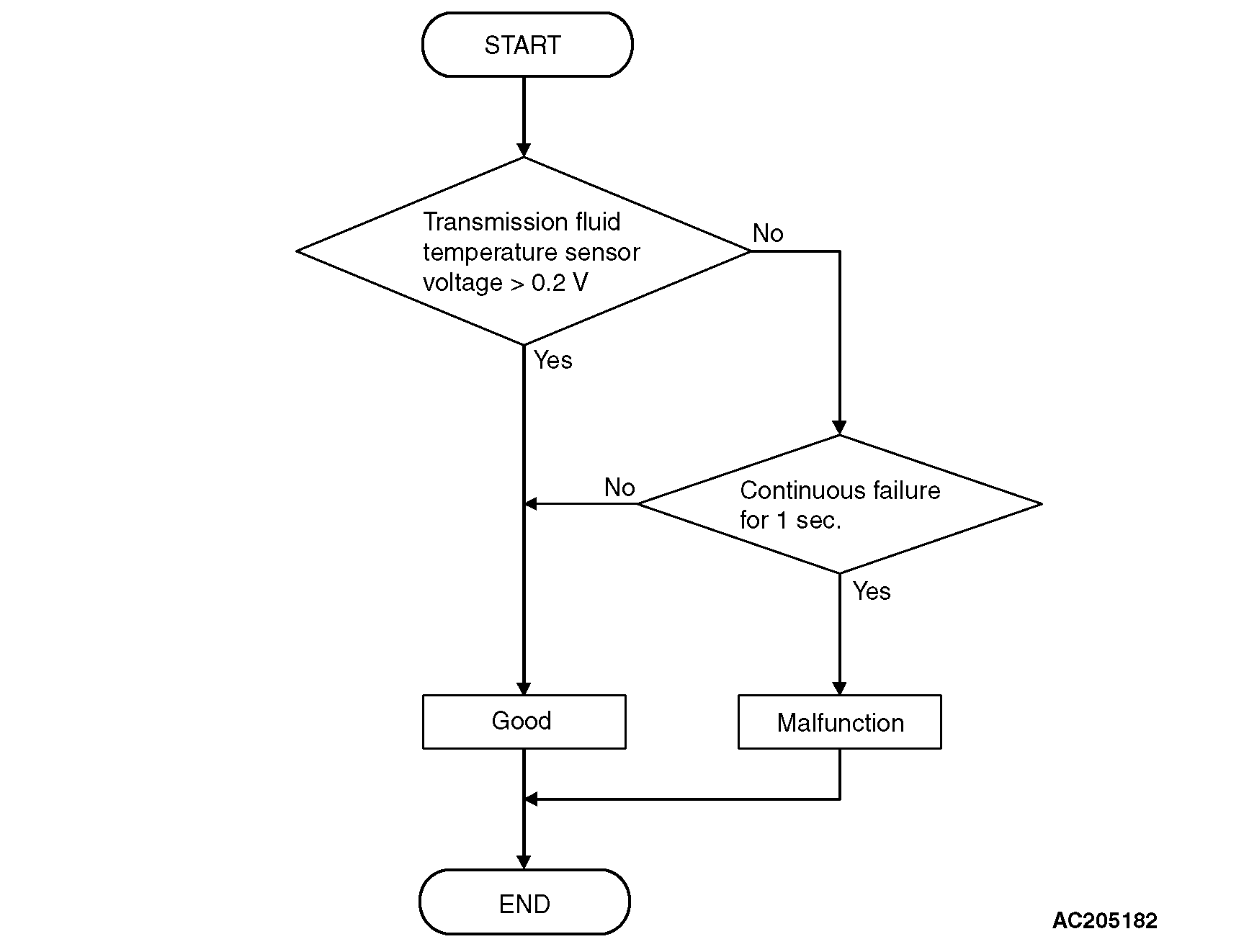

LOGIC FLOW CHARTS (Monitor Sequence)
DTC SET CONDITIONS

Check Conditions, Judgement Criteria
Transmission fluid temperature sensor voltage: 0.2 volt or less. (1 second)
OBD-II DRIVE CYCLE PATTERN
Start the engine, keep the vehicle stopped in "P" range for 5 seconds.
TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CODE TO BE SET ARE:
Malfunction of the transmission fluid temperature sensor circuit
Damaged harness or connector
Malfunction of the PCM
