DTC P0446: Evaporative Emission Control System Vent Control Circuit

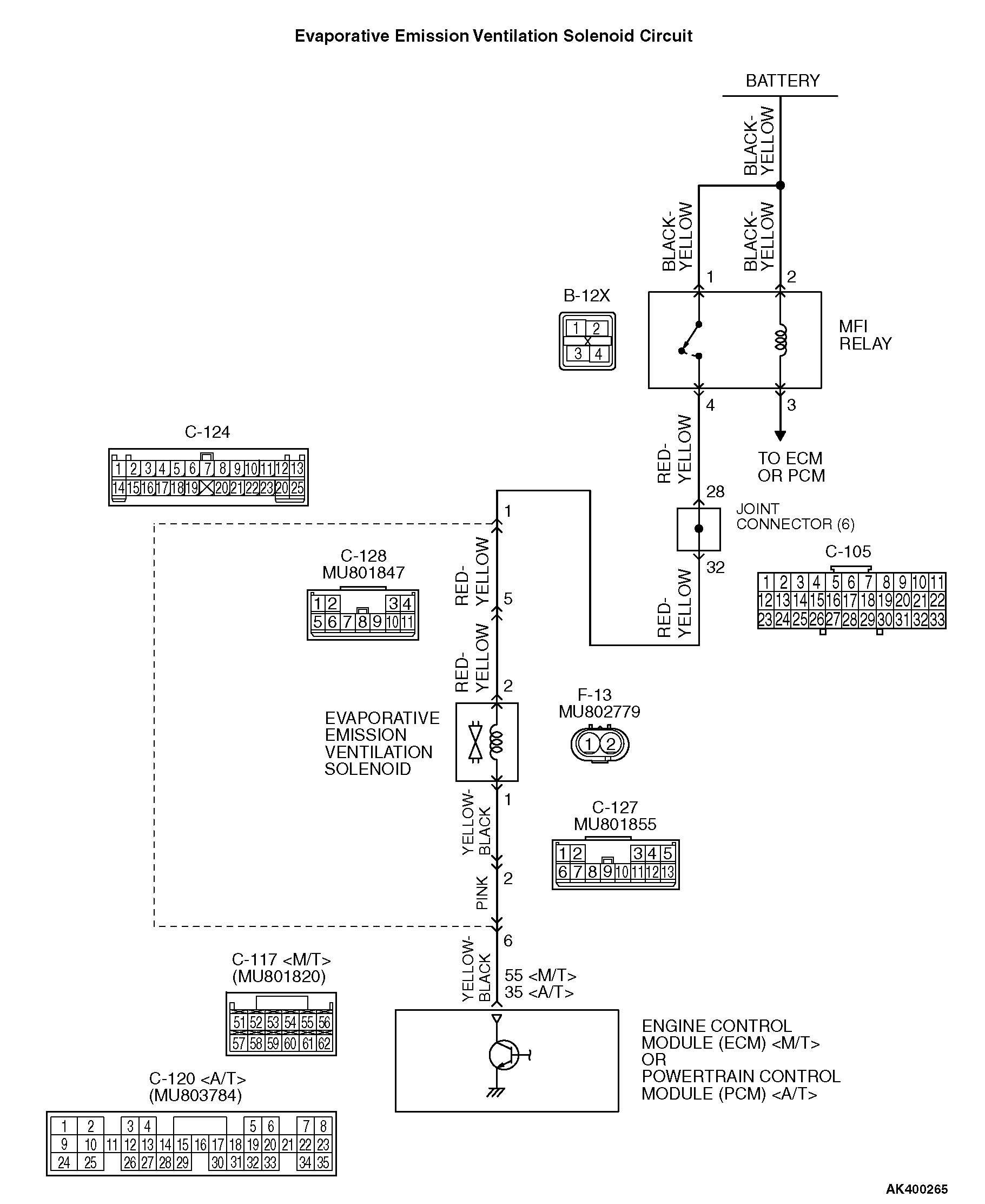

CIRCUIT OPERATION
• The evaporative emission ventilation solenoid power is supplied from the MFI relay (terminal No. 4).
• The ECM <M/T> or PCM <A/T> controls the evaporative emission ventilation solenoid ground by turning the power transistor in the ECM <M/T> or PCM <A/T> ON and OFF.
TECHNICAL DESCRIPTION
• To judge if there is open circuit in the evaporative emission ventilation solenoid drive circuit, ECM <M/T> or PCM <A/T> measures the surge voltage of the evaporative emission ventilation solenoid coil.
• The ECM <M/T> or PCM <A/T> drives the evaporative emission ventilation solenoid. After the solenoid is turned off, the ECM <M/T> or PCM <A/T> will check if the solenoid coil produces a surge voltage of 2 volts or more.
DESCRIPTIONS OF MONITOR METHODS
• If a surge current is not generated in the coil after the evaporative emission ventilation solenoid has been actuated, an open circuit is determined to have occurred.
MONITOR EXECUTION
Continuous
MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
• Not applicable

Sensor (The sensor below is determined to be normal)
• Not applicable
DTC SET CONDITIONS Logic Flow Chart


Check Conditions
Engine is being cranked.
Battery positive voltage is at between 10 and 16.5 volts.

Judgment Criteria
• The evaporative emission ventilation solenoid coil surge voltage (battery positive voltage + 2 volts) is not detected for 0.2 second.
• The ECM <M/T> or PCM <A/T> monitors for this condition once during the drive cycle.

Check Conditions
Battery positive voltage is at between 10 and 16.5 volts.
ON duty cycle of the evaporative emission purge solenoid is 0 percent.
ON duty cycle of the EGR vacuum regulator solenoid valve is 0 percent.
Evaporative emission ventilation solenoid is ON.
More than 1 second has elapsed after the above mentioned conditions have been met.

Judgment Criterion
• The evaporative emission ventilation solenoid coil surge voltage (battery positive voltage + 2 volts) is not detected for 1 second. When the evaporative emission ventilation solenoid is turned OFF.
OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 19 .

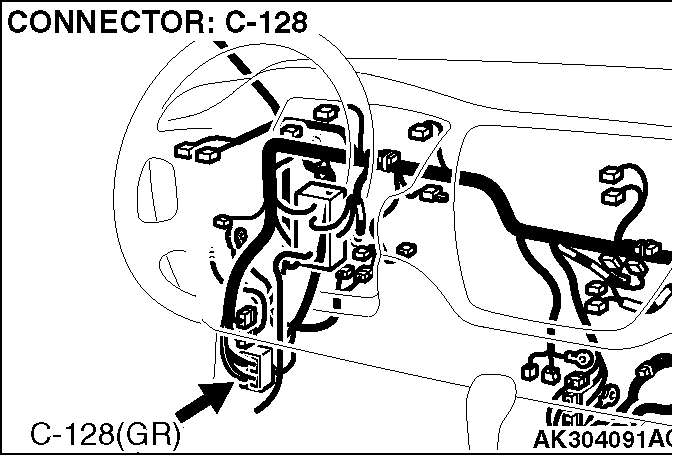

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:
• Evaporative emission ventilation solenoid failed.
• Open or shorted evaporative emission ventilation solenoid circuit, or connector damage.
• ECM failed. <M/T>
• PCM failed. <A/T>
