DISASSEMBLY AND ASSEMBLY

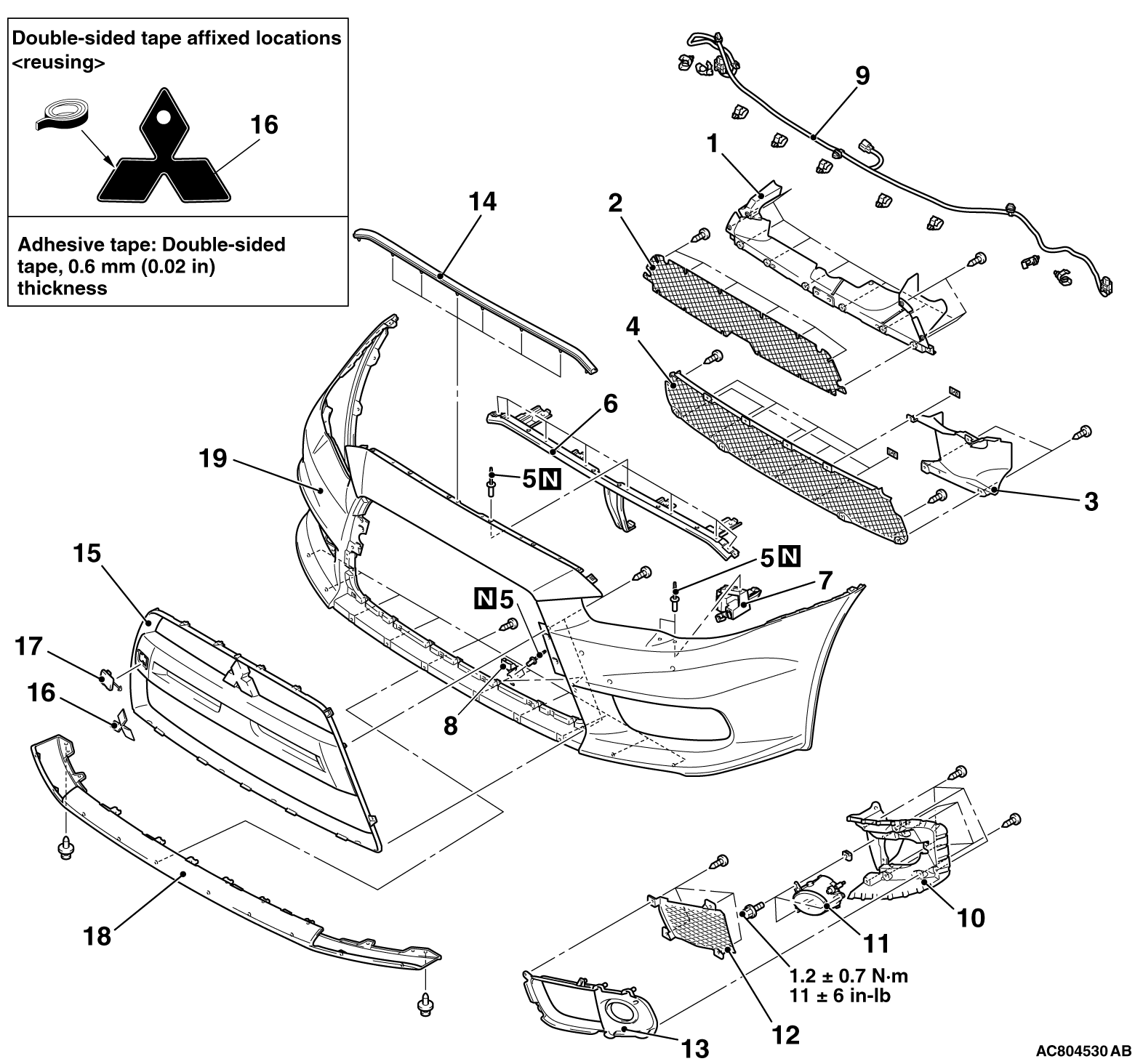

Disassembly steps


1.
 Front bumper grille cover A


2.
 Front bumper net A


3.
 Front bumper grille cover B


4.
 Front bumper net B
<<A>>
 >>A<<
 5.
 Rivet


6.
 Front bumper reinforcement


7.
 Front bumper support


8.
 Front bumper bracket


9.
 Front fog light harness


10.
 Front fog light bracket


11.
 Front fog light assembly


12.
 Front bumper net C


13.
 Front bumper garnish


14.
 Hood weather strip front


15.
 Radiator grille


16.
 Front three-diamond mark


17.
 Front bumper cover


18.
 Air dam skirt panel


19.
 Front bumper face

DISASSEMBLY SERVICE POINT

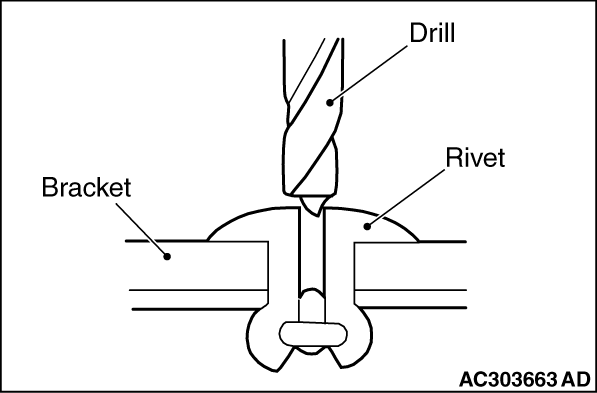

<<A>> RIVETS REMOVAL

Use a drill [(Φ 4.0 mm(0.16 in)] to make a hole in the rivet to break it, and remove the rivet.

ASSEMBLY SERVICE POINT

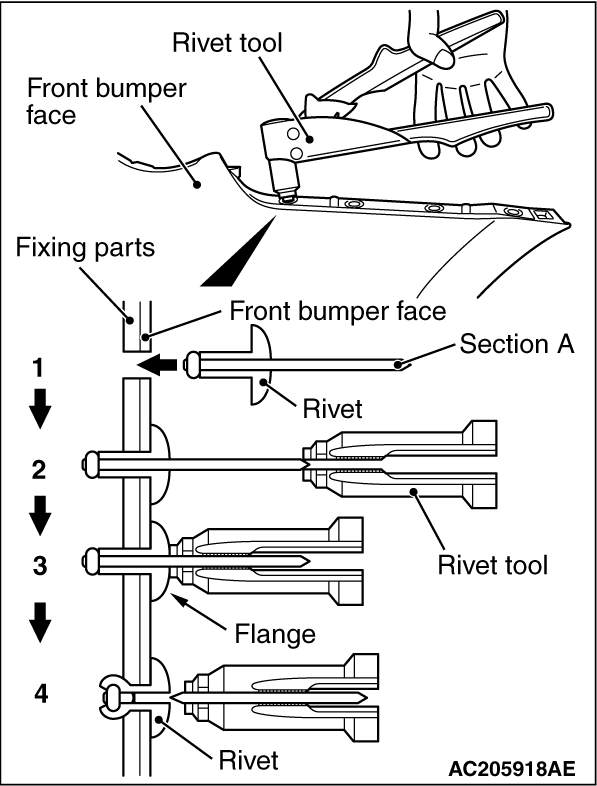

>>A<< RIVETS INSTALLATION

Use a rivet tool to connect the parts with rivets by the following procedures.
1.Insert the rivet into a corresponding location.
2.Set the rivet tool at a section A of rivet.
3.While pushing the flange surface of the rivet onto parts to be fixed with the rivet tool, press the handle of the tool.
4.Thin part of section A of the rivet will be cut off and the parts is fixed in position.
