Inspection Procedure 3: Abnormality in KOS-ECU power supply and ground circuits
| caution |
Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.
|

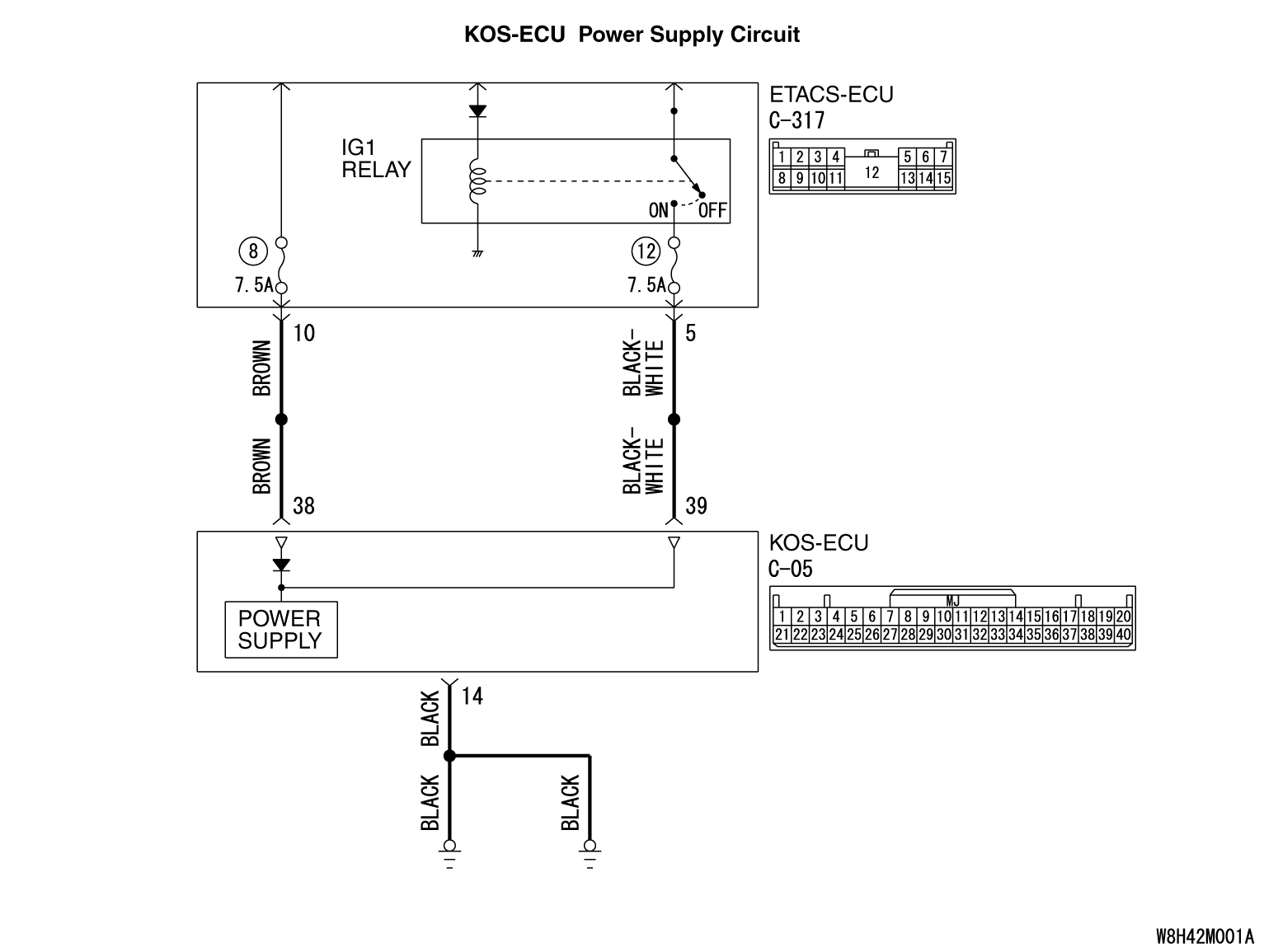

TECHNICAL DESCRIPTION (COMMENT)
If the KOS-ECU does not work at all or if the KOS-ECU cannot communicate with the scan tool, the KOS-ECU power supply or the ground circuit may be defective.
TROUBLESHOOTING HINTS
- Damaged wiring harness and connectors
- Malfunction of KOS-ECU
|
|
Required Special Tools:
- MB992006: Extra fine probe
- MB991223: Harness set
|
|
|
STEP 1. Check KOS-ECU connector C-05 and ETACS-ECU connector C-317 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
|
|
|
Q.
Is the KOS-ECU connector C-05 and ETACS-ECU connector C-317 in good condition?
|
|
|
 Go to Step 2.
|
|
|
|
|
|
 Repair the defective connector.
|
|
|
|
|
|
STEP 2. Check the wiring harness between the KOS-ECU connector C-05 (terminal No.38, 39) and the ETACS-ECU connector C-317 (terminal No.10, 5) for open circuit.
|
|
|
(1)Disconnect KOS-ECU connector C-05 and ETACS-ECU connector C-317, and check the wiring harness.
|
|

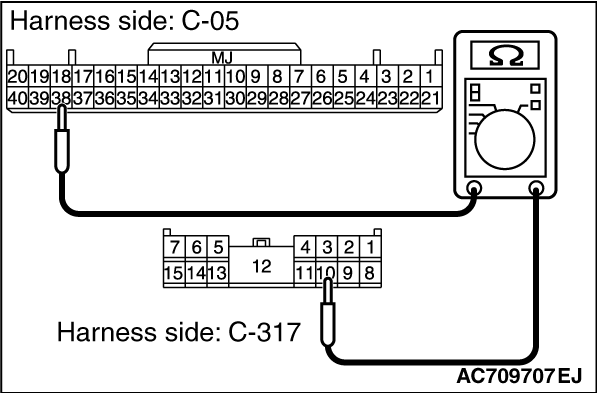

(2)Check the wiring harness between KOS-ECU connector C-05 (terminal No.38) and ETACS-ECU connector C-317 (terminal No.10)
OK: Continuity exists (2 Ω or less)
|
|

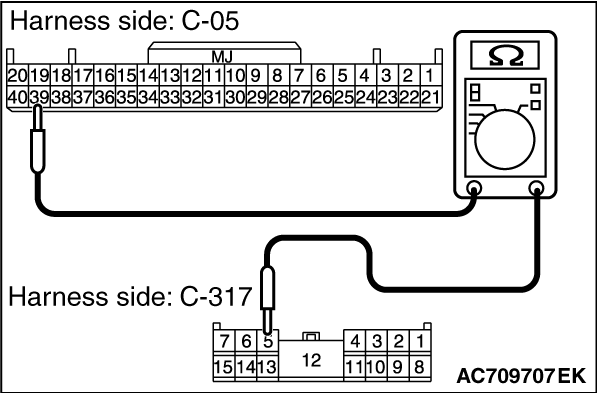

(3)Check the wiring harness between KOS-ECU connector C-05 (terminal No.39) and ETACS-ECU connector C-317 (terminal No.5)
OK: Continuity exists (2 Ω or less)
Q.
Is the wiring harness between KOS-ECU connector C-05 (terminal No.38, 39) and the ETACS-ECU connector C-317 (terminal No.10, 5) in good condition?
Go to Step 3.
Repair the wiring harness between KOS-ECU connector C-05 (terminal No.38, 39) and the ETACS-ECU connector C-317 (terminal No.10, 5).
|
|
|
STEP 3. Check the wiring harness between the KOS-ECU connector C-05 (terminal No.38, 39) and the ground for short circuit.
|
|
|
(1)Disconnect KOS-ECU connector C-05, and check the wiring harness.
|
|

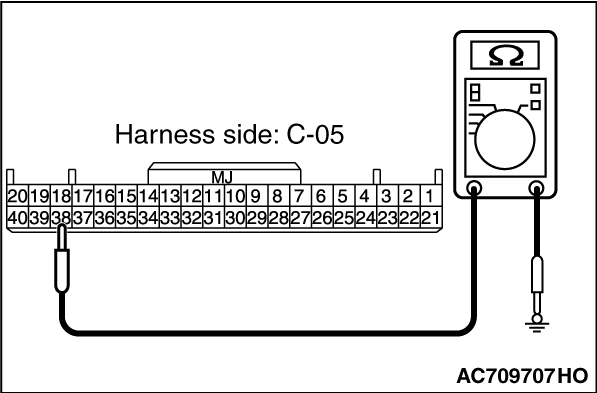

(2)Check the wiring harness between KOS-ECU connector C-05 (terminal No.38) and ground
OK: No continuity
|
|

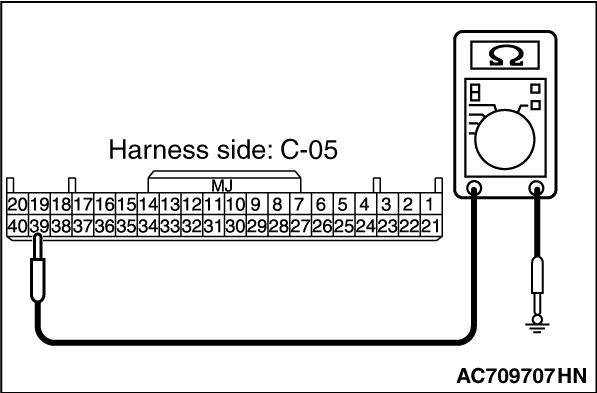

(3)Check the wiring harness between KOS-ECU connector C-05 (terminal No.39) and ground
OK: No continuity
Q.
Is the wiring harness between KOS-ECU connector C-05 (terminal No.38, 39) and the ground in good condition?
Go to Step 4.
Repair the wiring harness between KOS-ECU connector C-05 (terminal No.38, 39) and the ground.
|
|
|
STEP 4. Check the wiring harness between the KOS-ECU connector C-05 and the ground for open circuit.
|
|
|
(1)Disconnect KOS-ECU connector C-05, and check the wiring harness.
|
|

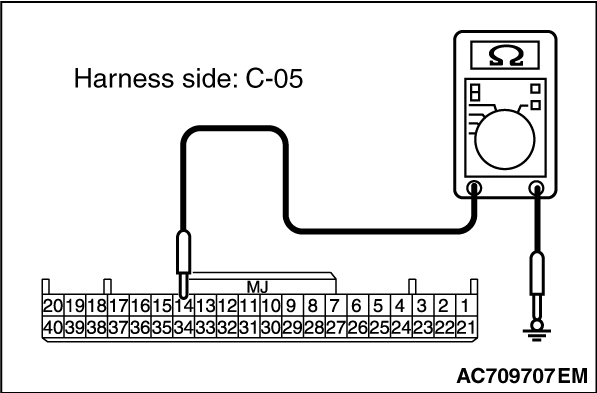

(2)Check the wiring harness between KOS-ECU connector C-05 (terminal No.14) and ground.
OK: Continuity exists (2 Ω or less)
Q.
Is the wiring harness between KOS-ECU connector C-05 and the ground in good condition?
Go to Step 5.
Repair the wiring harness between KOS-ECU connector C-07 and ground.
|
|
|
STEP 5. Retest the system
|
|
|
Q.
Does the abnormality in KOS-ECU power supply and ground circuits in good condition?
|
|
|
The trouble can be an intermittent malfunction (Refer to GROUP 00, How to use Troubleshooting/inspection Service Points - How to Cope with Intermittent Malfunction  ).
|
|
|
|
|
|
Replace KOS-ECU and register the ID codes (Refer to ).
|
|
|
|
)
)
)
)
)
)
)
)
