REMOVAL AND INSTALLATION


caution
  • Do not disassemble or throw the trunk lid gas spring into fire.

  • Punch a hole in the trunk lid gas spring before disposal to release the gas inside.

  • Ensure the trunk lid gas spring piston rod does not come into contact with foreign material.
Post-installation Operation
  • Adjustment of Clearance Around Trunk Lid (Refer to ).
  • Trunk Lid Striker Adjustment (Refer to ).
  • Trunk Lid Height Adjustment (Refer to ).

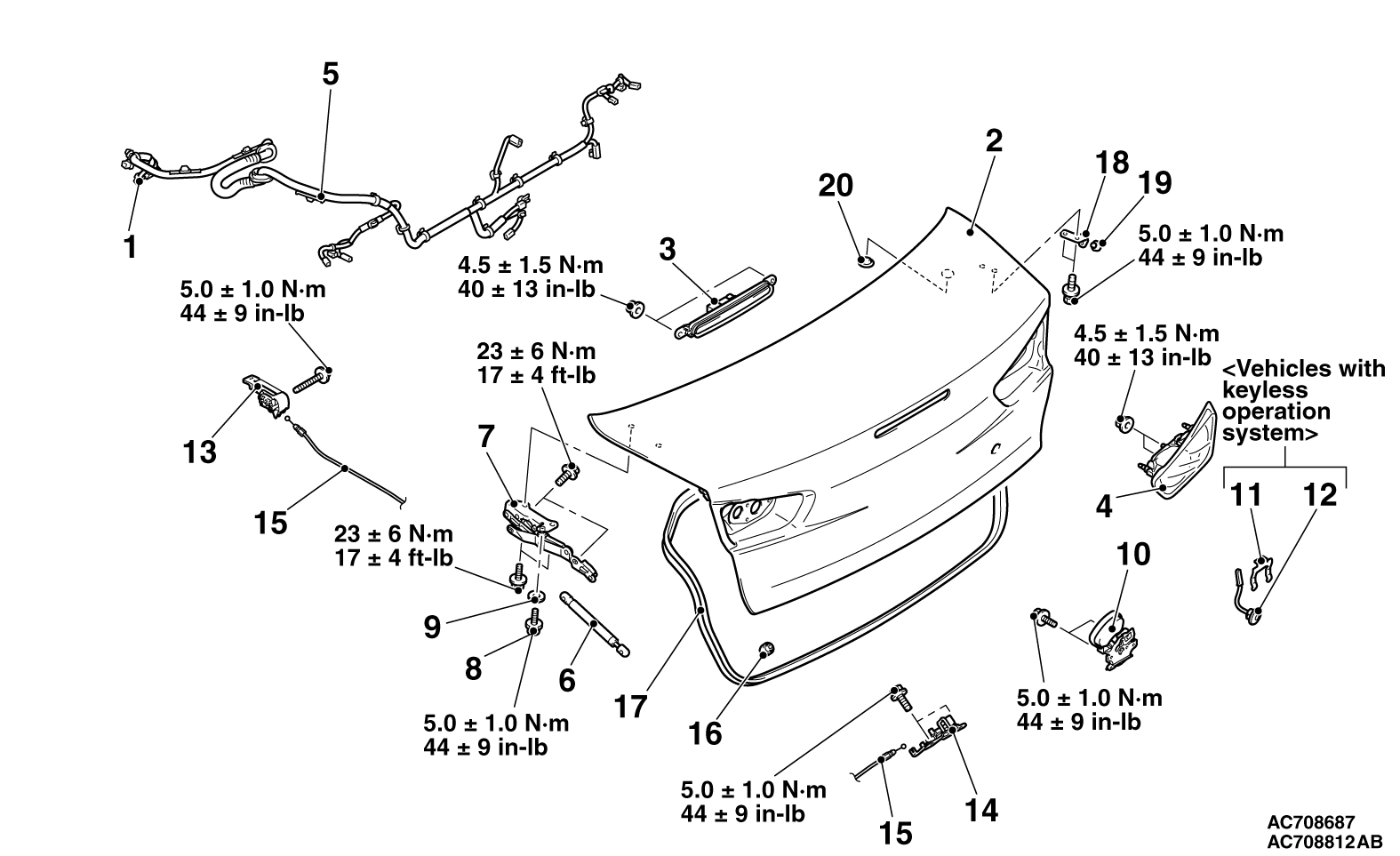

Trunk lid panel assembly, Trunk lid gas spring and Trunk lid hinge removal steps


·
 Trunk room side trim <LH> (Refer to GROUP 52A, Trims .)
<<A>>
1.
 Trunk lid harness connector connection


2.
 Trunk lid panel assembly


·
 Rear spoiler assembly <Vehicles with rear spoiler> (Refer to GROUP 51, Rear spoiler .)


3.
 High mount stoplight (Refer to GROUP 54A, High mount stoplight .)


4.
 Taillight assembly (Refer to GROUP 54A, Taillight .)


·
 Trunk lid trim (Refer to GROUP 52A, Trims .)


5.
 Trunk lid harness
<<B>>
6.
 Trunk lid gas spring


7.

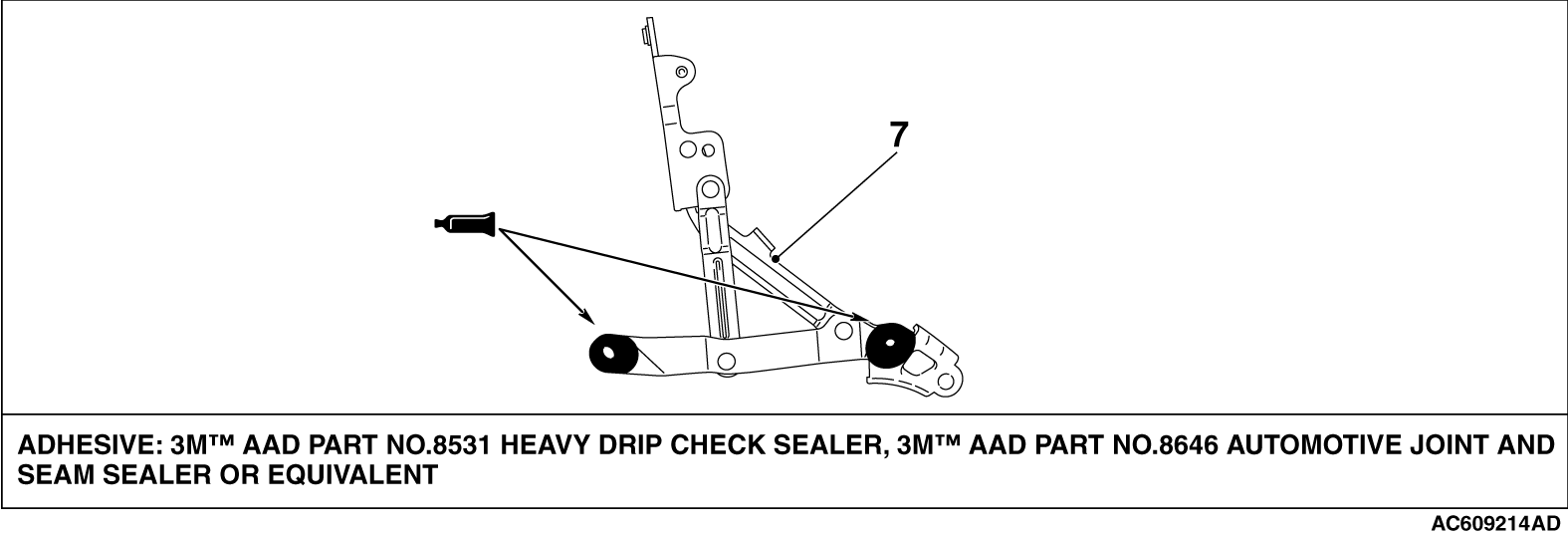

 Trunk lid hinge


8.
 Trunk lid damper


9.
 Washer



Trunk lid latch removal steps


·
 Trunk lid trim (Refer to GROUP 52A, Trims .)


10.
 Trunk lid latch assembly



Trunk lid open switch removal steps <Vehicles with keyless operation system>


·
 Trunk lid trim (Refer to GROUP 52A, Trims .)


11.
 Cylinder lock retainer


12.
 Trunk lid open switch



Trunk lid release handle, Trunk lid release cable and Trunk lid latch striker removal steps


·
 Front scuff plate <LH> (Refer to GROUP 52A, Trims .)


13.
 Trunk lid release handle


·
 Front seat assembly (Refer to GROUP 52A, Front Seat Assembly .)


·
 Rear seat cushion assembly and rear seatback assembly (Refer to GROUP 52A, Rear Seat Assembly .)


·
 Center pillar trim lower, rear end trim and trunk side trim <LH> (Refer to GROUP 52A, Trims .)


14.
 Trunk lid latch striker


15.
 Trunk lid release cable



Damper removal


16.
 Damper



Trunk lid weatherstrip removal

>>A<<
 17.
 Trunk lid weatherstrip



Trunk lid stay damper bracket removal steps


18.
 Trunk lid stay damper bracket


19.
 Trunk lid damper


20.
 Plug

REMOVAL SERVICE POINTS

<<A>> TRUNK LID HARNESS CONNECTOR CONNECTION REMOVAL

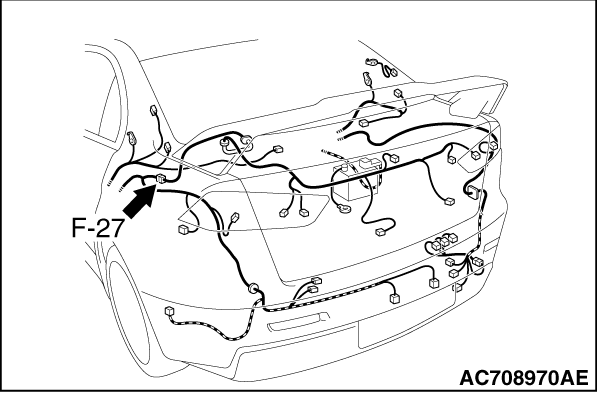

Disconnect the trunk lid harness connector.
Connector number
 Connector name
F-27 (10)
 Connection between the rear floor harness (LH) and trunk lid harness

<<B>> TRUNK LID GAS SPRING REMOVAL

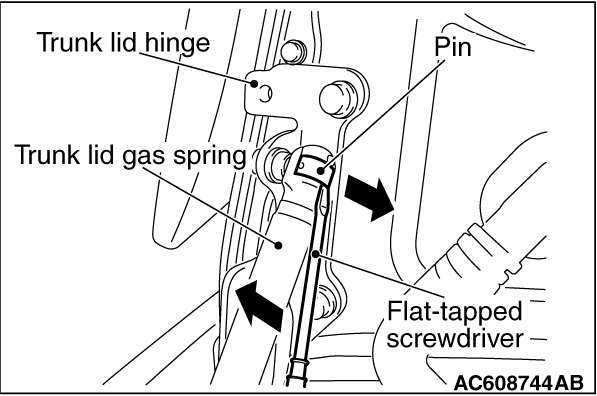

As shown in the figure, slide the pin upward, then remove the trunk lid gas spring in the direction of the arrow to unscrew the trunk lid hinge.

INSTALLATION SERVICE POINT

>>A<< TRUNK LID WEATHERSTRIP INSTALLATION

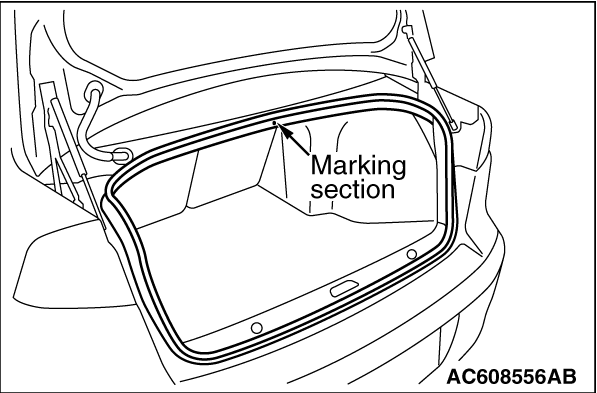

Install the trunk lid weatherstrip so that the marking are aligned with the body center line.
