STEERING ANGLE CHECK

caution After adjusting the steering angle, perform calibration to make the ASC-ECU learn the neutral position of the steering wheel sensor. (Refer to GROUP 35C - On-vehicle Service, Steering Wheel Sensor Calibration .)

1.Check that the wheel alignment is normal. (Refer to GROUP 33 - On-vehicle Service, Wheel Alignment Check and Adjustment (Refer to .)

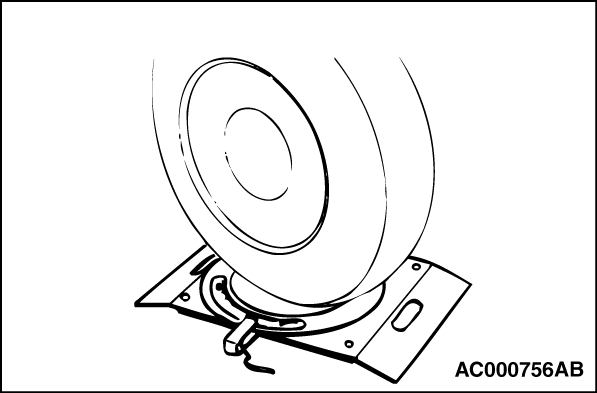

2.Place the front wheel onto the turning radius gauge, and measure the steering angle. Standard value: Inner wheel 33°10’ ± 1°30’ (Left/right deviation within 2°00’) Outer wheel (reference value) 28°10’

3.If the measured value is not within the standard value, adjust the tie-rod ends (right and left), and repeat Steps 1 and 2. 4.If the measured value is not within the standard value after performing Step 3, replace the steering gear and linkage assembly. (Refer to .)
