1.Remove the front caliper assembly and front disk brake, and retain the front caliper assembly with a wire and the like to prevent from falling (Refer to  ). |
) |

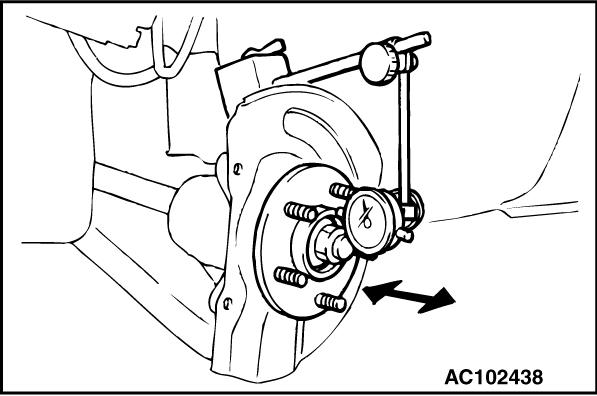

2.Set a dial gauge as shown in the figure. Move the hub in the axial direction and measure the end play. Limit: 0.05 mm (0.002 inch) 3.After checking, install the front brake disk and the front caliper assembly (Refer to ). |
