Required Special Tools:
- MB991958 Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827 M.U.T.-III USB Cable
- MB991910 M.U.T.-III Main Harness A
|
|
|
Using scan tool MB991958, diagnose the CAN bus lines.
|
|
|
Q.
Is the check result normal?
|
|
|
Repair the CAN bus lines. (Refer to GROUP 54C - Troubleshooting .)
After repairing the CAN bus line, go to Step 2.
|
|
|
|
|
|
Check the shift lever diagnostic trouble code. (Refer to .)
|
|
|
Perform the relevant troubleshooting.
|
|
|
|
|
|

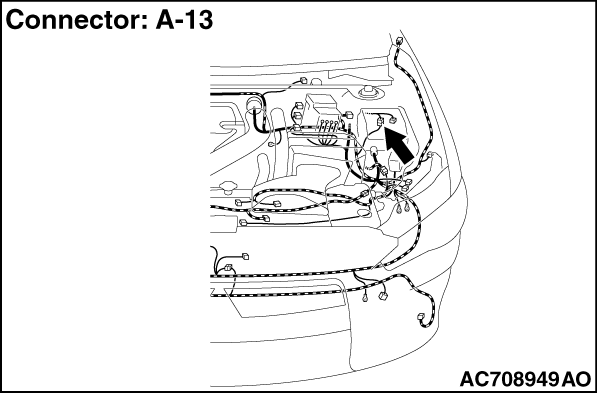

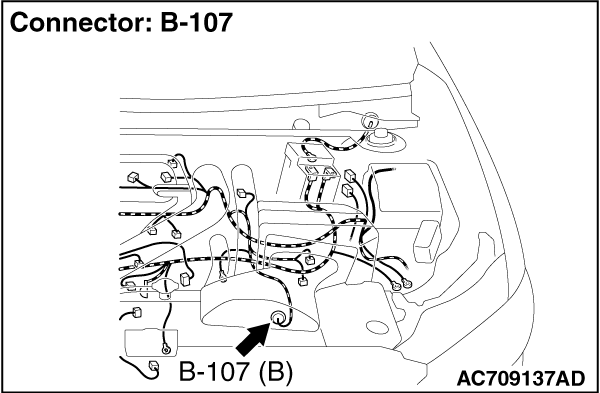

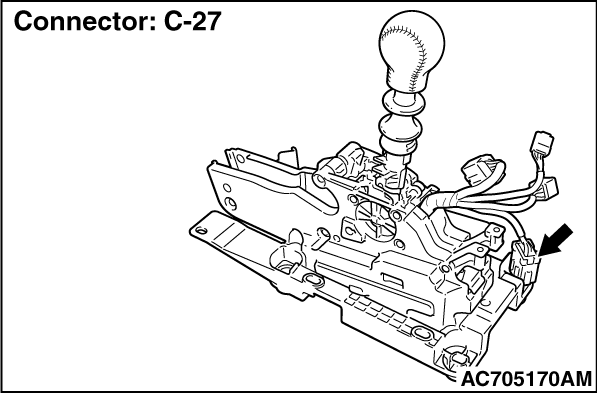

Check for the contact with terminals.
|
|
|
Q.
Is the check result normal?
|
|
|
Repair the defective connector.
|
|
|
|
|
|

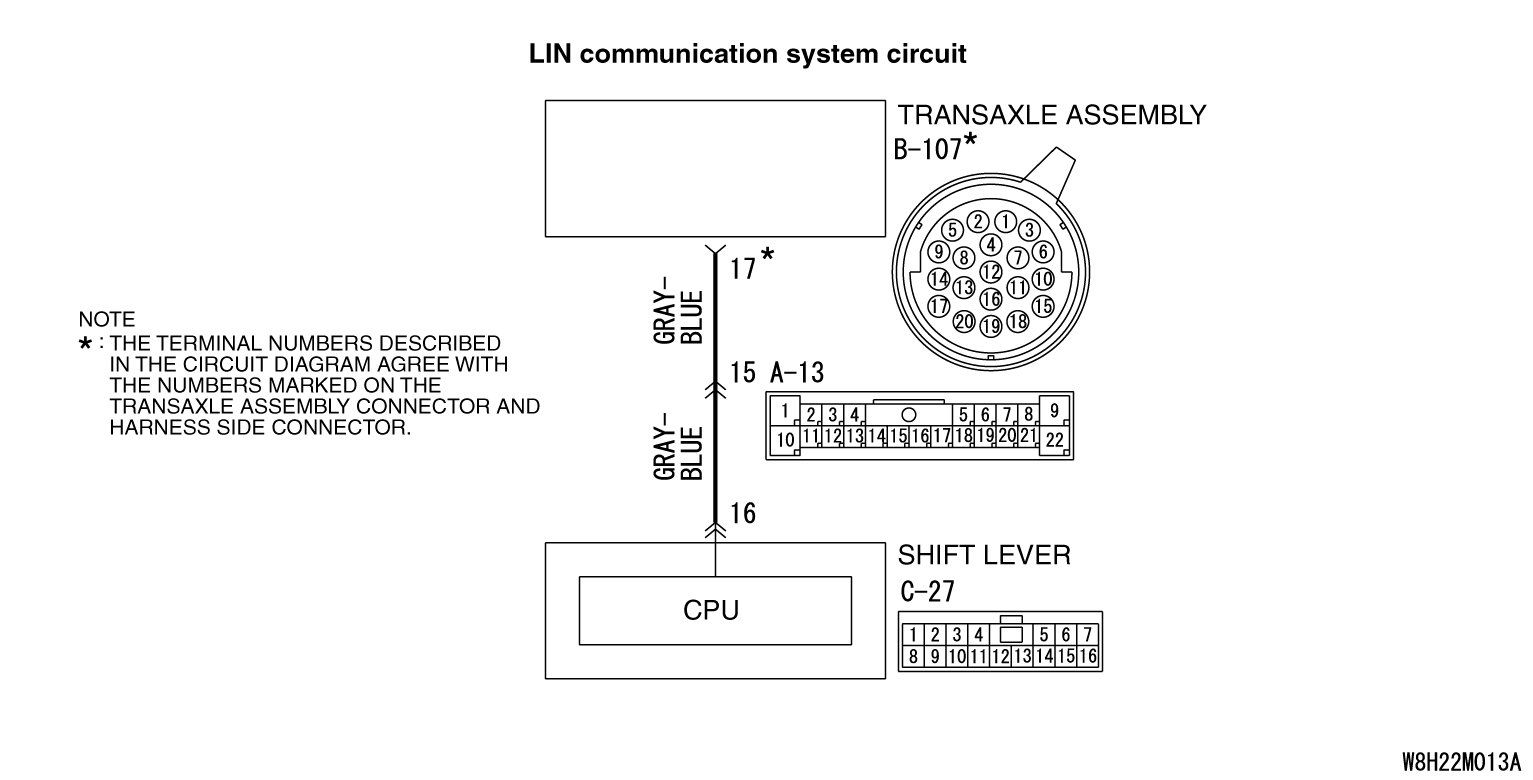

Check the communication line for open and short circuit.
|
|
|
Q.
Is the check result normal?
|
|
|
Repair the wiring harness.
|
|
|
|
|
|
10 seconds after turning ON the ignition switch, check that the DTC is reset.
|
|
|
This diagnosis is complete.
|
|
|
|
|
|
(1)Replace the shift lever assembly. (Refer to .)
|
|
|
(3)After 10 or more seconds have passed with the ignition switch ON position, check
that the DTC is reset.
|
|
|
Replace the transaxle assembly. (Refer to .)
|
|
|
|
|
|
Intermittent malfunction. (Refer to GROUP 00 - How to Cope with Intermittent
Malfunction .)
|
|
|
|
